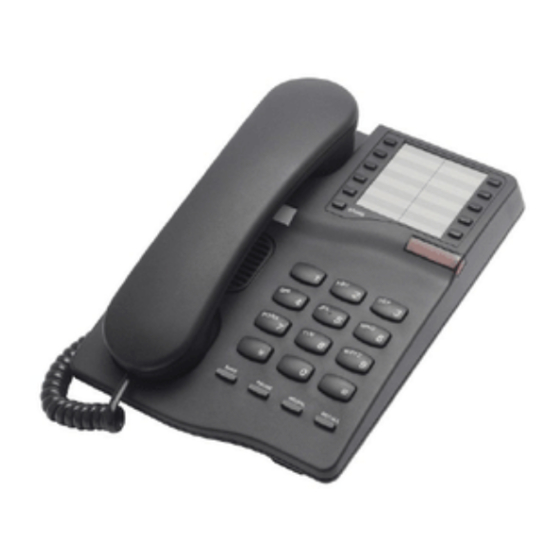

GEMINI SERIES
TELEPHONE
MODEL IQ331
OPERATING INSTRUCTIONS
20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemini IQ331 and is the answer not in the manual?

Questions and answers

Related Manuals for Interquartz Gemini IQ331

Summary of Contents for Interquartz Gemini IQ331

  • Page 1 GEMINI SERIES TELEPHONE MODEL IQ331 OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    1. FEATURES ... 3 2. GENERAL CONTROLS AND INDICATORS ... 4 MULTIFUNCTIONAL INDICATOR LIGHT ... 5 RINGER PITCH CONTROL ... 5 RINGER VOLUME SWITCH ... 5 ALPHA-NUMERIC KEYPAD ... 5 CRADLE SWITCH ... 5 TONE / PULSE SWITCH ... 6 RECALL KEY ...
  • Page 3 LINE CONNECTION ... 15 HANDSET POLARITY SWITCH ... 15 6. GENERAL CARE AND MAINTENANCE ... 16 CLEANING ... 16 FAILURE TO OPERATE AND SERVICE DIFFICULTIES ... 16 7. THUNDERSTORMS ... 17 8. WARRANTY - 3 YEARS ... 17 9. SERVICE CENTRES ... 18...

  • Page 4: Features

    Redial and Pause functions • Save function • Switchable Recall facility with two flash time settings (100mS, 600mS) to suit the host telephone system • Compatible with direct lines, intelligent networks, PABXs and any analog line • Call Waiting compatible •...

  • Page 5: General Controls And Indicators

    2. GENERAL CONTROLS AND INDICATORS STORE HANDSET HANDSET CORD SAVE KEY RINGER PITCH CONTROL RINGER HI / LOW / OFF & TONE / PULSE SWITCHES TIME BREAK RECALL & HANDSET POLARITY SWITCHES PAUSE KEY FIGURE 1 : TOP VIEW FIGURE 1 : BOTTOM VIEW MEMORY MULTIFUNCTIONAL INDICATOR...

  • Page 6: Multifunctional Indicator Light

    RINGER VOLUME SWITCH The three available positions allow selection of OFF (no sound), LOW volume, and HIGH volume of the telephone's ringing sound during an incoming call. ALPHA-NUMERIC KEYPAD The standard numeric digits are available for normal dialing. The alphabetic characters are provided to allow full access to services that require the entering of numerals and letters.

  • Page 7: Tone / Pulse Switch

    BASIC OPERATION This telephone can be used as a normal telephone; lift the HANDSET to answer an incoming call, or lift the HANDSET and dial on the KEYPAD to commence an outgoing call. Please refer to the appropriate sections to learn more about advanced operating instructions.

  • Page 8: Save Key

    SAVE KEY The save key can be used either to save the redial memory by simply pressing the save key after a number is dialed and before hanging up the phone. To use the save key as a notepad during a call: 1.

  • Page 9: Handset Polarity Switch And Using A Headset

    USING A HEADSET A headset may be plugged into the handset socket on the side of the telephone. Headset cords are commonly wired in one of two ways, so this telephone has been equipped with a special switch to ensure compatibility with your headset.

  • Page 10: Advanced Network Operation

    Depending on your telephone system, this may or may not be required. If in doubt, check with your system supplier or Interquartz dealer, as failure to observe your system's requirements may lead to difficulty in making outgoing external calls. If you have determined that a pause is required by your host system, please refer to the PAUSE Function section to ensure correct usage of the PAUSE button.

  • Page 11: Memory Feature Operation

    MEMORY RETENTION The telephone is capable of retaining its memory contents for up to 5 YEARS even when the telephone line had been disconnected.The telephone can retain its memory contents for up to 30 minutes when unplugged from its line cord.

  • Page 12: Installation

    LOCATION The telephone should be placed on a desk, table or shelf where it is not likely to be pushed off. If the unit is to be wall mounted, it should be seated securely on the WALL MOUNTING BRACKET.

  • Page 13: Wall Mounting

    (Figure 2) to reverse the HANDSET RETAINER. 3. NOTE: The WALL MOUNT BRACKET and MODULAR WALL JACK illustrated in (Figure 2) are available from your authorised Interquartz dealer and can be ordered as "Wall Mount Kit No.3". 1. Use your thumb to press the HANDSET RETAINER 3.
  • Page 14 FIGURE 2 : WALL MOUNT BRACKET...
  • Page 15 MOUNTING HOLE "F" Please note: 1. This wall bracket may be secured onto the wall by using mounting holes "E" and "F" 2. Lugs to break off before wall mounting the phone. TELEPHONE MODELS IQ 90 IQ 150 IQ 250...

  • Page 16: Line Connection

    LINE CONNECTION This telephone is supplied with a RJ45 Plug as the wall plug, with the centre pair being reserved for speech and signaling. Other types of plugs and cords are available on request. HANDSET POLARITY SWITCH Located on the underside of the telephone, this switch provides compatibility with the...

  • Page 17: General Care And Maintenance

    If a fault occurs, try to determine if the fault is with the telephone, or with the network or system to which the telephone is connected : Disconnect the "suspect" telephone, and test the line with a substitute telephone.

  • Page 18: Thunderstorms

    This guarantee is in addition to all other Warranties or Guarantees expressed or implied by the Trade Practices Act or other Commonwealth or State laws and all other obligations and liabilities on the part of Interquartz (A'Asia) Pty. Ltd.

  • Page 19: Service Centres

    9. SERVICE CENTRES Please call 1800 6 IQTEL (1800 647 835) from anywhere in Australia to arrange service or repair of your telephone.
  • Page 20 Manufactured by International Quartz Limited A Subsidiary of Chiaphua Industries Ltd. ©Copyright INTERNATIONAL QUARTZ LTD. 2002 3CT30001-03B...

Table of Contents
