FLIR DBD34TLP Quick Start Manual

Contents

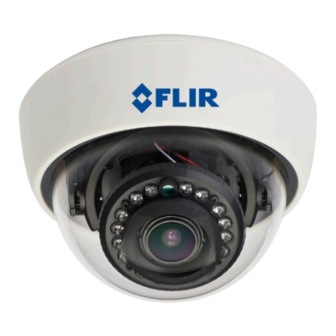

1 x Indoor IR Dome
Camera with Varifocal Lens
3 x Mounting Screws
1 x Dome Cover Key
3 x Drywall Anchors
WARNING - A REGULATED 12V DC power supply is REQUIRED for use
with this camera. Use of a non-regulated, non-conforming power supply
can damage this product and voids the warranty.
Features
• 700 TVL Resolution, 1/3" 960H Image Sensor
• True Day / Night with Mechanical ICR
• 2.8-12mm Varifocal Lens
• 65ft (20m) IR Night Vision*
• 3 Axis Design for Wall / Ceiling Mount
• 12V DC Operation
* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on
the camera application
ATTENTION - This camera includes an Auto Mechanical IR Cut Filter.
When the camera changes between Day/Night viewing modes, an
audible clicking noise may be heard from the camera. This clicking is
normal, and indicates that the camera filter is working.

Safety Precautions

• This camera is for indoor use only.
• Use an appropriate low voltage power cable to prevent fire or
electrical shock.
• Make sure to install the camera in an area that can support
the camera weight.
• There are no user serviceable parts inside the camera. Please
do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning material.
Please use a soft cloth to clean the lens cover.
IT'S ALL ON THE WEB!
Product Information
Specification Sheets
Quick Start Guides
User Manuals
Latest News Video Tutorials & Demos
VISIT
flir.com/security/support
FLIR Systems, Inc.
Copyright © 2015
As our products are subject to continuous improvement, FLIR Systems,
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE
700TVL VARIFOCAL
IR DOME CAMERA
MODEL: DBD34TLP

QUICK START GUIDE

English Version 1.0
