FLIR DBV53TL Quick Start Manual

Contents

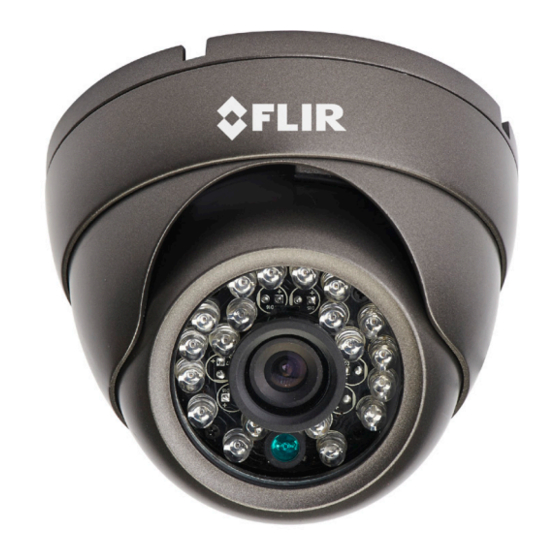

Ultra Resolution Outdoor IR
Dome Camera
4 x Mounting Screws
4 x Drywall Anchors
WARNING - A REGULATED UL / CSA APPROVED 12V DC power
supply is REQUIRED for use with this camera. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.
Features
• 700 TVL Resolution, 1/3" 960H Image Sensor
• True Day/Night with Mechanical ICR
• 3.6mm Wide Angle Lens
• Cold Climate Capability (Operates to -22°F/ -30°C)
• 65ft (20m) IR Night Vision*
• IP66 Weatherproof Rating**
• 3-Axis Design for Wall/Ceiling Mounting
• 12V DC Operation
* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on
the camera application
** Not intended for submersion in water. Installation in a sheltered
area is recommended.

Safety Precautions

• Use an appropriate low voltage power cable to prevent
fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens cover.
IT'S ALL ON THE WEB!
Product Information Specification Sheets
Quick Start Guides
User Manuals
Latest News Video Tutorials & Demos
VISIT
www.flirsecurity.com/pro
FLIR Systems, Inc.
Copyright © 2014
As our products are subject to continuous improvement, FLIR Systems,
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE
700TVL OUTDOOR
IR DOME CAMERA
MODEL: DBV53TL

QUICK START GUIDE

English Version 1.0
