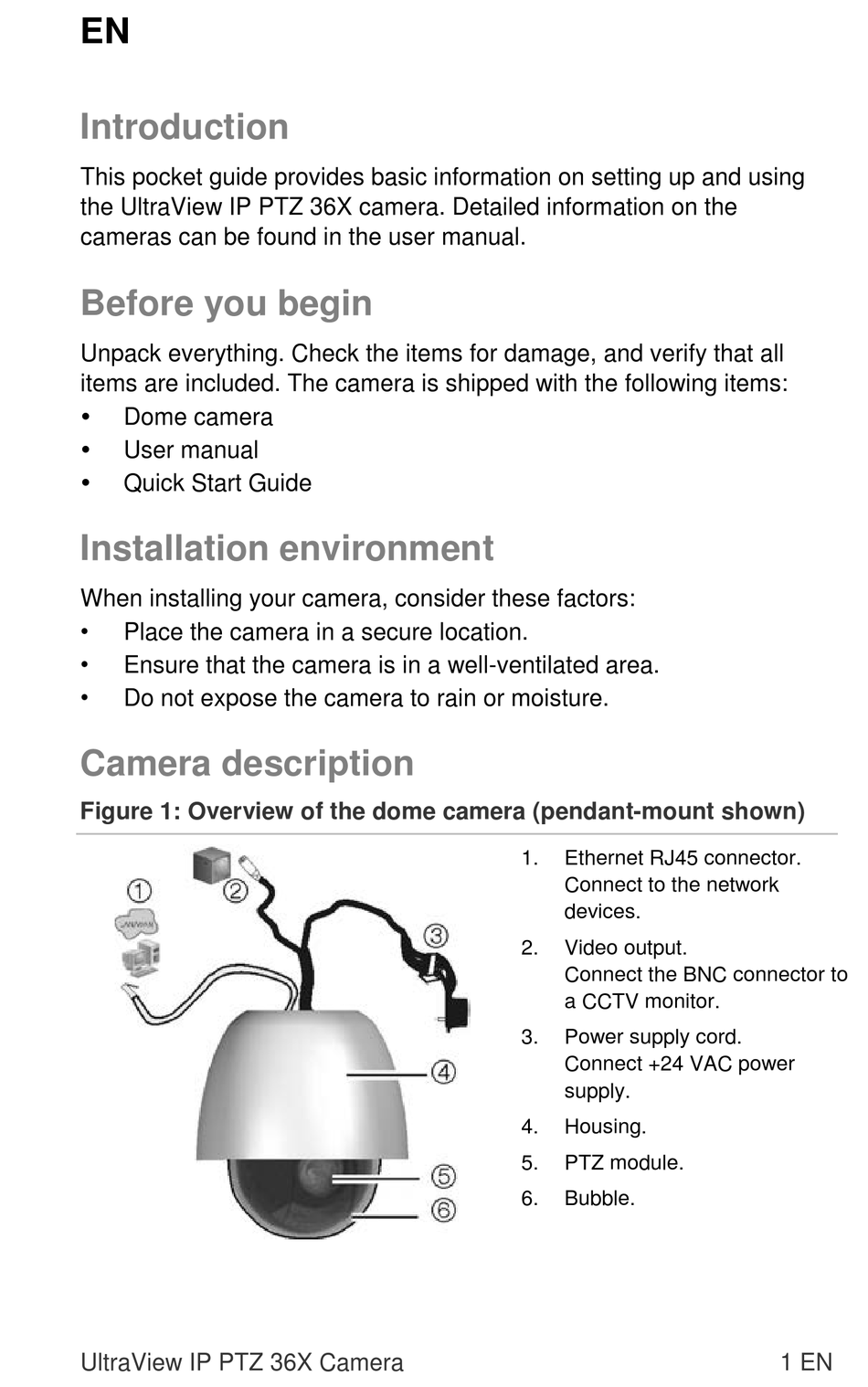

Introduction
This pocket guide provides basic information on setting up and using
the UltraView IP PTZ 36X camera. Detailed information on the
cameras can be found in the user manual.

Before you begin

Unpack everything. Check the items for damage, and verify that all
items are included. The camera is shipped with the following items:

Dome camera

User manual

Quick Start Guide

Installation environment

When installing your camera, consider these factors:
• Place the camera in a secure location.
• Ensure that the camera is in a well-ventilated area.
• Do not expose the camera to rain or moisture.

Camera description

Figure 1: Overview of the dome camera (pendant-mount shown)
UltraView IP PTZ 36X Camera
1. Ethernet RJ45 connector.
Connect to the network
devices.
2. Video output.
Connect the BNC connector to
a CCTV monitor.
3. Power supply cord.
Connect +24 VAC power
supply.
4. Housing.
5. PTZ module.
6. Bubble.
1 EN
