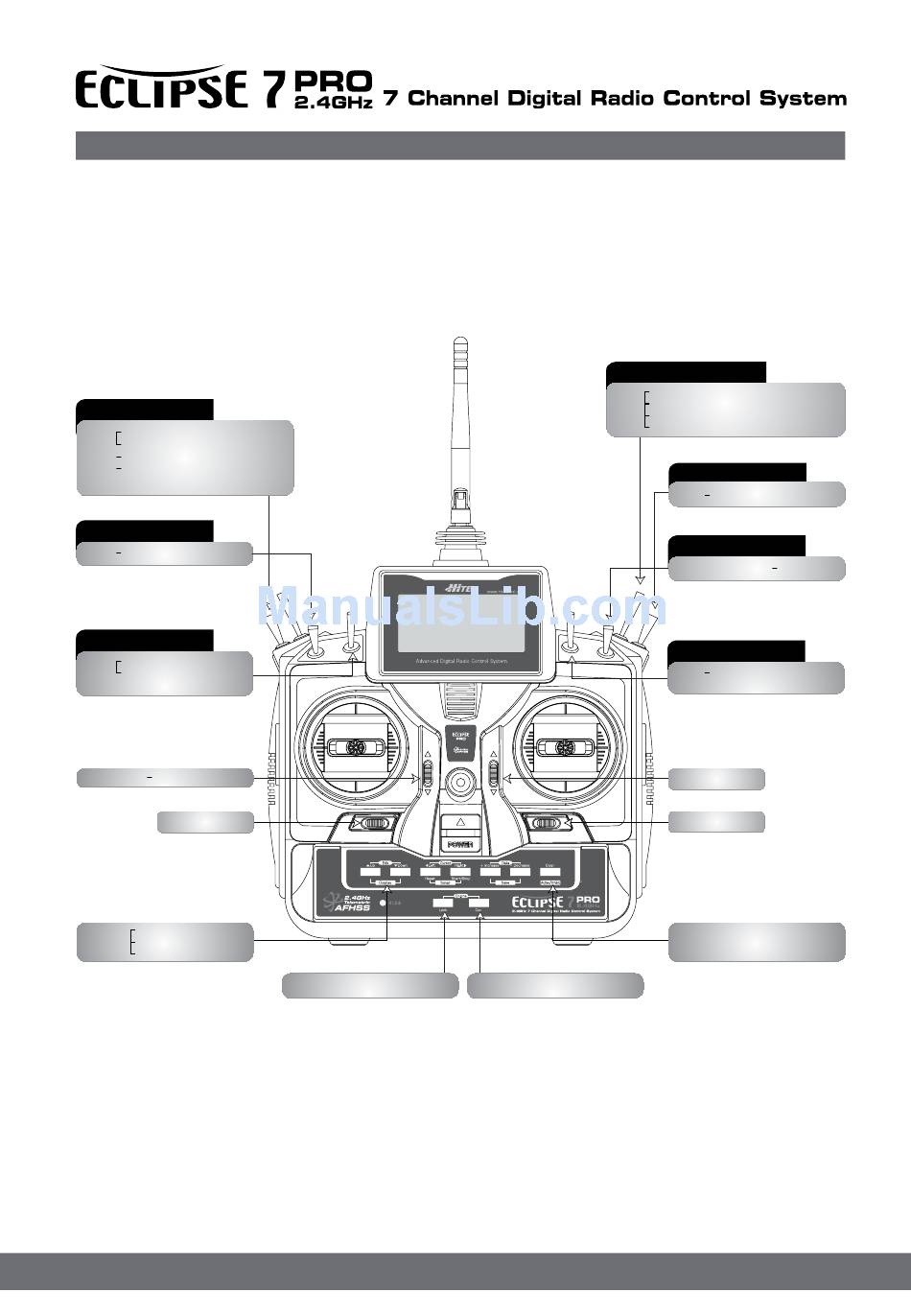

Eclipse 7 Pro Helicopter Controls and Switch Assignments
Flight Mode Switch
HELI
Rudder to Throttle Mix
Normal Trim, D/R, EXP, Throttle Curve
Idle Up 1 trim, D/R, EXP, Throttle Curve
Idle up 2 Trim, D/R, EXP, Pitch Curve
Elev. D/R
HELI
Elevator D/R
Rudder D/R
HELI
P-MIX2 ON/OFF
Rudder D/R
ACRO/HELI
Throttle Trim
Rudder trim
Select to
Voltage
Trim Data
Model Name
ACRO/HELI
Engine Low Position Hold
54
Flight Condition Switch
HELI
Acro/HELI
Engine Cut Off
Throttle Hold
Condition 3 Trim, D/R, EXP(Ail, Elev, Rudd)
Gyro Gain
Hold pitch Curve
Gear
HELI
P-Mix 1 ON/OFF
Ail. D/R
ACRO/Glider/HELI
Aileron D/R
CH7 Switch
HELI
CH 7 Control
(Heading lock ON/OFF)
Elevator Trim
Aileron Trim
Integral Timer Data Reset
