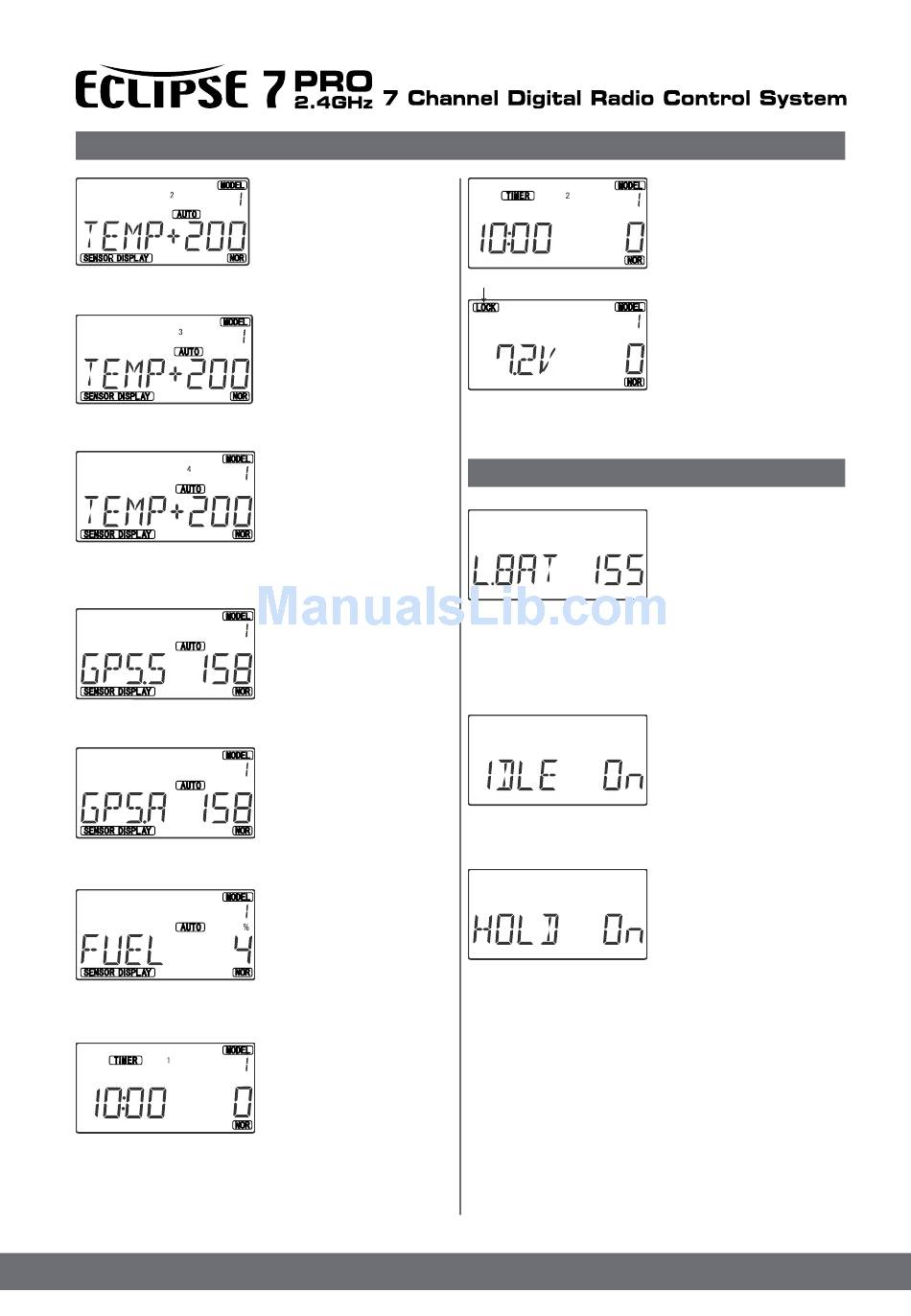

Warning Displays - HITEC Eclipse 7 Pro Instruction Manual

Telemetry system Information
second TEMP sensor information.
TEMP sensor information.
This is showing fourth TEMP sensor information.
GPS SPEED
GPS ALTITUDE
FUEL
DUAL TIMER
You can find out first TIMER of the DUAL TIMER that seeing
small numeral 1 in the display . you may move to second
TIMER pressing UP or Down button.
As you see to left diagram, this
information coming from HTS-
SS BLUE ,HTS-SS temperature
sensor second slot.
You can see small numeral 2 in
the display This is showing
As you see to left diagram, this
information coming from HTS-
SS BLUE ,HTS-SS temperature
sensor third slot.
You can see small numeral 3 in
the display This is showing third
As you see to left diagram, this
information coming from HTS-
SS BLUE ,HTS-SS temperature
sensor fourth slot.
You can see small numeral 4 in
the display
You can check the Speed of
your aircraft using HTS-SS
BLUE, HTS-SS with HTS-GPS
. GPS Speed value appears in
lower right in the display . GPS
Speed range is 0 to 999 Km/h.
You can check the Altitude of
your aircraft using HTS-SS
BLUE, HTS-SS with HTS-GPS.
GPS Altitude value appears in
lower right in the display. GPS
Altitude range is 0 to 999m
you can check the fuel amount
of your model using HTS-SS
with HTS-FUEL, fuel level can
be checked by appears numeral
0 to 4.(this function only can use
HTS-SS. HTS-SS BLUE cannot
provide this function)
Pressing the two Timer button at
the same time that
gives the Timer display .you can
start the timer pressing Start
button . Stop and Reset also
same function as like key name.
LOCK indicator
ensure you don't accidentally give throttle. It is shown by the
LOCK indicator

Warning Displays

each time you charge the system, you will have a good idea of
how long you can safely operate.
WHEN THE BEEPER SOUNDS, LAND YOUR MODEL AS
SOON AS POSSIBLE BEFORE LOSS OF CONTROL DUE
TO A DEAD TRANSMITTER BATTERY
the Flt. Mode switch back. For your safety, the transmitter will
not broadcast until this alarm is ended.
programed. You can turn this off by moving the Flt. Cond.
Switch back. For your safety, the transmitter will not broadcast
until this alarm is ended.
