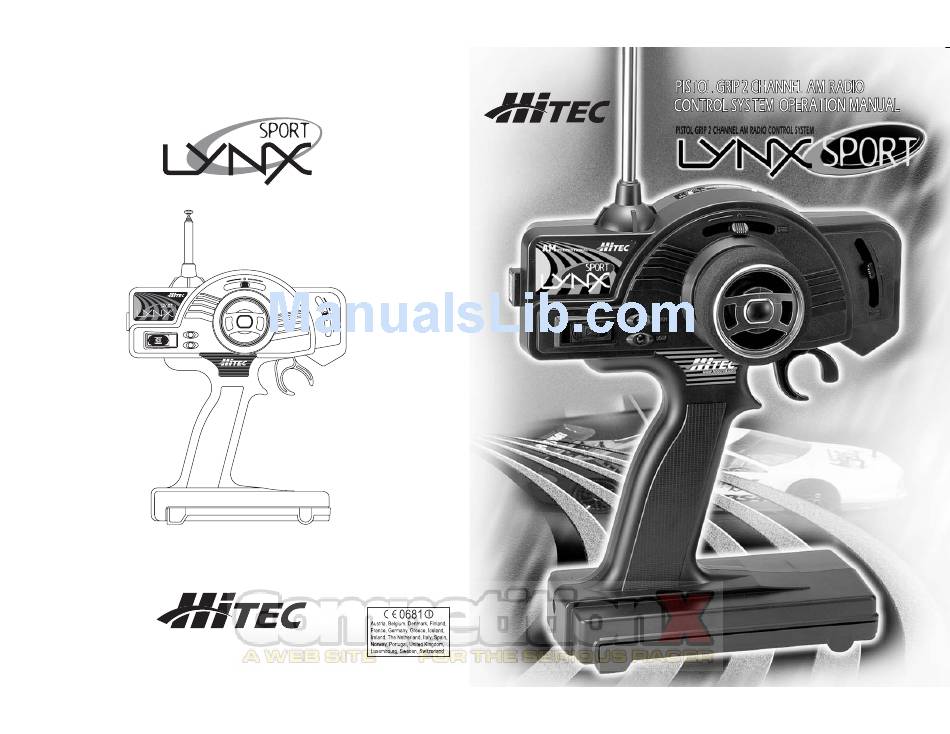

- Page 1 www.hitecrcd.com STEE. PRO PO RTIO NAL HIGH THRO. www.hitecrcd.com Ergonomic Pistol Grip Design Ergonomic Pistol Grip Design 2 Channel AM Proportional System 2 Channel AM Proportional System 2 Channel Servo Reversing Switches 2 Channel Servo Reversing Switches 2 LED Battery Status Indicator 2 LED Battery Status Indicator Nicad Battery Charging Jack Nicad Battery Charging Jack...
- Page 2 Table of Contents I. Introduction Thank you for purchasing the Lynx Sport, 2 Channel, Pistol Grip, and AM Radio Control System. The Lynx Sport Radio is made of high quality, technically advanced components I. Introduction designed to achieve top performance from your RC vehicle. Team up with Hitec Racing II.
- Page 3 Recharging Nicd Batteries The Lynx Sport is equipped with an external-charging jack so there is no need to remove the batteries from the transmitter to charge them. The Hitec CG-22 or CG-25A charger can be used to charge the batteries 1.
- Page 4 Connection with Electronic Speed Control www.hitectce.com Electronic Speed Controls such as the Hitec SP-520 Plus, have a built in B.E.C. system inside the speed control circuit. Plug the receiver connector from the speed control into the "THROTTLE" or #2 channel on the receiver, and the steering servo into the "STEERING"...
- Page 5 - Check to see if both servos and/or speed control are working properly. If not, check the connections and/or make sure the main battery pack is charged. - Check to see if the servos are moving in the correct direction. If not, change the PRO PO RTIO NAL servo-reversing switch located on the top of the transmitter to achieve the correct direction.
- Page 6 - Using Electronic Speed Control - Using Throttle Servo for Gas Powered Vehicles - Set the throttle trim in the center then adjust the ESC neutral point, the throttle trim can be Gas powered vehicles require the throttle servo to be set up to operate the carburetor and the used for fine tuning adjustments.
