Install The Hardware - Axis M3113-R Installation Manual

Page 12

Install the hardware

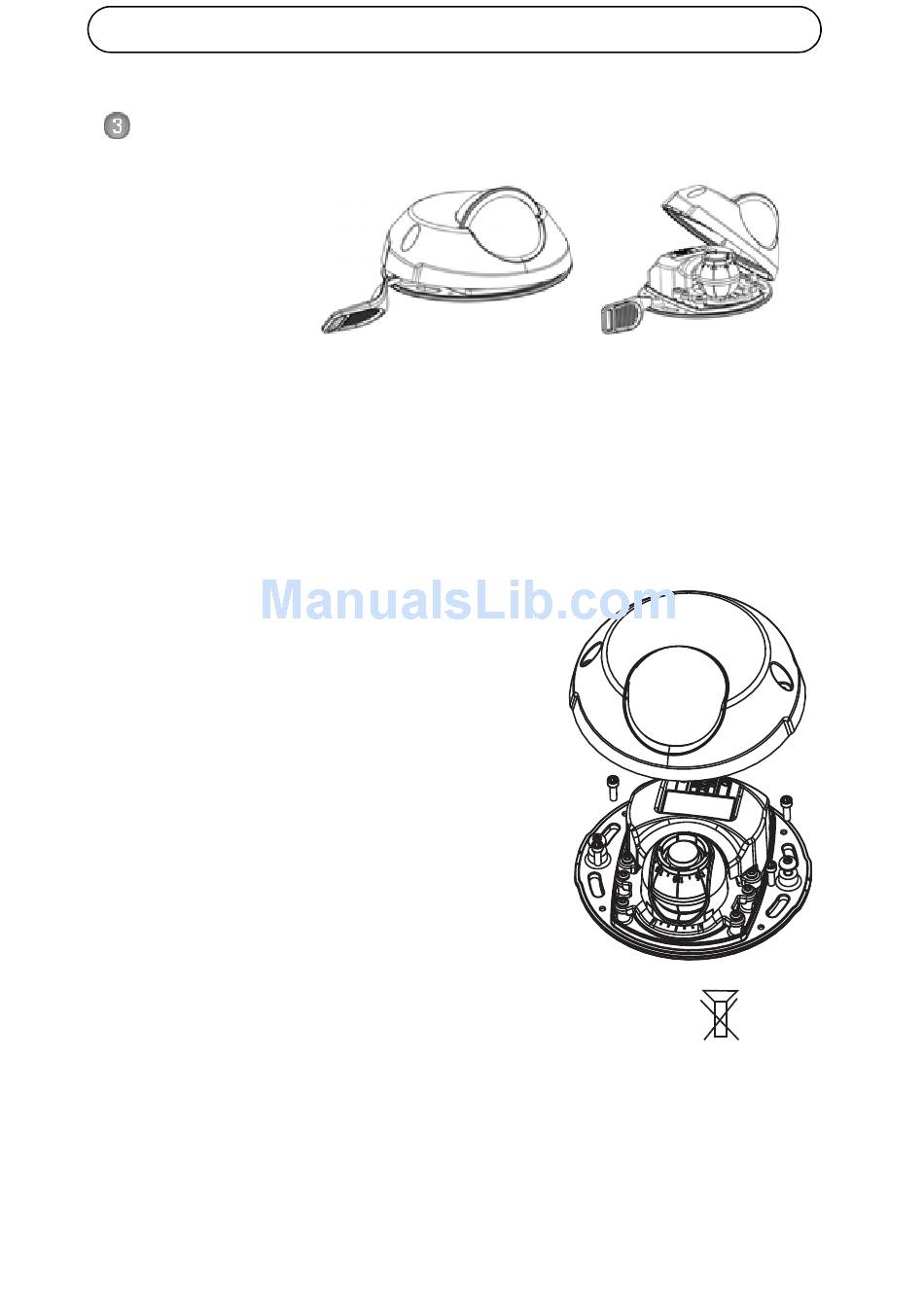

1. Remove top
cover from
the camera
unit by
loosening the
2 screws.
Insert the top
cover tool
into the slit in
the bottom
cover and lift.
2. Depending on the kind of installation required, follow the
appropriate instructions below.
Mount the camera without adaptor
1. Adjust the drill template on the
mounting surface so the camera's lens
faces the right direction, and drill four
holes for the screws, and one hole for
the cable.
2. Align the screw slots in the camera
with the screw holes in the mounting
surface, and attach the camera with 4
screws.
Note:
It is recommended that each screw
head with the washer does not exceed 5mm
in height and 7mm in diameter.
Do not use a countersunk screw head.
3. Attach the network cable to the
camera's Ethernet cable.
AXIS M31 Network Camera Series
