AXIS M31 Network Camera Series

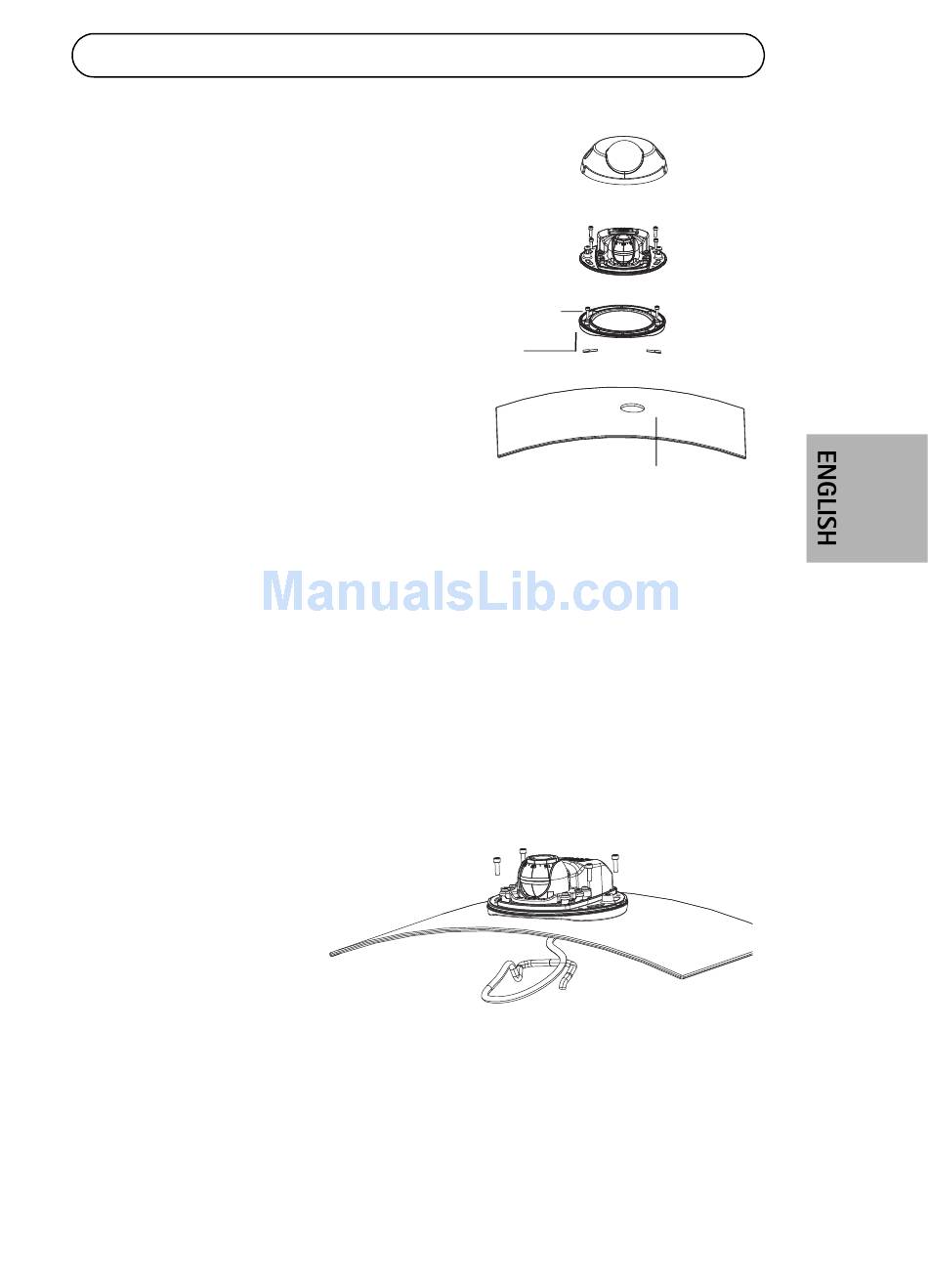

Mount on a curved surface
with an adaptor
1. Place the adaptor on the
curved mounting surface,
align the two curvatures,
and mark the two screw
holes if drilling is required.
2. Remove protective paper
from the adhesive tabs on
the adaptor by pulling the
ends.
3. Place the adaptor in position
and press down on the
adhesive tabs.
Note:
Fasten the adaptor to the surface with two screws if the adhesive
tabs do not stick to the surface material.
4. Place the drill template on the adaptor and turn the camera lens in
the direction you want the camera to point.
5. Adjust template to align screw holes with the adaptor's screw holes.
6. Mark the cable hole, and mark the four screw holes if drilling is
required.
7. Drill the cable hole, and if required, 4 holes for the screws.
8. Route the
camera's Ethernet
cable through the
hole.
9. Place the camera
on the adaptor in
the right direction
and fasten with four screws.
adaptor
adhesive tab
curved surface
