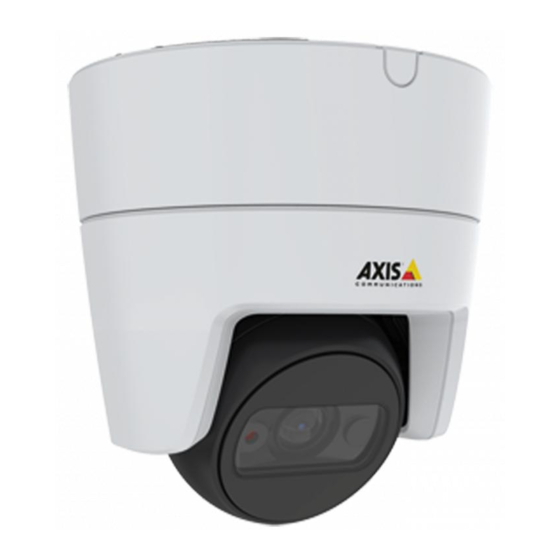

AXIS M31 Network Camera Series
AXIS M3115-LVE Network Camera
AXIS M3116-LVE Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3116-LVE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis M3116-LVE

Summary of Contents for Axis M3116-LVE

  • Page 1 AXIS M31 Network Camera Series AXIS M3115-LVE Network Camera AXIS M3116-LVE Network Camera User Manual...

  • Page 2: Table Of Contents

    AXIS M31 Network Camera Series Table of Contents About this manual ......... .

  • Page 3: About This Manual

    AXIS M31 Network Camera Series About this manual About this manual This user manual describes several products. This means you may find instructions that aren’t applicable to your product.

  • Page 4: Product Overview

    AXIS M31 Network Camera Series Product overview Product overview Part number (P/N) & Serial number S/N Network Connector (PoE) SD card slot Status indicator LED Control button Pan lock screw Tilt lock screw...

  • Page 5: Find The Device On The Network

    Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 6: Open The Device's Webpage

    1. Open a browser and enter the IP address or host name of the Axis device. If you do not know the IP address, use AXIS IP Utility or AXIS Device Manager to find the device on the network. 2. Enter the username and password. If you access the device for the first time, you must set the root password. See Set a new password for the root account on page 6 .

  • Page 7: Configure Your Device

    AXIS M31 Network Camera Series Configure your device Configure your device Webpage overview This video gives you an overview of the device interface. To watch this video, go to the web version of this document. www.axis.com/products/online-manual/56902#t10157625 Axis device web interface Need more help? You can access the built-in help from the device’s webpage.
  • Page 8 AXIS M31 Network Camera Series Configure your device Benefit from IR light in low-light conditions by using night mode Your camera uses visible light to deliver color images during the day. As the available light diminishes, you can set the camera to automatically shift to night mode, in which the camera uses both visible light and near-infrared light to deliver black-and-white images.
  • Page 9 3. Use the Local contrast slider to adjust the amount of WDR. 4. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Monitor long and narrow areas...
  • Page 10 AXIS M31 Network Camera Series Configure your device 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°. Note Make sure to aim IR LEDs away from walls or weathershields. 2. If the device doesn’t have automatic rotation of the view, go to Video > Installation.

  • Page 11: Privacy Masks

    AXIS M31 Network Camera Series Configure your device You can see the number of pixels for each of the rectangle’s sides (X and Y), and decide if the values are enough for your needs. View area A view area is a cropped part of the full view. You can stream and store view areas instead of the full view to minimize bandwidth and storage needs.

  • Page 12: Streaming And Storage

    AXIS M31 Network Camera Series Configure your device 3. Enter #D in the text field. 4. Choose text size and appearance. 5. To position the text overlay, click and select an option. Create a rule: 1. Go to System > Events and add a rule.
  • Page 13 AXIS M31 Network Camera Series Configure your device Target bitrate Average bitrate (ABR) With average bitrate, the bitrate is automatically adjusted over a longer timescale. This is so you can meet the specified target and provide the best video quality based on your available storage. Bitrate is higher in scenes with a lot of activity, compared to static scenes.
  • Page 14 H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 15 AXIS M31 Network Camera Series Configure your device 2. Click in the live view. 3. Select Video format H.264. 4. Go to Video > Stream > General and increase Compression. 5. Go to Video > Stream > H.264 and H.265 encoding and do one or more of the following: Select the Zipstream level that you want to use.

  • Page 16: Set Up Rules For Events

    AXIS M31 Network Camera Series Configure your device 2. To start a recording, click If you haven’t set up any storage, click Set up. You can use an SD card or network storage. See Set up network storage on page 15.

  • Page 17: Applications

    Applications Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. To find the user manuals for Axis applications, go to axis.com.
  • Page 18 AXIS People Counter AXIS People Counter is an analytic application that you can install on a network camera. You can use the application to count how many people pass through an entrance, in what direction they pass, and if more than one person passes during a predefined interval.
  • Page 19 Configure your device presents the data in the live view. Every fifteen minutes, the primary camera sends the statistical data to AXIS Store Data Manager. Consequently, the reports generated from AXIS Store Data Manager can present the data in a minimum of 15 minutes time interval.

  • Page 20: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.
  • Page 21 Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 22: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.

  • Page 23: The Device Interface

    AXIS M31 Network Camera Series The device interface The device interface Note Support for the features and settings described in this section varies between devices. Show or hide the main menu. Access the product help. Change the language. Set light theme or dark theme.
  • Page 24 AXIS M31 Network Camera Series The device interface Click to show I/O output ports. Use the switch to open or close the circuit of a port, for example to test external devices. Click to manually turn on or turn off the IR illumination.
  • Page 25 AXIS M31 Network Camera Series The device interface Image Appearance Saturation: Use the slider to adjust the color intensity. You can for example get a grayscale image. Contrast: Use the slider to adjust the difference between light and dark. Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image.
  • Page 26 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 27 AXIS M31 Network Camera Series The device interface Allow illumination: Turn on to let the camera use the built-in light in night mode. Synchronize illumination: Turn on to automatically synchronize the illumination with the surrounding light. The synchronization between day and night only works if the IR-cut filter is set to Auto or Off.
  • Page 28 AXIS M31 Network Camera Series The device interface Max gain: Select the suitable max gain. If you increase the max gain, it improves the visible level of detail in dark images, but also increases the noise level. More noise can also result in increased use of bandwidth and storage. If you set the max gain to a high value, images can differ a lot if the light conditions are very different from day to night.
  • Page 29 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 30 AXIS M31 Network Camera Series The device interface Overlays : Click to add an overlay. Select the type of overlay from the dropdown list: • Text: Select to show a text that is integrated in the live view image and visible in all views, recordings and snapshots.

  • Page 31: Recordings

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/applications. You need a license code and the Axis product serial number to generate a license key.

  • Page 32: System

    AXIS M31 Network Camera Series The device interface System Date and time The time format depends on the web browser’s language settings. Note We recommend you to synchronize the device’s date and time with an NTP server. Synchronization: Select an option for synchronizing the device’s date and time.
  • Page 33 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 34 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 35 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 36 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 37 AXIS M31 Network Camera Series The device interface A rule defines the conditions that must be met for the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 38 AXIS M31 Network Camera Series The device interface Use passive FTP: Under normal circumstances the product simply requests the target FTP server to open the data connection. The device actively initiates both the FTP control and data connections to the target server.
  • Page 39 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 40 AXIS M31 Network Camera Series The device interface Password: Enter a password for the username. Client ID: Enter a client ID. The client identifier is sent to the server when the client connects to it. Clean session: Controls the behavior at connection and disconnection time. When selected, the state information is discarded at connect and disconnect.
  • Page 41 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 42 AXIS M31 Network Camera Series The device interface Important Risk of data loss and corrupted recordings. Do not remove the SD card while the device is running. Unmount the SD card before you remove it. Unmount: Click to safely remove the SD card.
  • Page 43 AXIS M31 Network Camera Series The device interface RTP start port: The network port used for the first RTP media stream in a SIP call. The default start port number is 4000. Some firewalls block RTP traffic on certain port numbers.
  • Page 44 AXIS M31 Network Camera Series The device interface All current SIP accounts are listed under SIP accounts. For registered accounts, the colored circle lets you know the status. The account is successfully registered with the SIP server. There is a problem with the account. Possible reasons can be authorization failure, that the account credentials are wrong, or that the SIP server can’t find the account.
  • Page 45 AXIS M31 Network Camera Series The device interface Video View area: Select the view area to use for video calls. If you select none, the native view is used. Resolution: Select the resolution to use for video calls. The resolution affects the required bandwidth.
  • Page 46 Delete user: Delete the user. You can’t delete the root user. By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.

  • Page 47: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 48 Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys” at axis.com.

  • Page 49: Led Indicators

    This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 50 User Manual Ver. M5.3 AXIS M31 Network Camera Series Date: January 2022 © Axis Communications AB, 2019 - 2022 Part No. T10139115...
