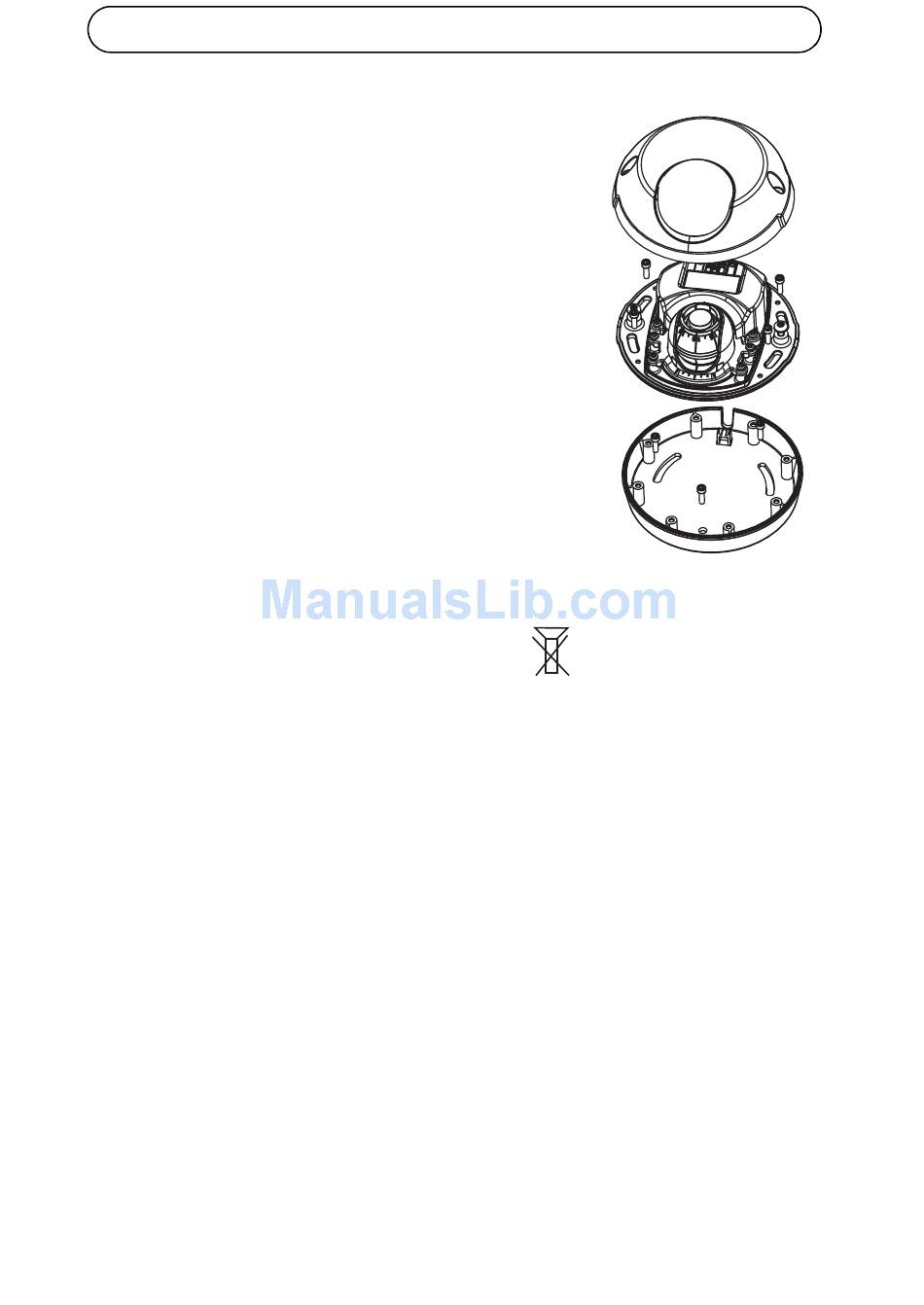

Mount on a flat surface with an adaptor
1. Place the adaptor on the mounting surface
and position the slot for the cable where
appropriate.
2. Fasten the adaptor with three screws
appropriate to the surface material.
3. Fix the camera's Ethernet cable in the slot in
the adaptor and press into place.
4. Place the camera on the adaptor, and turn
the camera so the lens faces the correct
direction.
5. Adjust so the screw slots on the camera are
aligned with the screw holes in the adaptor,
and attach the 4 screws (torque < 2.5 Nm).
6. Attach the network cable to the camera's
Ethernet cable.
Note:
Do not use a countersunk screw head.
