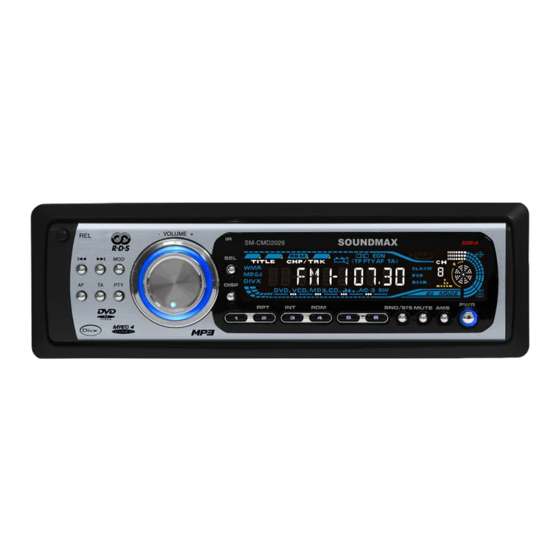

SM-CMD2026
DVD/CD/MP3-RECEIVER
DVD/CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CMD2026 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CMD2026

Summary of Contents for SoundMax SM-CMD2026

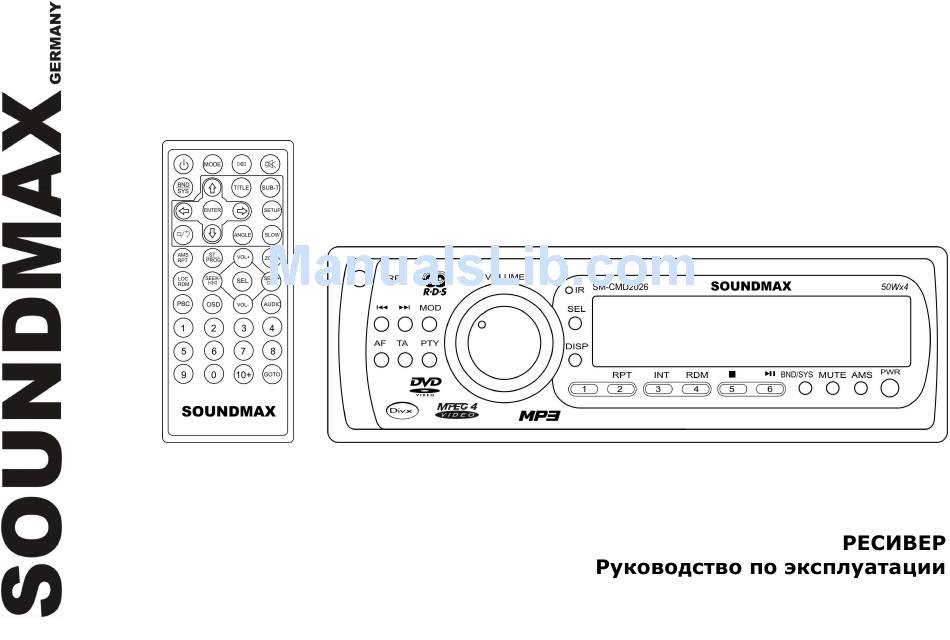

  • Page 1 SM-CMD2026 DVD/CD/MP3-RECEIVER DVD/CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..........................2 Important safeguards..........................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/ Connections

    Installation/ Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.

  • Page 6: Attaching The Control Panel

    Attaching the control panel 1. Insert the right side of the control panel (pic. 1, A) into the shaft of the main unit (pic. 1, B). 2. Push the panel to the right and insert the left side of it (pic. Note: the control panel must be attached into the T-Joint.

  • Page 7: Connection Scheme

    Connection scheme Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.

  • Page 8: Panel Controls

    Panel controls Front panel 1. REL BUTTON Press it to flip down the front panel to insert or eject the disc. 2. 9/: BUTTONS During playback press the 9/: buttons to go to previous/ next track. Press and hold for 2 seconds to start fast backward/ forward playback.
  • Page 9 5. INFRA RED SENSOR 6. SEL BUTTON Press SEL button repeatedly to select the audio setting: VOL => BAS => TRE => BAL => FAD => DSP => LOUD. Press and hold for 2 seconds to set the equalizer setting. Rotate the VOLUME/MENU knob to select it. 7.

  • Page 10: Remote Control

    Remote control 1. MODE BUTTON 2. PWR BUTTON 3. BND/SYS BUTTON 3/4/5/6 cursor buttons / ENTER BUTTON 5. STOP/REVERSE button 6. ST/PROG BUTTON 7. AMS/RPT BUTTON 8. LOC/RDM BUTTON 9. OSD BUTTON 10. PBC BUTTON 11. DIGITAL BUTTONS 12. PLAY/PAUSE BUTTON 13.

  • Page 11: Inner Panel

    Inner panel Press the REL button on the front panel to flip it down. 1. EJECT BUTTON 2. DISC SLOT 3. RESET BUTTON 4. LED INDICATOR...

  • Page 12: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press REL button, then press the RESET button to restore the unit to the original factory settings. Power button Press the PWR button to switch the unit on.

  • Page 13: Radio Operations

    Clock display and adjustment Press the DISP button to show the clock on the display. Press and hold for 2 seconds the DISP button to enter the time set mode. Rotate the VOLUME knob to adjust hours. Press SEL button. Rotate the VOLUME knob to adjust minutes.
  • Page 14 Auto memory store Select a band. Press AMS button and hold for 2 seconds to enter auto store mode. The radio will automatically store 6 stations to the 6 preset memories of the current band. To stop auto store, press it again.

  • Page 15: Dvd/Cd Operations

    DVD/CD operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.
  • Page 16 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz 48 KHz (44.1 KHz preferably) Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably). Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
  • Page 17 Slow playback During playback press the SLOW button to start the slow playback: 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, Normal. Repeat playback During disc playback, press the RPT button to repeat the current track/chapter playback. Press again to cancel the repeat function. . Random playback During disc playback, press the RDM button to start random playback of the tracks.
  • Page 18 OSD (OnScreen Display) function Press the OSD button on the RC repeatedly to show the current track/chapter, current time on the display. Title playing (for DVD only) Press TITLE button on the RC to activate the disc title list on the screen. Press the buttons on the RC to select the desired title or press the digit buttons to insert the desired number directly.
  • Page 19 Audio/ Video/ Picture file operations Insert the CD with mixed files (.mp3, .jpeg, .wma, .mpeg4 files). Category/ Folder/ File list will be displayed on the screen, and file/ folder name being played will be displayed on top. Current selected item will be highlighted.

  • Page 20: Mp3 Overview

    MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 21: System Setup Menu

    System setup menu 1. Press the SETUP button on the RC to display the system setup menu. 2. Use the cursor buttons on RC to select the desired menu: System setup, Language setup, Audio setup, Video setup, Preference. 3. Press ENTER to enter it. 4.

  • Page 22: Language Setup

    Default Reset to the initial factory setups Language setup OSD language Select the OSD language. Audio language Select the audio language (if DVD disc supports several audio languages). Subtitle language Select the subtitle language (if DVD disc supports several subtitle languages).

  • Page 23: Digital Setup

    Digital setup OP MODE Select the output mode: Line out, RF remod. DYNAMIC RANGE If watching large dynamic scope movie program at night, to select this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sounds. In this case, this doesn't disturb the family and keep the quality sounds.

  • Page 24: Anti-Theft System

    Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Detaching the front panel 1. Press the PWR button to turn the power off. 2. Press the REL button on the front panel. The panel will go down. 3.

  • Page 25: Handling Compact Discs

    Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 26: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution General The car ignition is not on. If the power supply is properly connected to the No power car accessory switch the ignition key to " ACC ". The fuse is blown. Replace the fuse. Disc Presence of CD disc inside the Remove the disc in the player then put a new...

  • Page 27: Specification

    Specification General 12 V DC Power supply Current consumption max. 14 A Maximum power output 50 W x 4 channels Fuse 15 A Dimensions (L x W x H) 192 x 178 x 50 mm FM stereo radio Frequency range 87.5 - 108.0 MHz Usable sensitivity 3 uV...
  • Page 28 ............................28 ........................29 ........................30 .........................34 ..........................38 ..........................40 DVD/CD ..................42 3............................47 ..........................48 ........................51 ......................52 ..........................52 ..................53 ......................54...
  • Page 32 ( ) ( . 1). . 2), . 3).
  • Page 34 EJECT 9/:, RADIO ( 9/:, MOD, : RADIO => AUX => DISC.
  • Page 35 VOLUME SEL, : VOL => BAS => TRE => BAL => FAD => DSP => LOUD. SEL, PTY. DISP DISP, (1-6) RPT ( INT ( RDM ( STOP ( PLAY/PAUSE ( BND/SYS RADIO ( MUTE MUTE,...
  • Page 36 RADIO ( MODE BND/SYS ENTER STOP/REVERCE ST/PROG AMS/RPT LOC/RDM PLAY/PAUSE MUTE TITLE SUB-T SETUP ANGLE SLOW ZOOM SEL / VOL+/- / SEEK- / SEEK+ AUDIO GOTO...
  • Page 37 REL, EJECT RESET 4. LED...
  • Page 38 RESET ( REL. RESET, PWR, VOLUME VOL+/- SEL, : VOL ( ) => BAS ( ) => TRE ) => BAL ( ) => FAD ( ) => DSP ( ) => LOUD ( BASS TREBLE...
  • Page 39 MODE, : RADIO ( ) => AUX => DISC MUTE, DISP. DISP SEL, DISP,...
  • Page 40 RDS ( BND/SYS, : FM1, FM2, FM3, AM1, AM2. 9/:, 9/:, 1~6, 1~6. 1~6.
  • Page 41 ST/PROG Stereo Mono. MONO Local/ Distant LOC/RDM Local Distance (DX) ( TA ( (ON) (OFF). AF ( (ON) (OFF). ON ( PTY ( PTY, PTY. «3», PTY.
  • Page 42 DVD/CD PBC ( PBC, : CD/DVD/DVD±R/CD-R/-RW. : DVD-audio/DVD-video/SVCD/VCD/MP3/WMA/JPEG/Picture CD/ Photo CD/ DivX/MPEG4/MP4. : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + Joliet - 448.
  • Page 43 - 99 44,1 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM. REL, EJECT PLAY/ PAUSE, PLAY/PAUSE, PLAY/PAUSE STOP. PLAY/ PAUSE, 10+ 1 10+ 1,...
  • Page 44 9/:, 9/:, SLOW : 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, RDM, Intro INT, DVD- ANGLE DVD- AUDIO...
  • Page 45 CD/VCD AUDIO, : Left channel ( ) => Right channel ) => Stereo ( DVD- SUB-T DVD/VCD ZOOM : 2 => 3 => 4 => 1/2 => 1/3 => 1/4 => TITLE ENTER PLAY/PAUSE, PBC ( PBC, PLAY/PAUSE, PBC,...
  • Page 46 GOTO ENTER, ST/PROG AUDIO PICTURE VIDEO. ENTER, ENTER, ENTER, STOP, PLAY/ PAUSE.
  • Page 47 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. .mp3 . .mp3 , 256. VBR, . VBR: CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 48 SETUP ENTER, NTSC: PAL: 4:3 PS: 4:3 LB: 16:9: 0000. ENTER,...
  • Page 49 AUDIO SUB- DivX DivX. SPDIF SPDIF/RAW: SPDIF/PCM:...
  • Page 51 PWR, . 3). . 1).
  • Page 53 « ». RESET.
  • Page 54 12 , . 14 87.5 - 108.0 522-1620 CD/DVD/DVD±R/CD-R/-RW DVD-audio/DVD-video/SVCD/VCD/MP3/WMA/JPEG/Picture CD/ Photo CD/DivX/MPEG4 - 20 ± 5 Classic, Rock, Pop, Flat . 2000...
