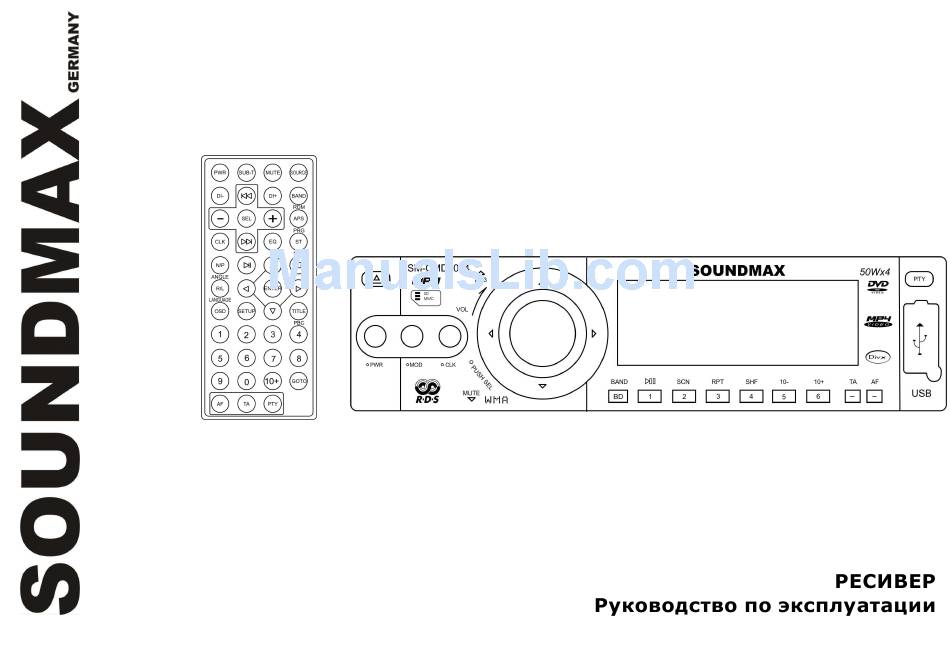

  • Page 1 SM-CMD2024 DVD/CD/MP3-RECEIVER DVD/CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents..........................2 Important safeguards ..........................3 Installation/ Connections........................4 Panel controls.............................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/ Connections

    Installation/ Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.

  • Page 6: Detaching The Front Panel

    Detaching the front panel 1. Press the OPEN button on the front panel. The panel will go down (pic. 1). 2. Push the panel to the right or to the left and then pull it towards you (pic. 2). Pic. 2 Pic.

  • Page 7: Connection Scheme

    Connection scheme Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.

  • Page 8: Panel Controls

    Panel controls Front panel 1. OPEN BUTTON Press it to flip down the front panel to insert or eject the disc. 2. 3/ 4/ 5EQ3/ 6MUTE BUTTONS During playback press the 3/ 4 buttons to go to previous/ next track/chapter. Press and hold for 2 seconds to start fast backward/ forward playback.
  • Page 9 3. VOL KNOB/ SEL BUTTON Rotate VOL knob clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. Press SEL button repeatedly to select the modes: VOL => BASS => TREBLE => BAL => FADER. Press SEL button and hold for 2 seconds to select the mode: TA SEEK => PI SOUND => RETUNE L => MASK DPI.

  • Page 10: Remote Control

    Remote control 1. SUB-T BUTTON 2. PWR BUTTON 3. DI+/- BUTTONS (option) 4. +/- / 9/: / SEL BUTTONS 5. CLK BUTTON 6. PLAY/ PAUSE BUTTON 7. N/P / ANGLE BUTTON 8. R/L / LANGUAGE BUTTON 9. SETUP BUTTON 10. OSD BUTTON 11.

  • Page 11: Inner Panel

    Inner panel Press the OPEN button on the front panel to flip it down. 1. Disc slot 2. EJECT button 3. SD card slot 4. RESET button...

  • Page 12: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button, then press the RESET button to restore the unit to the original factory settings. Power button Press the PWR button to switch the unit on.

  • Page 13: Radio Operations

    Equalizer setting Press the 5EQ3 button to select EQ mode: EQ3 => CLASSIC => POPS => ROCK. Clock display Press the CLK button to show the clock on the display. In BAND mode press the CLK button on the RC and hold it for 2 seconds to enter the time set mode. Press the +/- buttons on the RC to adjust hours.
  • Page 14 Preset scan Select a band. Press APS button on the RC to scan all preset stations in the memories of the current band and stay on each memory stations for about 7 seconds. To stop preset scan, press the APS button again. Programming tuner stations You can store up to a total of 30 radio stations in the memory (18 FM, 12 AM), manually or automatically.
  • Page 15 AF (Alternative Frequencies) function Press the AF button to turn on or turn off the AF function. The RDS program will be automatically searched and received. If the RDS signal is week or even no signal, the unit will search another frequency with this RDS program.

  • Page 16: Cd/ Dvd/ Usb/ Sd Card Operations

    CD/ DVD/ USB/ SD card operations Discs glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.
  • Page 17 Max. Track number is 448 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz 48 KHz (44.1 KHz preferably) Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
  • Page 18 Loading/ eject a disc Press the OPEN button on the panel. Insert the disc with the printed side facing upward into the slot. Press EJECT button on the inner side to eject the disc. Inserting the SD/ MMC card Press the OPEN button on the panel. Remove the panel.
  • Page 19 Random playback During disc playback, press the SHF button on the panel or the RDM button on the RC to start random playback of the tracks/chapters. Press again to cancel. Intro playback You can play the beginning of every track/chapter for 10 seconds in sequence. Press the SCN button to start intro play.
  • Page 20 PBC (Playback Control) function (for VCD only) If you insert a VCD with PBC, playback starts from the beginning of the 1st track automatically. 1. Press PBC button on the RC to activate PBC menu on screen during playback. 2. If the menu consists a list of titles, you can select a desired one using the 3/4/5/6 buttons or digit buttons.

  • Page 21: System Setup

    System setup 1. Press the SETUP button on the RC to display the main system setup menu (see the picture). 2. Use the 5/6 cursor buttons on RC to select the desired menu: General setup, Audio setup, Preference, Exit setup. 3.

  • Page 22: Audio Setup

    Audio setup SPDIF OUTPUT OFF: no digital signal out (optical or coaxial output off), only analog audio output. SPDIF/RAW: digital signal output in the original format recorded in the disc. SPDIF/PCM: digital signal output in the decoded PCM form. OP MODE Select the output mode: Line out, RF remod.
  • Page 23 TV TYPE This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or Auto. Auto: the TV system is auto switched according to the disc system. NTSC: this system is used in USA, Taiwan, Japan etc. PAL: this system is used in China, Europe, Hong Kong etc.

  • Page 24: Mp3 Overview

    MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 25: Anti-Theft System

    Note that the unit may not play Tracks in the order that you wrote them to the disc. Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Detaching the front panel 1.

  • Page 26: Handling Compact Discs

    Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 27: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution General The car ignition is not on. If the power supply is properly connected to the No power car accessory switch the ignition key to " ACC ". The fuse is blown. Replace the fuse. Disc Presence of CD disc inside the Remove the disc in the player then put a new...

  • Page 28: Specification

    Specification General 12 V DC Power supply Current consumption max. 10 A Maximum power output 50 W x 4 channels Fuse 10 A Dimensions (L x W x H) 178 x 50 x 160 mm FM stereo radio Frequency range 87.5 - 108.0 MHz Usable sensitivity 3 uV...
  • Page 29 ............................29 ........................30 ........................31 .........................35 ..........................39 ..........................41 CD/DVD / SD / USB ..........44 ..........................49 3............................52 ........................54 ......................55 ..........................55 ..................56 ......................57...
  • Page 33 OPEN . 1). . 2). .3).
  • Page 35 OPEN EJECT 3/ 4/ 5EQ3/ 6MUTE 3/ 4, 3/ 4, BAND ( 3/ 4, 3/ 4, 5EQ3...
  • Page 36 6MUTE, SEL, : VOL => BAS => TRE => BAL => FAD. SEL, : TA SEEK => PI SOUND => RETUNE L => MASK DPI. PTY. MOD, : BAND => CD => USB => SD => AUX IN. BAND BAND ( (1-6) PLAY/PAUSE ( SCN (...
  • Page 37 Remote control SUB-T DI+/- ( +/- / 9/: / SEL PLAY/ PAUSE N/P / ANGLE R/L / LANGUAGE SETUP MUTE SOURCE BAND/RDM APS/PRG ST/RPT STOP 3/ 4/ 5/ 6 / ENTER TITLE/PBC GOTO...
  • Page 38 OPEN, EJECT RESET SD/MMC...
  • Page 39 RESET ( OPEN. RESET, PWR, SEL ( : VOL ( ) => BASS ) => TREBLE ( ) => BAL ( ) => FADER - VOLUME: 00, 02,.., 44, 46 - BASS/TREBLE: -6, -5,.., 0, +1, +2,..+5, +6 - BALANCE: 12L, 11L,.., L=R, 1R,..,12R , L - - FADER: 12R, 11R,.., R=F, 1F,.., 12F BASS...
  • Page 40 MOD, : BAND ( ) => CD ( ) => USB ( ) => SD ( SD/MMC ) => AUX IN. 6MUTE, : EQ3 => CLASSIC => POPS => ROCK. 5EQ3 CLK. +/-, SEL, +/-, SEL,...
  • Page 41 RDS ( B ND, : FM1, FM2, FM3, AM1, AM2. 1~6. PWR. APS. 3/4 / 9/:.
  • Page 42 1~6, 1~6. SEL ( : TA SEEK => PI SOUND => RETUNE L => MASK DPI. - TA SEEK: : TA SEEK, TA ALARM. - PI SOUND: : PI SOUND, PI MUTE. - RETUNE L: : RETUNE R, RETUNE L. - MASK DPI: : MASK DPI, MASK ALL.
  • Page 43 PTY ( RDS, PTY, => => PTY. PTY.
  • Page 44 CD/DVD / SD / USB PBC ( PBC, : CD/DVD/DVD±R/CD-R/- RW/CDDA. : DVD-audio/DVD-video/SVCD/VCD/HDCD/MP3/WMA/JPEG/Picture CD/ Photo CD/DivX/MPEG4. : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat)
  • Page 45 : JPEG (*.jpg) ISO 9660 ISO 9660 + Joliet - 448. - 99 44,1 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM. USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 (...
  • Page 46 OPEN, EJECT SD/ MMC OPEN SD/MMC PLAY/ PAUSE, PLAY/PAUSE, PLAY/PAUSE...
  • Page 47 : CHAPTER REPEAT ( ) => TITLE REPEAT ( SCN, DVD- ANGLE DVD- LANGUAGE CD/VCD : Left ( ) => Right ( ) => Stereo ( DVD- SUB-T => =>...
  • Page 48 TITLE ENTER PBC ( PBC, 3/4/5/6. PLAY/PAUSE / SEL, STOP, VCD. PBC, BAND PAL=> NTSC => AUTO. GOTO ENTER, ENTER,...
  • Page 49 SETUP : General setup ( ), Audio setup ( ), Preference ( ), Exit setup ( ENTER, ENTER MAIN PAGE ( ENTER, EXIT SETUP, (General page) PIC MODE ( DVD: Auto, Film, Video, Smart, S-Smart. ANGLE MARK ( (ON), OSD LANGUAGE (...
  • Page 50 CAPTIONS ( (OFF), SUB-T - ON ( SCREEN SAVER ( (ON), (Audio setup) SPDIF OUTPUT ( SPDIF) Off ( SPDIF/RAW: SPDIF/PCM: OP MODE ( : Line out, RF remod. DUAL MONO ( Stereo ( L-Mono ( R-Mono ( Mix-Mono ( PRO LOGIC ON ( 5.1-...
  • Page 51 (Preferences) TV DISPLAY ( Normal /PS: (4:3). Normal /LB: (4:3). Wide: (16:9). TV TYPE ( Auto ( NTSC: PAL: VIDEO OUPUT ( S-Video. AUDIO, SUBTITLE, DISC MENU ( LANGUAGE SUB-T PARENTAL ( PASSWORD ( PASSWORD => CHANGE, - 3308 ( ENTER,...
  • Page 52 DEFAULTS ( SMART NAVI ( MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. .mp3 . .mp3 , 256. VBR, . VBR:...
  • Page 53 CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 54 PWR, OPEN . 1).
  • Page 56 « ». RESET.
  • Page 57 12 , . 10 87.5 - 108.0 522-1620 CD/DVD/DVD±R/CD-R/-RW DVD-video/SVCD/VCD/MP3/WMA/JPEG/Picture CD/Photo CD - 20 . 2000...
