SoundMax SM-CMD3016 Instruction Manual

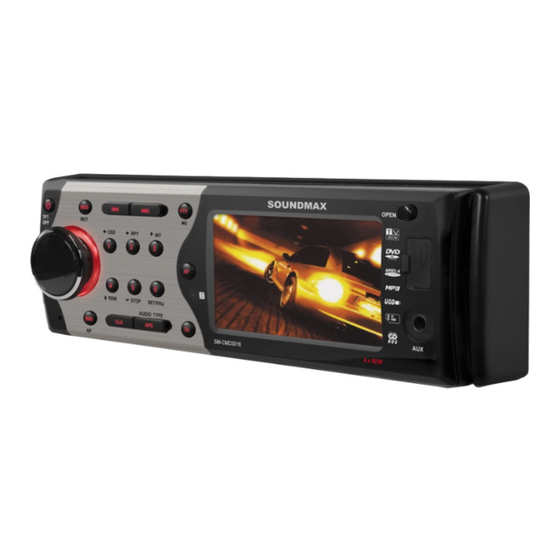

Multimedia dvd/cd/mp3 receiver with built-in 3” tft display and tv tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Multimedia DVD/CD/MP3 receiver with built-in 3" TFT display and TV
tuner
DVD/CD/MP3-
SM-CMD3016
3" TFT-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CMD3016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CMD3016

Summary of Contents for SoundMax SM-CMD3016

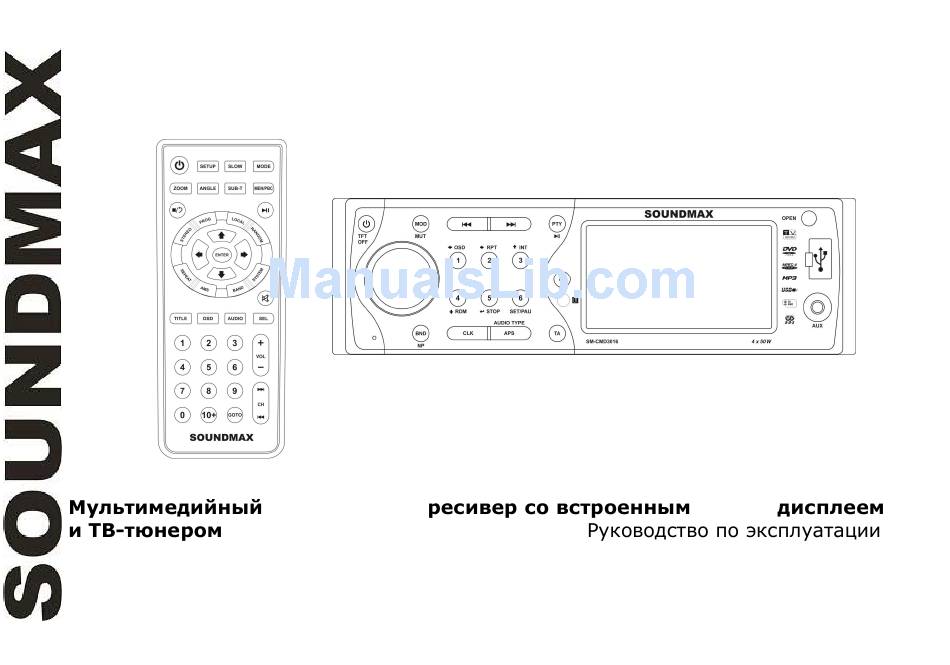

  • Page 1 SM-CMD3016 DVD/CD/MP3- 3” TFT- Multimedia DVD/CD/MP3 receiver with built-in 3” TFT display and TV tuner Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 IMPORTANT SAFEGUARDS.............................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yourself with this unit. Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit. “CLASS 1 LASER PRODUCT”...

  • Page 4: Accessories

    Accessories 1. Receiver 1 pc 2. Front panel 1 pc 3. Protective case 1 pc 4. Remote controller 1 pc 5. ISO connector 1 pc 6. Mounting parts: 1 pc Spring washer 2 pcs Flat washer 2 pcs Screw M5 1 pc Screw M5x5 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place. 3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
  • Page 8 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibited to make the conductors of auto antenna and ground touch with each other.
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.
  • Page 10 If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status. When the car is moving ahead, if the video disc is played, the screen shows warning and blank screen.

  • Page 11: Panel Controls

    Panel controls Front panel 1. PWR/OFF/TFT button 2. MOD/MUT button 3. 1/OSD/LEFT button 4. PREVIOUS button 5. 2/RPT/RIGHT button 6. NEXT button 7. 3/INT/UP button 8. PTY/PLAY/PAUSE button 9. AF button 10. TFT display 11. OPEN button 12. USB port 13.
  • Page 12 Inner panel Press OPEN button on the front panel to detach it. 1. Disc loading slot 2. SD/MMC memory card slot 3. RESET button (hole) 4. Panel status indicator 5. EJECT button Pressing RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.
  • Page 13 Remote controller 1. SETUP button 2. POWER button 3. ANGLE button 4. ZOOM button 5. STOP button 6. PROG button 7. STEREO button 8. Cursor (UP/DOWN/LEFT/RIGHT) buttons 9. REPEAT button 10. AMS button 11. TITLE button 12. OSD button 13. Number buttons 14.

  • Page 14: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RESET button (hole) with a pointed object, such as a ballpoint pen, to set the unit to initial state. Note: When some errors occur, you can also press RESET button to resume to normal, and it will erase some memorized functions.
  • Page 15 between the left and right speakers. Fader is to adjust the balance between the rear and front speakers. After you have reached your desired effect, leave the unit idle in order for the new setting to take effect. Note: If the equalizer is set on, bass and treble are not adjustable. EQ modes Press repeatedly SELECT button on the panel or SEL button on the RC until the display shows EQ OFF.
  • Page 16 COLOR1 (green button backlight) and COLOR2 (red button backlight). After you have reached your desired effect, leave the unit idle in order for the new setting to take effect. TFT on/off Press POWER/TFT OFF button on the panel to switch the TFT display off. Press the button again to switch the display on.

  • Page 17: Radio Operations

    Radio operations Band select Press repeatedly BND/NP button on the panel or BAND button on the RC to select your desired radio band in Radio mode: FM1, FM2, FM3, AM1 (MW1), AM2 (MW2). In each set of the bands you can store up to 6 preset stations, making total 30 preset memory stations.
  • Page 18 Local radio station search Press repeatedly SELECT button on the panel or SEL button on the RC until the display shows LOC ON (LOC OFF). Press VOL+/VOL- buttons on the RC or rotate VOLUME regulator on the panel to select between LOC ON/OFF.
  • Page 19 Press PTY/PLAY/PAUSE button to show the music type. Then press 1 - 6 number buttons to choose different music programs available. Press PTY/PLAY/PAUSE button twice to show the speech type program. Then press 1 - 6 number buttons to choose different speech programs. Each number button will show 2 or 3 different speech programs for you to choose: Pop, Rock, Easy, Light, Classics, Other, Jazz, Country, Nation, Oldies, Folk, News, Affairs, Info, Sport, Educate, Drama, Culture, Science, Varied, Weather, Finance, Children, Social, Religion, Phone IN, Travel, Leisure, Document).

  • Page 20: Tv Operations

    TV operations TV and audio system Press repeatedly SYSTEM button on the RC or BND/NP button on the panel to select one of the available TV systems. Press repeatedly AUDIO button on the RC to select one of the available sound systems. Search channels Press AUDIO TYPE/APS button on the panel or AMS button on the RC to automatically search and save all available TV channels.

  • Page 21: Disc/Usb/Sd/Mmc Operations

    Disc/USB/SD/MMC operations Insert/Eject disc Open the front panel and insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit. The first file in the root folder will be played. Close the front panel. Open the front panel and press EJECT button to eject the disc from the slot.
  • Page 22 Play/Pause/Stop During playback press PLAY/PAUSE button on the RC or press and hold 6/SET/PAU button on the panel to pause playback. Do this operation again to resume playback. To stop playback, press STOP button on the RC or press and hold 5/STOP/ENTER button on the panel. Selecting tracks/chapters During playback press PREVIOUS button on the panel or on the RC to play the previous track/chapter (depending on the format).
  • Page 23 needed settings. Press ENTER button on the RC or 5/STOP/ENTER button on the panel to start playback from the set number or time. Programming the playback Press PROG button on the RC to open program menu. Use cursor buttons to select the program position and use number buttons to input the desired track/title/chapter (depending on the disc type).
  • Page 24 Changing angle (for DVD only) Press ANGLE button on the RC to playback images at different camera angles. If a disc doesn’t support multi- angle playback, this function will not work. Selecting audio language (for DVD only) During DVD disc playback, press AUDIO button on the RC repeatedly to select the audio language to listen. This function will not work if a disc does not support multi-language audio.
  • Page 25 USB/SD/MMC notes USB format supports 2.0. Capacity: up to 32 Gb. For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 32 Gb. Inserting SD/MMC card/USB device Insert an MMC/SD card or a USB device into MMC/SD slot or USB slot.

  • Page 26: System Setup

    System setup Press SETUP button on the RC or 6/SET/PAU button on the panel to display setup screen, use UP/DOWN cursor buttons to select the desired setup page: System, Disc. Press RIGHT cursor button to go to the selected page item list.

  • Page 27: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 28: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...
  • Page 29 Temperature inside the car is too Cool off until the ambient temperature returns to high. normal. Buttons do not The built-in microcomputer is not Reset the unit with the help of RESET button. work operating properly. Front panel is not properly fix into its Install the front panel properly.

  • Page 30: Specification

    Specification General Power supply 12 V DC Current consumption 10 A Maximum power output 4 x 50 W Dimensions/Net weight 178 x 51 x 178 mm/2 kg Temperature range C - +60 FM stereo radio Frequency range 87.5 – 108.0 MHz Preset stations MW Section Frequency range...
  • Page 31 ................................31 ..........................32 ............................34 ..........................35 ............................42 ..............................45 ............................... 48 ..........................52 /USB/ SD/MMC ................ 53 ............................59 ......................... 61 ............................... 61 ................. 62 ........................63...
  • Page 34 5. ISO-...
  • Page 35 30°, « » « » « » ( « » ( DIN,...
  • Page 36 « » (...
  • Page 37 – – – « » (...
  • Page 38 OPEN,...
  • Page 40 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 42 PWR/OFF/TFT MOD/MUT 1/OSD/LEFT PREVIOUS 2/RPT/RIGHT NEXT 3/INT/UP PTY/PLAY/PAUSE 10. TFT- OPEN 12. USB- SELECT/ VOLUME BND/NP 4/RDM/DOWN 5/STOP/ENTER APS/TYPE/AUDIO 6/SET/PAU...
  • Page 43 OPEN, SD/MMC ) RESET EJECT RESET...
  • Page 44 SETUP POWER ANGLE ZOOM STOP PROG STEREO REPEAT TITLE SLOW MODE SUB-T MEN/PBC PLAY/PAUSE LOCAL RANDOM ENTER AUDIO SYSTEM VOL+/VOL- BAND PREVIOUS/NEXT MUTE GOTO CR 2025 3...
  • Page 45 ) RESET RESET OPEN), POWER/TFT OFF POWER MODE MOD/MUT => => USB => => AUX. MOD/MUT MUTE MUTE ON. VOL+/VOL- VOLUME...
  • Page 46 SELECT BAS ( ) =>TRE ( ) => BAL ( => FAD ( VOL+/VOL- VOLUME SELECT OFF. VOL+/VOL- VOLUME : POP => ROCK => CLASS => FLAT => EQ OFF ( SELECT LOUD ON (OFF). VOL+/VOL- VOLUME (ON) (OFF) VOLUME VOL+/VOL- SELECT VOLUME...
  • Page 47 Beep SELECT BEEP ON (OFF). VOLUME VOL+/VOL- BEEP ON ( BEEP OFF ( SELECT COLOR1 (COLOR2). VOLUME VOL+/VOL- COLOR1 ( COLOR2 ( POWER/TFT OFF MP3-...
  • Page 48 BND/NP BAND 3 FM- : FM1, FM2, FM3 W (AM) : MW1 (AM1), MW2 (AM2). PREVIOUS/NEXT CH+/CH- PREVIOUS/NEXT AUDIO/TYPE/APS SCAN ON. 6 1~6. AUDIO/TYPE/APS INTRO ON.
  • Page 49 SELECT ST ON (ST OFF). VOLUME VOL+/VOL- (ST ON) (ST OFF). STEREO SELECT ON (LOC OFF). VOLUME VOL+/VOL- LOC ON ( DLOC OFF ( LOCAL LOC/DX. RDS ( AF (...
  • Page 50 TA ( PTY ( RDS, PTY/PLAY/PAUSE, 1-6, PTY/PLAY/PAUSE 1-6, : Pop ( ), Rock ( ), Easy ( ), Light ( ), Classics ( Other ( ), Jazz ( ), Country ( ), Nation ( ), Oldies ( ), Folk ), News ( ), Affairs ( ), Info (...
  • Page 51 SELECT VOLUME VOL+/VOL- TA SEEK/TA ALARM: TA SEEK TA; TA ALARM: PI SOUND/MUTE: PI sound: . PI mute: RETUNE L/RETUNE S: «RETUNE» . «S» ; «L» Retune TA SEEK. MASK DPI/MASK ALL: AF ( MASK DPI. MASK DPI MASK ALL RDS.
  • Page 52 SYSTEM BAND/NP AUDIO APS/TYPE/AUDIO PREVIOUS NEXT PREVIOUS/NEXT...
  • Page 53 /USB/ SD/MMC EJECT. AVI- MP3/DivX/JPEG MP3/DivX/JPEG,...
  • Page 54 STOP 5/STOP/ENTER ENTER 5/STOP/ENTER MEN/PBC PLAY/PAUSE 6/SET/PAU STOP 5/STOP/ENTER PREVIOUS NEXT (0-9) PREVIOUS NEXT PREVIOUS NEXT : x2 => x4 => x8 => x20 => PLAY/PAUSE PTY/PLAY/PAUSE...
  • Page 55 2/RPT/ REPEAT 3/INT/ RANDOM 4/RDM/ GOTO; 5/STOP/ENTER ENTER PROG, PLAY/PAUSE, « » 5/STOP/ENTER ENTER « », 5/STOP/ENTER ENTER PROG,...
  • Page 56 1/OSD/ ZOOM : X2 => X3 => X4 => X1/2 => X1/3 => X1/4 => SLOW : 1/2 => 1/3 => 1/4 => 1/5 => 1/6 => 1/7 => 6/SET/PAU PLAY/PAUSE PBC ( VCD) VCD- PBC. MEN/PBC PBC. DVD) ANGLE DVD) AUDIO...
  • Page 57 DVD) SUB-T AUDIO AUDIO/TYPE/APS => => SYSTEM BND/NP (NTSC/PAL/PAL60/ DVD) MEN/PBC ENTER 5/STOP/ENTER TITLE ID3- ID3-tag, USB/SD/MMC- USB: USB 2.0. SD/MMC:...
  • Page 58 USB/SD/MMC- SD/MMC MOD/MUT MODE USB- « ».
  • Page 59 SETUP 6/SET/PAU ENTER 5/STOP/ENTER ENTER 5/STOP/ENTER SETUP 6/SET/PAU NTSC/PAL: (NTSC, PAL, PAL60, 4:3 PS: 4:3. 4:3 LB: 4:3, 16:9 wide: 16:9. 0000. 0000...
  • Page 62 “ ”.
  • Page 63 RESET. 12 , C - +60 87,5 – 108,0 522 – 1620...
  • Page 64 SECAM/PAL/NTSC DVD/DVD±R/DVD±RW, CD/CD-R/CD-RW, USB, SD/MMC DVD-video/DVD-audio/SVCD/VCD/CDDA/HDCD/MP3/Picture- CD/Photo-CD/JPEG/MPEG4 (DivX/XviD) DVD, 40 CD, 120 c 0 - +/-30 16:9 320 (RGB) 400:1 120° 2010 – 2019) (2011) R31982101-01792...
