SM-CMD3007

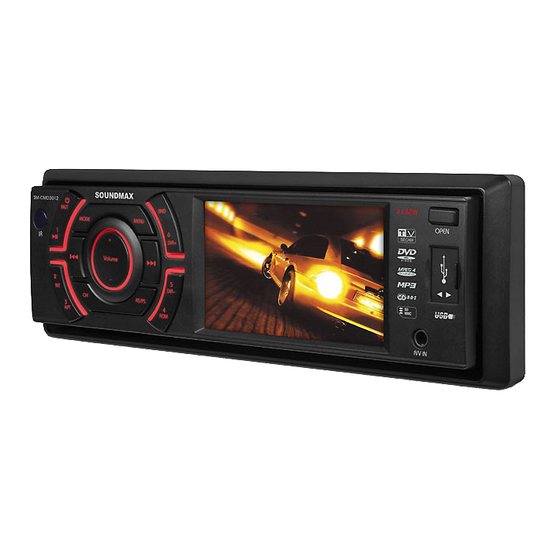

MULTIMEDIA DVD/CD/MP3 RECEIVER with built-in 3" TFT display
Instruction manual
DVD/CD/MP3-
3" TFT-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CMD3007 and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-CMD3007

Summary of Contents for SoundMax SM-CMD3007

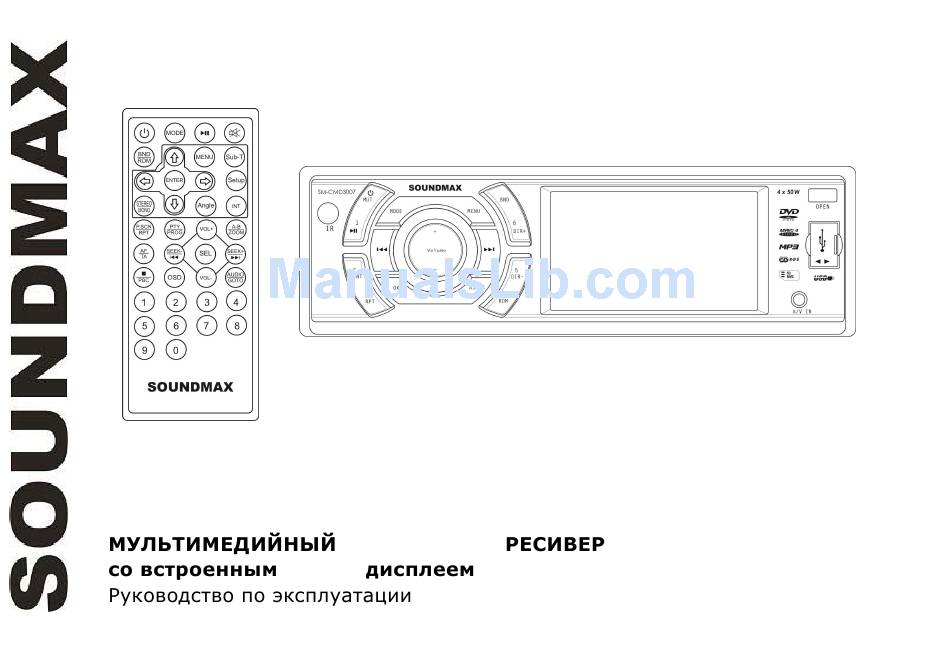

  • Page 1 SM-CMD3007 MULTIMEDIA DVD/CD/MP3 RECEIVER with built-in 3” TFT display Instruction manual DVD/CD/MP3- 3” TFT-...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ....................2 Important safeguards ..................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yourselves with this unit. Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit. “CLASS 1 LASER PRODUCT”...

  • Page 4: Accessories

    Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system. Always keep the volume low enough so that you can hear sounds from outside the vehicle.

  • Page 5: Installation/Connection

    Installation/connection Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
  • Page 8 Electrical Connection Connector A Connector B 1. - 1. Rear right speaker (+) 2. - 2. Rear right speaker (-) 3. - 3. Front right speaker (+) 4. Memory +12V 4. Front right speaker (-) 5. Auto antenna output 5. Front left speaker (+) 6.
  • Page 9 ISO Connection table Location Function Connector A Connector B Rear right (+) - Purple Rear right (-) - Purple/Black Front right (+) - Grey Battery +12V/Yellow Front right (-) - Grey/Black Auto Antenna - Blue Front left (+) - White Front left (-) - White/Black Ignition/Red Rear left (+) - Green...

  • Page 10: Unit Controls

    Unit controls Front panel 1. IR sensor 2. 1/PLAY/PAUSE button 3. POWER/MUTE button 4. MODE button 5. VOLUME+ button 6. MENU button 7. BND button 8. 6/DIR+ button 9. NEXT button 10. TFT display 11. OPEN button 12. USB port 13.
  • Page 11 Inner panel 1. Memory card slot 2. Eject button 3. Panel status indicator 4. RESET button (hole) 5. Disc loading slot Pressing RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you flip down the panel and flashes when you remove the panel.
  • Page 12 Remote controller (RC) 1. MODE button 2. PWR button 3. BND/RDM button 4. ENTER button/Cursor buttons 5. STEREO/MONO button 6. PTY/PROG button 7. P.SCN/RPT button 8. SEEK-/PREVIOUS button 9. AF/TA button 10. STOP/PBC button 11. OSD button 12. Number buttons 13.
  • Page 13 Changing the battery 1. Press the catch and at the same time pull out the battery tray (pic. 1). 2. Insert the 1 lithium battery, type CR2025 (3V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote controller (pic.2).

  • Page 14: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RESET button (hole) with a pointed object (such as a ballpoint pen) to set the unit to initial state. Note: When some errors occur, you can also press RESET button to resume to normal, and it will erase the clock setting and some memorized functions.
  • Page 15 button on the panel to select the audio setting item. Press ENTER button or RIGHT cursor button on the RC or OK button on the panel to enter the selected item. Press LEFT/RIGHT buttons on the RC or VOLUME+/VOLUME- buttons on the panel to adjust the audio setting.
  • Page 16 Sharpness: Adjust level of screen sharpness. Support 15 levels. Default level is 10. Screen: Adjust screen aspect: 16:9 => 4:3 => FULL. Color reset: Resume color default status. (Select YES or NO with cursor buttons, press ENTER button on the RC or OK button on the panel to confirm). EXPERT MENU DX: Set search radio station by DX or LOCAL mode.

  • Page 17: Radio Operations

    Radio operations Band selection Press BND/RDM button on the RC or BND button on the panel to switch to the bands in the following order: FM1 - FM2 - FM3 (OIRT) – MW (AM). Manual/automatic tuning Manual tuning: Press and hold PREVIOUS/NEXT buttons on the RC or panel to enter manual tuning mode.
  • Page 18 Stereo/Mono reception In FM mode, press STEREO/MONO button on the RC to select stereo or mono signal reception mode. On-screen display Press OSD button on the RC to show enabled PTY function icon. RDS background RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available.
  • Page 19 PTY (Program type) function Press PTY/PROG button on the RC to open PTY program type list, and repeat pressing PTY/PROG button to select a PTY type. After selecting the program type you want, press number buttons 1 - 6 on the RC or on the panel to start search.
  • Page 20 announcement. At the end of the announcement the radio will return to its previous state ready for the next announcement. REG ON/OFF: When REG is available (On), the receiver accepts regional variants of the tuned station display. When REG is unavailable (Off), the receiver ignores regional variants. TA VOL: You can set the default volume of TA announcement.

  • Page 21: Disc/Usb/Sd/Mmc Operations

    Disc/USB/SD/MMC operations USB/SD/MMC notes USB functions (flash memory type) MP3 music play. SD/MMC card support, 2 in 1 (SD/MMC) support. USB flash memory. FAT 12/ FAT 16/ FAT 32 is possible FAT 12/16 (dir: 200 support, file: 500 support), FAT 32 (dir: 200 support, file: 500 support). Filename: 32 byte/ Dir name: 32 byte.
  • Page 22 Note: When SD/MMC card and USB device are both inserted, the playing mode will be changed into the mode of the device inserted later. Play/pause The unit will automatically play from the first sound track recorded on a disc/SD/MMC/USB device. To ensure good system performance, wait until the unit finishes reading the disc/device information before proceeding.
  • Page 23 to start playback again. Playback will resume from the point it was stopped at. If you press STOP/PBC button on the RC or press and hold 1/PLAY/PAUSE button on the panel twice, playback will stop completely and can be resumed only from the beginning of the disc. Selecting tracks During playback press PREVIOUS button to play the beginning of current track, press it again to play the previous track.
  • Page 24 GOTO Press and hold AUDIO/GOTO button to show the playback parameters for the current chapter/track/time (track/title/chapter number or time). Press cursor buttons to navigate between the parameters and use number buttons to input needed settings. Press OK button on the panel or ENTER button on the RC to start playback from the set number or time.
  • Page 25 PBC (Playback Control) function (for VCD only) This function is only available for the VCD with PBC function. Press and hold STOP/PBC button on the RC to set PBC on/off; when PBC is off, the screen will show PBC menu if you switch PBC on. If the menu consists of a list of titles, you can select a desired one using number buttons on the RC.

  • Page 26: Dvd Setup Menu

    DVD Setup menu Press SETUP button on the RC to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired setup page: System, Language, Audio, Video, Digital. In the selected page select an option using UP/DOWN cursor buttons, then press RIGHT cursor button to go to setting list. Use UP/DOWN cursor buttons to select the needed setting.
  • Page 27 Note: The rating can be selected only under the password unlocked status, and the limits can be worked only under the password locked status. Default If this item is selected, the unit will return to original setting. Language setup OSD language Select the language to be used for the on-screen display.
  • Page 28 Video setup Set a parameter with UP/DOWN cursor buttons: Brightness, Contrast, Hue, Saturation, Sharpness. Digital setup Dynamic range If watching large dynamic scope movie program at night, selecting this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sound.

  • Page 29: Handling And Cleaning Discs

    Handling and cleaning discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 30: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 31: Specification

    Specification General Power supply: 12 V DC Maximum power output: 4 x 50 W Storage support: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC Compatible formats: DVD/DVCD/SVCD/VCD/HDCD/MP3/CDDA/Picture-CD/Photo- CD/JPEG/MPEG4 (DivX) Unit dimensions/Net weight: 170 x 178 x 50 mm/1.55 kg Gift box dimensions/Gross weight: 235 x 285 x 103 mm/2.25 kg ESP function: 40 sec.
  • Page 32 ....................32 ...................33 ..................34 ...................35 ..................41 .....................45 ....................48 /USB- ........52 DVD ..................58 ..................61 ............62 ................64...
  • Page 34 ISO-...
  • Page 35 30°, « » « » « » ( « » ( DIN,...
  • Page 36 « » (...
  • Page 37 – – – « » (...
  • Page 38 OPEN.
  • Page 39 1. - 2. - 3. - 6. - 7. +12 (...
  • Page 40 (+) - (-) - (+) - (-) - (+) - (-) - (+) - (-) - “Attention! You cannot use this function while driving” (“ “),...
  • Page 41 1/PLAY/PAUSE POWER/MUTE MODE VOLUME+ MENU 6/DIR+ NEXT 10. TFT- OPEN 12. USB- PREVIOUS 2/INT 3/RPT VOLUME- AS/PS 4/RDM 5/DIR-...
  • Page 42 EJECT ) RESET RESET...
  • Page 43 MODE BND/RDM ENTER/ STEREO/MONO PTY/PROG P.SCN/RPT SEEK-/PREVIOUS AF/TA STOP/PBC PLAY/PAUSE MUTE MENU SUB-T SETUP ANGLE A-B/ZOOM VOL+ SEEK+/NEXT AUDIO/GOTO VOL-...
  • Page 44 (CR 2025 3V), –...
  • Page 45 ) RESET RESET OPEN), POWER/MUTE POWER MODE => => USB => => AV IN. POWER/MUTE MUTE MUTE. VOL+/VOL- VOLUME+/VOLUME-...
  • Page 46 : BASS ( ) =>TREBLE ( ) => BALANCE ) => FADER ( ) => EQ ( VOLUME+/- ENTER VOLUME+/VOLUME- POWER MENU VOLUME+/- ENTER VOLUME+/VOLUME- ENTER MENU AUDIO ( Bass: . 10 - 0. Treble: . 10 - 0.
  • Page 47 Balance: . 10 Fader: . 10 EQ DSP: FLAT => CLASSICS => POP => ROCK => DSP OFF ( PICTURE ( /USB/ Red: . 50 - 25. Green: . 50 - 25. Blue: . 50 - 25. Brightness: . 50 - 25.
  • Page 48 BND/RDM : FM1 - FM2 - FM3 (OIRT) – MW (AM). PREVIOUS NEXT MANUAL. PREVIOUS NEXT PREVIOUS NEXT (18 FM, 6 AM). P.SCN/RPT AS/PS...
  • Page 49 P.SCN/RPT AS/PS STEREO/MONO PTY. RDS ( AF ( AF/TA RDS. TA (Traffic Alarm) MODE...
  • Page 50 MODE PTY ( PTY/PROG (PTY), “PTY NONE” ("PTY "). MENU VOLUME+/- RDS SETUP. ENTER VOLUME+/VOLUME- ENTER MENU...
  • Page 51 RDS SETUP TA ALARM/SEEK: TA SEEK, TA ALARM, PI SOUND/MUTE: PI sound: . PI mute: RETUNE S/L: Retune-S Retune-L – TA Seek. Retune S: TA SEEK 30 . Retune L: TA SEEK 90 Retune TA SEEK. MASK DPI/ALL: MASK DPI. MASK ALL.
  • Page 52 /USB- USB/SD/MMC SD/MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 • FAT 12/ 16 ( , 500 • FAT 32 ( , 500 • : 32 : 32 • (id3tag ver 2.0) USB 2.0. : USB: USB 2.0. SD/MMC: EJECT.
  • Page 53 MMC/SD USB. /USB). PLAY/PAUSE 1/PLAY/PAUSE MP3/DivX/JPEG MP3/DivX/JPEG, ENTER AVI-...
  • Page 54 /USB/ STOP/PBC 1/PLAY/PAUSE PLAY/ PAUSE STOP/PBC 1/PLAY/PAUSE PREVIOUS NEXT (0-9) PREVIOUS NEXT DVD/VCD PREVIOUS NEXT. PLAY/PAUSE. A-B/ZOOM, P.SCAN/RPT,...
  • Page 55 2/INT BND/RDM, PTY/PROG, PLAY/PAUSE « » ENTER « », ENTER PTY/PROG, PBC ( VCD) VCD- PBC. STOP/PBC PBC.
  • Page 56 B/ZOOM : X2 => X3 => X4 => X1/2 => X1/3 => X1/4 => 6/DIR+ 5/DIR- AUDIO/GOTO; ENTER DVD) ANGLE DVD) AUDIO/GOTO DVD) SUB-T VCD) AUDIO/GOTO => => =>...
  • Page 57 DVD) MENU ENTER PLAY/PAUSE ID3- ID3-tag,...
  • Page 58 SETUP ENTER ENTER (NTSC, PAL, PAL60, (interlace-S-Video). 4:3 PS: 4:3. 4:3 LB: 4:3, 16:9: 16:9. – 0000.
  • Page 59 DivX [R] VOD: DivX.
  • Page 60 “Full”, “Off”, (L+R).
  • Page 62 “ ”.
  • Page 63 RESET.
  • Page 64 DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC DVD/DVCD/SVCD/VCD/HDCD/MP3/CDDA/Picture-CD/Photo- CD/JPEG/MPEG4 (DivX) /1,55 /2,25 CD, 120 C - +60 16:9 400:1 , 120 – 74 /87,5 – 108 <15 522 – 1620...
