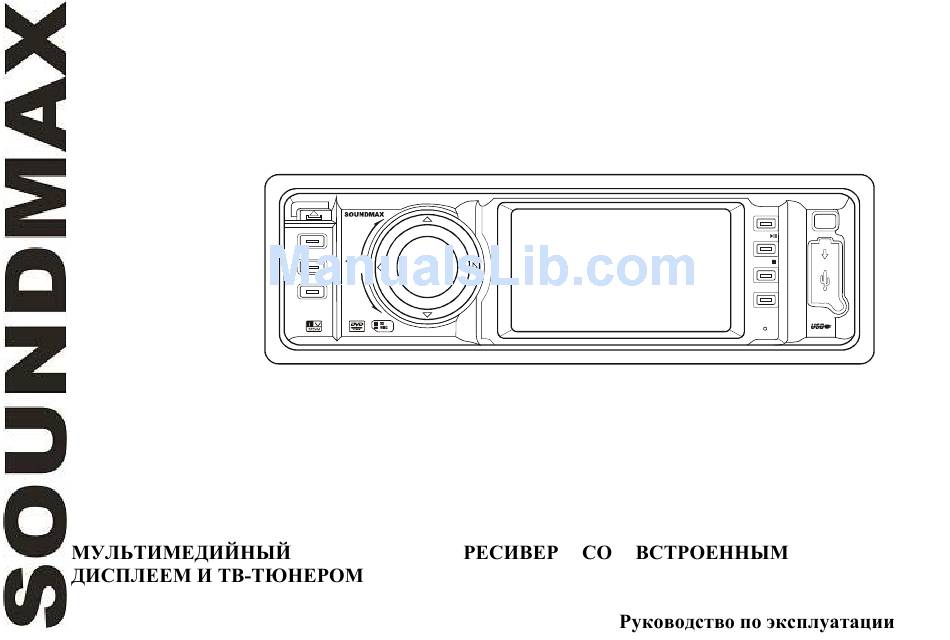

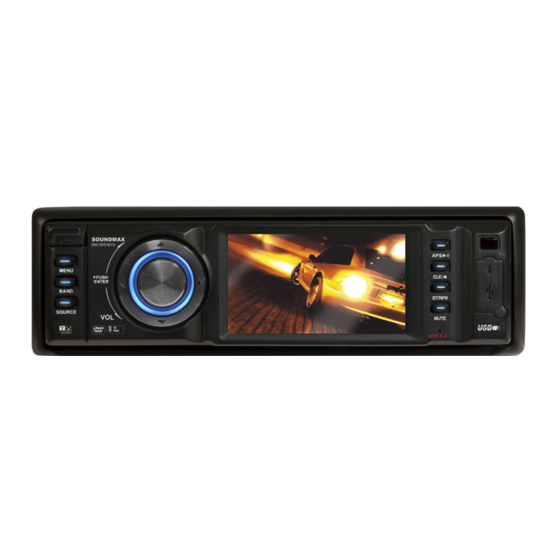

- Page 1 MENU BAND SOURCE MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 3” TFT DISPLAY AND TV TUNER DVD/CD/MP3 Instruction manual SM-CMD3010 SM -C MD3010 PUSH ENTER APS/ CLK/ ST/RPT MUTE 50Wx4 3”...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents... 2 Important safeguards ... -
Page 3: Important Safeguards
Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/Connections
Installation/Connections First complete the electrical connections, and then check them for correctness. Installation It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram. - Page 5 Attaching the control panel Insert the left side of the control panel into the shaft of the main unit. Push the panel to the left and insert the right side of it. Press the right side of the panel until a “click” sound is heard. Detaching the front panel Press the OPEN button on the front panel.
- Page 6 Connection diagram Notes: In spite of having any kinds of speaker system, use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other. For your driving safety, please link your parking wire with low power level, and keep it controlled by manual brake switch.
-
Page 7: Panel Controls
Panel controls Front panel MENU button BAND button SOURCE button Cursor button Microphone MUTE button USB slot APS/PLAY/PAUSE button CLK/STOP button 10. ST/RPT button 11. LCD display 12. VOL/ENTER knob 13. OPEN button... - Page 8 Inner panel The front panel of this unit can be detached to show the inner panel with disk slot. Press EJECT button to open the inner panel. To unload the disk press EJECT again To set the unit to the initial settings press RESET button. 14.
- Page 9 Remote control PWR button SUB-T button DI+/- buttons (OPTION) +/-/PREV/NEXT/SEL buttons CLK button N/P/ANGLE (option) button PLAY/PAUSE button R/L/LANGUAGE button RIGHT/LEFT/UP/DOWN cursor buttons/ENTER button 10. OSD button 11. SETUP button 12. Number buttons 13. AF button (option) 14. TA button (option) 15.
-
Page 10: General Operations
General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button, then press the RESET button with some sharp object to restore the unit to the original factory settings. -
Page 11: Radio Operations
Radio operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. BAND selection Press BAND button on the panel or on the RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2. - Page 12 Hold UP/DOWN cursor buttons to store a station. To recall a station: Select a band (if needed). Press UP/DOWN cursor buttons to recall the stored station. Mono/Stereo selection Press the ST/RPT button on the RC to select ST OFF (Mono) or ST ON (Stereo) mode. TA (Traffic Announcement) function Press the TA button on the RC or on the panel to turn on or turn off the TA function.
-
Page 13: Dvd/Cd Operations
DVD/CD operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image. - Page 14 SD/MMC mode Remove the front panel. Insert the card into the SD slot. Press SOURCE button to choose SD mode. SD cards brands: Canon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: up to 2 GB.
- Page 15 Playing/pausing playback When the disc is in the playback will start automatically. Or you can press PLAY/PAUSE on the RC or APS/PLAY/PAUSE button to start playback. To ensure good system performance, wait until the unit finishes reading the disc information before proceeding.
- Page 16 VCD mode to choose sound mode: MONO L, MONO R, STEREO. Video system Press N/P/ANGLE button to choose video system: NTSC => PAL => AUTO. Selecting subtitle language (for DVD only) If DVD disc supports multi-subtitle playback, press SUB-T button on the RC repeatedly to switch among languages.
- Page 17 Program playing (for VCD/CD only) During playback press APS/PRG button on the RC to open the program menu. Press the Number buttons to select the track number and then press UP/DOWN/LEFT/RIGHT cursor buttons to move the cursor to PLAY. Press ENTER button to confirm. The selected track will be played. Audio/Video/Picture file operations Insert the CD with mixed files (.mp3, .jpeg, .wma, mpeg4 files), press STOP button.
-
Page 18: Tv Tuner
TV tuner To receive TV broadcasts, install the TV antenna. For receiving TV broadcasts, stop your car where there is no obstacle to broadcast. Channel Search Press SOURCE button and press cursor buttons, then ENTER button (or touch the TV mode icon) to choose TV mode. Touch the screen once at any place, the menu will appear, then press AMS button, the unit will scan and store TV programs automatically. -
Page 19: Operating With System Menu
Operating with System Menu To enter the System Setting Menu press MENU button (or press top right corner of the screen in Radio mode). will enter Menu pages Video Mode, Audio Mode System Mode using UP/DOWN/LEFT/RIGHT cursor buttons or touching the needed items Video Mode You may adjust the settings: BRIGHT, COLOR, CONTRAST, TINT, V.MODE (STAN =>... -
Page 20: Mp3 Overview
MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. -
Page 21: System Setup Menu
System setup menu 1. Press the SETUP button on the RC to display the system setup menu. 2. Use LEFT/RIGHT cursor buttons on RC to select the desired menu: System setup, Language setup, Video setup. 3. Press ENTER to enter it. 4. - Page 22 Language setup OSD language Select the OSD language. Audio language Select the audio language (if DVD disc supports several audio languages). Subtitle language Select the subtitle language (if DVD disc supports several subtitle languages). Menu language Select the DISC menu language (if DVD disc supports several menu languages).
- Page 23 Accessories 1. Operating instructions 2. Key 3. Screw 4. Mounting collar (Metal sleeve) 5. Wire connector 6. Front panel case 7. Trim plate (plastic frame) 2 pcs 2pcs 2pcs (ISO and RCA)
-
Page 24: Anti-Theft System
Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. -
Page 25: Troubleshooting Guide
Troubleshooting guide Symptom No power The car ignition is not on. The fuse is blown. Disc cannot be loaded. Presence of CD disc inside the player. Disc cannot be read. Inserting the disc in upside down. Compact disc is extremely dirty or defective. -
Page 26: Specification
Specification General Power supply Current consumption Maximum power output Fuse Dimensions (L x W x H) Supported storages Supported formats FM stereo radio Frequency range Usable sensitivity Storable stations Display Display Aspect ratio Video system Resolution Brightness Contrast View angle AM Section Frequency range Storable stations... - Page 27 ...27 ...28 ...29 ...32 ...35 ...36 DVD/CD ...39 ...44 ...45 3...46 ...48 ...50 ...51 ...51 ...53 ...52...
- Page 32 MENU BAND SOURCE MUTE APS/PLAY/PAUSE CLK/STOP ST/RPT VOL/ENTER OPEN...
- Page 33 14. SD- RESET EJECT RESET. OPEN,...
- Page 34 SUB-T DI +/- +/-/PREV/NEXT/SEL N/P/ANGLE ( PLAY/PAUSE R/L/LANGUAGE ENTER/ SETUP AF ( TA ( PTY ( GOTO TITLE/PBC STOP ST/RPT APS/PRG BAND/RDM MUTE SOURCE (CR2025).
- Page 35 OPEN, RESET SOURCE SOURCE SOURCE, RADIO => DISC => SD => USB => BACK VIEW => INPUT => TV. MUTE, : NORM => ROCK => POP => CLAS. MENU (System mode),...
- Page 36 RDS ( BAND FM1, FM2, FM3, AM1, AM2. PREV/NEXT NEXT/PREV NEXT/PREV APS/PLAY/PAUSE PWR. APS/PLAY/PAUSE APS/PLAY/PAUSE...
- Page 37 ST/RPT TA ( AF ( PTY ( PTY, (18 FM, 12 AM), NEXT/PREV ST OFF ( ST ON ( RDS, PTY,...
- Page 38 PREVIOUS/NEXT . « »).
- Page 39 DVD/CD PBC ( – : DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-CD/JPEG. : MP3 (*.mp3) WMA (*.wma) : MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + – PBC, Joliet - : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, : CD/DVD/DVD±R/CD-R/-RW. 44,1 DRM.
- Page 40 .) mono R ( RPT: TIT ( ESC: SD/MMC Sharp, Samsung, MMC: USB. SRC/PWR , 500 , 500 : 32 stereo : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, SOURCE, SOURCE, USB.
- Page 41 OPEN EJECT PLAY/PAUSE PLAY/PAUSE MP3/MPEG-4/USB PLAY/PAUSE, VCD/CD PLAY/PAUSE, PREV ST/RPT => REP OFF ( STOP APS/PLAY/PAUSE PLAY/PAUSE, STOP NEXT : REP CHAPTER ( ) => REP TITLE ( STOP STOP 0-9. PREV/NEXT ) => REP ALL (...
- Page 42 => REP OFF ( VCD/CD R/L/LANGUAGE ), STEREO ( N/P/ANGLE, DVD, PBC ( : REP ONE ( ) => REP DIR ( : REP ONE ( ) => REP ALL ( BAND/RDM : NTSC => PAL => AUTO. TITLE/PBC PBC, ) =>...
- Page 43 ENTER, PBC, DVD/VCD/CD ) => Audio ( ENTER, AUDIO PICTURE VIDEO. ENTER, ENTER STOP, STOP, VCD/CD APS/PRG PLAY. (.mp3, .jpeg, .wma, mpeg4), GOTO : Title ( ) => Chapter ENTER, STOP.
- Page 44 SOURCE ENTER AMS, APS, NEXT/PREVIOUS 10+,...
- Page 45 VIDEO ( CONTRAST ( ), TINT ( USER) ( AUDIO ( ), TREBLE ( ), FADER ( ) (NORM, ROCK, JUZZ, CLAS, POP ( BEEP, TOPIC, TIME DISP ( MENU ( BRIGHT ( ), COLOR ( ), V.MODE ( ) (STAN, SOFT, : BASS ( ), BALANCE ( : LOUD (...
- Page 46 «.mp3». PC « » . VBR: 44,1 CD-R MPEG 3 « » 256. VBR, CD-R CD-RW, ISO 9660, MP3 CD-R CD-RW CD-ROM, CD-R CD-RW. ISO 9660. «.mp3», « MP3» « »,...
- Page 47 CD-R CD-RW CD-R CD-RW 1. ID3TAG.
- Page 48 SETUP ENTER, NTSC: PAL: 4:3 PS: 16:9: – 0000.
- Page 49 DIVX DivX, DivX. DIVX : 4.0, 5.0, 6.0.
- Page 50 (ISO RCA)
- Page 52 « ». RESET.
- Page 53 12 , DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-CD/JPEG 87,5 – 108,0 522 – 1620 16:9 PAL/SECAM/NTSC 480 x 234 300:1 : 110 , : 120 – 20 RCA (2V)
