SoundMax SM-CMD2022 Instruction Manual

Soundmax dvd/mp3/cd receiver instruction manual
Hide thumbs Also See for SM-CMD2022:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

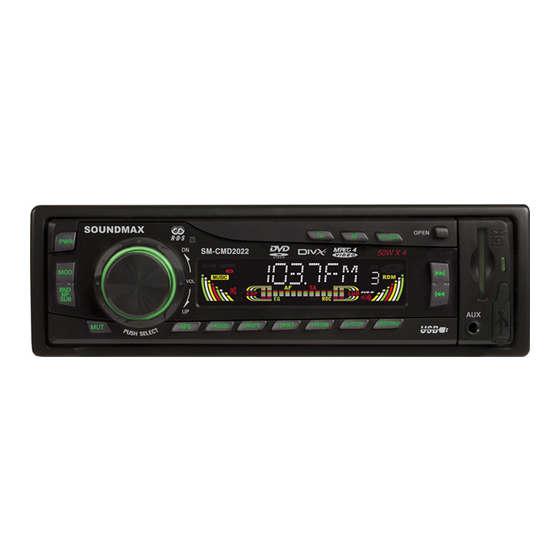

SM-CMD2022
DVD/MP3/CD RECEIVER
DVD/MP3/CD-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CMD2022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CMD2022

Summary of Contents for SoundMax SM-CMD2022

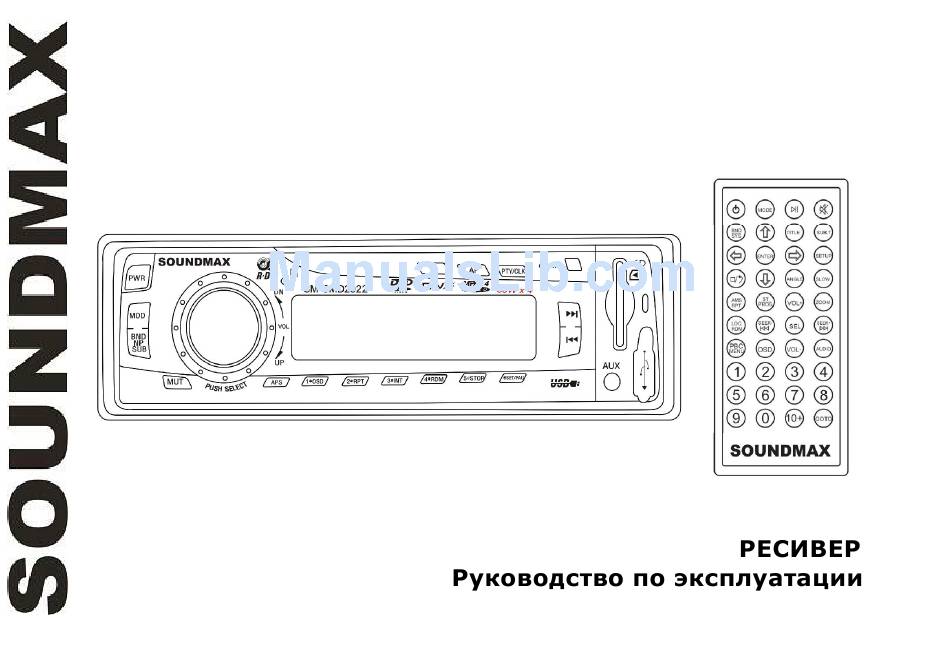

  • Page 1 SM-CMD2022 DVD/MP3/CD RECEIVER DVD/MP3/CD- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ....................... 2 Important safeguards ....................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.
  • Page 4 Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 6. Screw (5 25 mm) 7. Metal strap 8. Flat washer 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
  • Page 7 3. Insert the supplied release keys into the both sides of the unit body to click, as shown in the picture. To extract the unit from the dashboard, pull the release keys or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap. Trim frame installation To install the trim frame, press it to the unit body and push it to fix it in place.
  • Page 8 Detachable control panel Detaching the control panel Press the OPEN button on the front panel. The panel will go down (pic. 1). Push the panel to the left and then pull it towards you (pic. 2). Pic. 1 Pic. Attaching the control panel Insert the left side of the control panel into the main unit (pic.
  • Page 9 Connection diagram:...
  • Page 10 Speaker wiring notes Follow the above wiring diagram to install the head unit with new or existing speakers. This unit is designed for use with four (4) speakers with an impedance between 4 Ohms to 8 Ohms. An impedance load of less than 4 Ohms could damage the unit. Never bridge or combine the speaker wire outputs.
  • Page 11 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

  • Page 12: Accessories

    Accessories Receiver 1 pc Remote controller 1 pc Front panel protective case 1 pc ISO cable 1 pc Installation parts: Release keys 2 pcs Screw 1 pc Screw 1 pc Flat washer 2 pcs Spring washer 2 pcs Metal strap 1 pc 1 pc Consumer information...

  • Page 13: Controls Description

    Controls description Front panel 1. OPEN button 12. BAND/NP/SUB button 2. TA button 13. MODE button 3. PREVIOUS/NEXT buttons 14. AUX in jack 4. PTY/CLK button 15. APS button 5. Preset station buttons 16. USB slot 6. LEFT/OSD button 17. SD/MMC memory card slot 7.
  • Page 14 Back of the front panel 1. panel status LED indicator 2. RESET button 3. Disc slot 4. EJECT button...
  • Page 15 Remote control (RC) 1. MODE button 2. POWER button 3. BND/SYS button 4. Cursor buttons 5. ENTER button 6. STOP/REVERSE button 7. AMS/RPT button 8. ST/PROG button 9. LOC/RDM button 10. VOL+/- button 11. PBC/MENU button 12. OSD button 13. Number buttons 14.
  • Page 16 Changing the battery 1. Press the catch and at the same time pull out the battery tray. 2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

  • Page 17: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button and remove the panel, then press the RESET button to restore the unit to the original factory settings. Power button Press any button (except OPEN button) to turn the unit on.
  • Page 18 Mute function Press MUTE button to cancel the sound. Press again to resume. Sound settings Press SEL button repeatedly to select a parameter: VOL => BAS => TRE => BAL => FAD => LOUD => LOC => ST => EQ. Rotate VOL knob or press VOL +/- buttons on the RC to adjust each parameter.

  • Page 19: Radio Operations

    Radio operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band select Press BAND/NP/SUB button on the front panel or BND/SYS button on RC repeatedly to select your desired radio band in RADIO mode: FM1, FM2, FM3, AM1 (MW1), AM2 (MW2).
  • Page 20 APS (Auto memory store/ Preset scan) function Preset scan: press APS button on the panel or AMS/RPT button on the RC to scan all preset stations in the memory of the current band and stay on each memory stations for several seconds.
  • Page 21 PS (Program Service name): the name of station will be display instead of frequency. If RDS service is not available in your area, turn off the AF mode. Default setting is ON. TA (Traffic Alarm) function Press TA button on the panel to turn TA function on or off. In TA mode traffic program will be automatically searched, until the program is received.
  • Page 22 If there are no keys entered for 2 seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, NO PTY is flashed, then return to previous normal radio and PTY word disappears. Press PTY button for the 3 time to switch the PTY function off.
  • Page 23 MASK mode During AF search, PI stations and non-RDS (Radio Data Station) stations with strong signal will be masked, in the latter case, the non-RDS stations may cause interference, resulting the real AF to be masked due to the misjudgment of the radio under interference.

  • Page 24: Disc Operations

    Disc operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.
  • Page 25 MPEG 2(*.vob) MPEG 1(*.dat) Picture file: JPEG (*.jpg) ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters Max. Track number is 448 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz –...
  • Page 26 Capacity: 8 MB ~ 1 GB. SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: 8 MB ~ 1 GB. MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc. Capacity: 16 MB ~ 1 GB. Inserting the SD/MMC card/USB device Insert the MMC/SD card or USB device into MMC/SD compartment or USB slot correspondingly.
  • Page 27 Scanning forward and backward Press and hold PREVIOUS/NEXT buttons on the panel or SEEK-/PREVIOUS and SEEK+/NEXT buttons on the RC to fast the playing in backward or forward direction. Release the button when the desired location is found. Slow playback (for DVD/VCD) During DVD/VCD playback press SLOW button on the RC for slow playback.
  • Page 28 Intro playback You can play the beginning of every track for several seconds in sequence. Press and hold UP/INT button on the panel to start intro play. Press again to cancel. Changing size Press repeatedly ZOOM button on the RC. The picture will be enlarged accordingly: X2, X3, X4, 1/2, 1/3, 1/4, OFF.
  • Page 29 PBC (Playback Control) function (for VCD only) If you use a VCD with PBC, playback starts from the beginning of the 1st track automatically. 1. Press PBC/MENU button on the RC to activate PBC menu on screen during playback. 2. If the menu consists a list of titles, you can select a desired one using cursor buttons on the RC or digit buttons.

  • Page 30: Notes On Mp3 And Wma

    Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 31 Notes on creating your own CD-Rs or CD-RWs containing MP3 files To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 256 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 32: System Setup

    System setup Press SETUP button on the RC or SET/PAU button on the panel to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired item: System, Language, Audio, Video, Digital. Press UP/DOWN cursor buttons to select an item on the selected page.
  • Page 33 Original setting: 8 Note: The rating can be selected only under the password unlocked status, and the limits can be worked only under the password locked status. Load default If this item is selected, the unit will return to original setting. Language setup OSD language Select the language to be used for the on-screen display.
  • Page 34 Video setup Brightness Set the brightness, contrast, hue, saturation and sharpness of the video image with UP/DOWN cursor buttons. Digital setup Output mode Select the output mode: LINE OUT: Compress the input signal. The volume is small. RF REMOD: The volume is large. Dynamic range When you select the compressed mode as “line out”, select it to adjust the compression proportion and get the different...

  • Page 35: Anti-Theft System

    Anti-theft system Remove the panel Press POWER button to switch off the power of the unit. Press OPEN button to flip down the panel. Push the panel to the left and then pull it towards you. Put it to the special box and take it with you. Remove the unit Remove the panel and the trim plate.

  • Page 36: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 37: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power. The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside Remove the disc in the player the player.

  • Page 38: Specification

    Specification General Power supply: 12V DC Current consumption/Fuse: 10A & 1A Maximum power output: 50Wx4 channels Dimensions (W x H x D) 178 x 51 x 178 mm Working temperature range: -20º - +60º FM Stereo Radio Frequency range: 87.5 - 108.0 MHz Usable sensitivity/I.F.
  • Page 39 Maximum Output 2Vrms(+/-3dB) Frequency Response 20 to 20KHz S/N Ratio(A-vtd)/ Separation 60dB/ 50dB Line output: CD max 1000 mV Specifications are subject to change without notice. Mass and dimension are approximate.
