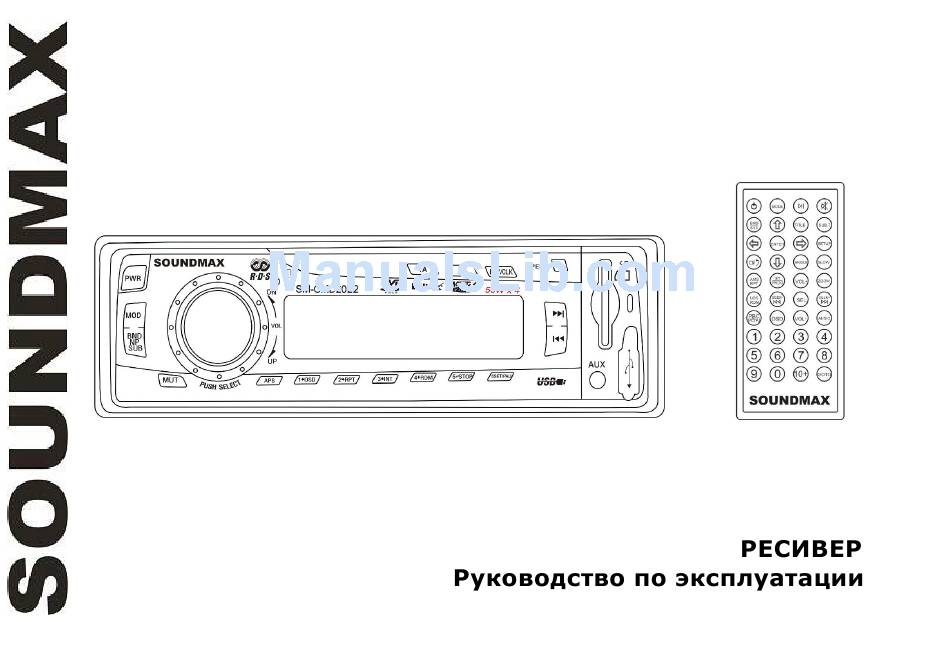

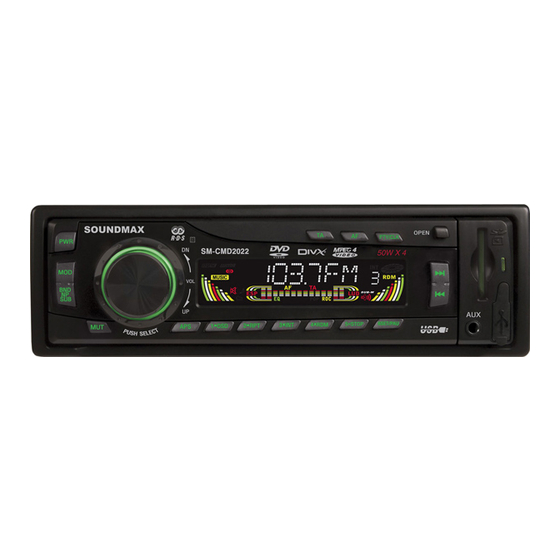

  • Page 1 SM-CMD2022 DVD/MP3/CD RECEIVER DVD/MP3/CD- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ....................... 2 Important safeguards ....................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yours with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/ Connections

    Installation/ Connections First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed.
  • Page 5 On the masking tape mark the polarity of the speaker wires (+ & -), as well as left or right, and front or rear. Repeat this procedure for all of the speakers. Mark the power, ground, and any other wires also. Installation method A After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to...
  • Page 6 Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket. 2. Screw. 3. Factory radio mounting bracket. 4. Dashboard or Console. 5. Hook (Remove this part). Note: The mounting box, outer trim ring, and the Half-sleeve are not used for this method of installation.
  • Page 7 Caution: DO NOT insert the control panel from the right side. It can damage the control panel. The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an Pic.
  • Page 8 Connection scheme:...
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 10: Accessories

    Accessories Name Hexagon nut M5 T (3.5 mm) Mounting box (0.6 mm) Left key (1.0 mm) Right key (1.0 mm) Metal bar (0.8 mm) ISO connector Plain washer =5 mm Carrying case Outer trim ring Spring washer =5 mm Screw 5X5 mm Screw 5X25 mm...

  • Page 11: Controls Description

    Controls description Front panel 1. OPEN BUTTON Press it to remove the front panel. 2. TA BUTTON In RADIO mode press it to active the TA function. buttons In Disc mode press the buttons shortly to go to previous/next track. Press and hold them to start fast backward/ forward rewind.
  • Page 12 / OSD button In menu use it to move to the left. During playback press it and hold for 2 seconds to show the mode information on the display. / RPT BUTTON In menu use it to move to the right. During playback press it and hold for 2 seconds to start repeat playback.
  • Page 13 In Radio mode press it to scan the preset memorized stations. Press it and hold for 2 seconds to store the programs with the best reception into preset buttons automatically. 16. USB socket 17. SD/MMC socket 18. MUTE BUTTON Press it to switch the sound off/on. 19.
  • Page 14 Back of the front panel Press the OPEN button to open the panel. 1. LED INDICATOR 2. RESET BUTTON 3. DISK SLOT 4. EJECT BUTTON Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.
  • Page 15 Remote control 1. MODE BUTTON 2. POWER BUTTON 3. BND/SYS BUTTON 4. ERROR BUTTONS 5. ENTER BUTTON 6. STOP/REVERSE BUTTON 7. AMS/RPT BUTTON 8. ST/PROG BUTTON 9. LOC/RDM BUTTON 10. VOL +/- BUTTON 11. PBC BUTTON 12. OSD BUTTON 13. DIGIT AREA 14.

  • Page 16: General Operations

    Changing the battery 1. Press the catch and at the same time pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control. General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the...
  • Page 17 Mode selecting Press the MOD button on the front panel or MODE button on RC repeatedly to select the mode: RADIO => DISC (the type of disc inserted) => USB (if any is inserted) => CARD (the type of card inserted). Subwoofer control Press and hold the BAND/ NP/ SUB button on the panel to turn the Subwoofer output ON.
  • Page 18 Press briefly the SEL button again, the minute will blink. Rotate the VOL knob on the panel to adjust minutes. Press the PTY/CLK button to confirm it.

  • Page 19: Radio Operations

    Radio operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band select Press the BAND button on the front panel or BND/SYS button on RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2.
  • Page 20 APS (Auto memory store/ Preset scan) function Preset scan: press APS button on the panel or AMS button on the RC to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
  • Page 21 TA (Traffic Alarm) function Press the TA button on the panel to select TA ON or TA OFF. In TA mode traffic program will be automatically searched, until the program is received. When traffic announcement is received the unit will temporarily switch to the tuner mode (regardless of the current mode) and begin broadcasting the announcement.
  • Page 22 PTY (Program Type) Press PTY/CLK button on the panel to activate the PTY function. The previous PTY type is shown. Press PTY/CLK once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type (see the following table).
  • Page 23 TA SEEK When newly tuned station does not receive TP information for 5 seconds, the radio retunes to next station which has not the same station (PI – Program Information) as the last station, but has the TP information. When TP information gets lost at the current station for retune time which is set by RETUNE SHORT (30 seconds) or RETUNE LONG (90 seconds), the radio starts to retune to next same PI station.

  • Page 24: Discs Operations

    Discs operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.
  • Page 25 MPEG 1(*.dat) Picture file: JPEG (*.jpg) ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters Max. Track number is 448 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz –...
  • Page 26 Note: USB format supports 2.0. Capacity: 8 MB ~ 1 GB. SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: 8 MB ~ 1 GB. MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc. Capacity: 16 MB ~ 1 GB.
  • Page 27 Press the button on the RC or on the panel to play the next track. Scanning forward and backward Press and hold the button on the RC or on the panel to fast the playing in backward or forward direction. Release the button when the desired location is found.
  • Page 28 Changing size Press the ZOOM button on RC. The picture will be enlarged accordingly: X2, X3, X4, 1/2, 1/3, 1/4, OFF. Selecting the audio language (for DVD only) Press the AUDIO button on RC or press the SEL button to select AUDIO and then rotate the VOL knob to select the audio language (if DVD disc supports several audio languages).
  • Page 29 Press PBC button on the RC to activate PBC menu on screen during playback. If the menu consists a list of titles, you can select a desired one using the / / / buttons on the RC or digit buttons. The VCD starts playing the selected title automatically or press PLAY/ PAUSE / ENTER button to confirm the selected track for playback.

  • Page 30: Notes On Mp3 And Wma

    Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 31 Notes on creating your own CD-Rs or CD-RWs containing MP3 files To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 256 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 32: System Setup

    System setup Press SETUP button on the RC to display setup screen, use / , ENTER buttons to select the desired item: System, Language, Audio, Video, Digital. System setup TV system Select the TV system in the setting menu (PAL or NTSC). Screen saver The screen saver appears if disc stop last more than 3 minutes.
  • Page 33 If this item is selected, the unit will return to original setting. Language setup Setting the on-screen display language Select the language to be used for the on-screen display. Setting the audio language Select the language to be used for the audio. You can select a preferred audio from those included on the DVD video disk.
  • Page 34 Video setup Brightness. Set the brightness of the video output with Contrast Set the contrast of the video output with Hue. Set the hue of the video output with Saturation. Set the saturation of the video output with Sharpness. Set the sharpness of the video output with Digital setup Output mode Select the output mode:...

  • Page 35: Anti-Theft System

    Anti-theft system Remove the panel Press POWER button to switch off the power of the unit. Press OPEN button to flip down the panel. Push the panel to the left and then pull it towards you. Put it to the special box and take it with you. Remove the unit Remove the panel and the trim plate.

  • Page 36: Cleaning

    Cleaning Discs holding Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 37: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power. The car ignition is not on. If the power supply is properly The fuse is blown. connected to the car accessory switch the ignition key to “ACC”. Replace the fuse. Disc cannot be Presence of disc inside the Remove the disc in the player loaded.
  • Page 38 The radio does not The antenna cable is not Insert the antenna cable firmly. work. connected. Select a station manually. The radio station The signals are too weak. automatic selection does not work.

  • Page 39: Specification

    Specification General. Power supply: 12V DC Current consumption/Fuse: 10A & 1A Maximum power output: 50Wx4 channels Dimensions (W x H x D) 178 x 51 x 178 mm Working temperature range: -20º - +60º FM Stereo Radio. Frequency range: 87.5 - 108.0 MHz Usable sensitivity/ I.F.
  • Page 40 ......................40 ...................41 ..................43 ....................49 ....................50 ....................56 ......................59 ..................64 ..................65 .....................74 ..................81 .................82 ............84 ..................85...
  • Page 45 OPEN . 1). . 2).
  • Page 46 . 3).
  • Page 48 ISO, (+)--- (-)--- (+)--- (+)/ (-)--- (+)--- ((-)--- ACC+/ (+)--- (-)---...
  • Page 49 M5 T (3,5 (0,6 (1,0 (1,0 (0,8 5X25 5X29,3...
  • Page 50 OPEN EJECT PTY / CLK PTY.
  • Page 51 (1-6) / OSD / RPT / INT / RDM STOP SET/PAU BAND / NP/ SUB BAND ( : NTSC => PAL => PAL60 => AUTO. MODE...
  • Page 52 : TUNER ( ) => DISC ( ) => USB/SD/MMC => AUX. 14. AUX SD/MMC MUTE MUTE, SEL, : VOL => BAS => TRE => BAL => FAD => LOUD => LOC => ST => EQ. POWER...
  • Page 53 OPEN, 1. LED RESET EJECT...
  • Page 54 MODE POWER BND/SYS ENTER STOP/REVERSE AMS/RPT ST/PROG LOC/RDM VOL +/- PLAY/PAUSE MUTE TITLE SUB-T SETUP ANGLE SLOW ZOOM SEEK +/- / AUDIO GOTO...
  • Page 55 (CR 2025 3V),...
  • Page 56 RESET ( OPEN. RESET, POWER, POWER VOL+/- MUTE,...
  • Page 57 MODE, : AUX => RADIO => DISK => USB => CARD ( USB, CARD, DISK BAND/ SUB, : VOL ) => BAS ( ) => TRE ( ) => BAL ( ) => FAD ( ) => LOUD ) => LOC ( ) =>...
  • Page 58 PTY/CLK, PTY/CLK,...
  • Page 59 RDS ( BAND/NP/SUB BND/SYS : FM1, FM2, FM3, AM1, AM2. SEEK +/- SEEK +/- << -/ >> + SEEK +/- 1~6, 1~6.
  • Page 60 AMS/RPT AMS/RPT. 1-6. AMS/RPT 1~6. AMS/RPT ST/PROG VOL +/- STEREO MONO. SEL, VOL +/- (LO OFF). SEL, LOC/RDM...
  • Page 61 AF ( (ON) (OFF), ON (...
  • Page 62 TA ( (ON) (OFF). PTY ( RDS, PTY/CLK, PTY. : TA SEEK/ALARM => RETUNE L/S => MASK DP/IALL. TP ( VOL, : TA SEEK ALARM.TA SEEK:...
  • Page 63 (Traffic Program – - RETUNE SHORT (30 RETUNE LONG (90 ALARM: RETUNE Retune-S Retune-L – TA Seek. RETUNE S: TA SEEK 30 RETUNE L: TA SEEK 90 Retune TA SEEK. MASK : MASK DPI MASK ALL. VOL, MASK DPI: MASK ALL: RDS.
  • Page 64 PBC ( – PBC, –...
  • Page 65 CD/DVD/CDDA/CD-R/-RW/DVD±R/±RW. : DVD-video, SVCD/VCD/HDCD/MP3/MP4/WMA/ Picture- CD/JPEG/ DivX/MPEG4. : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + Joliet - – 448. – 99. - 99 44,1 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM.
  • Page 66 USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0) USB 2.0. USB: USB 2.0. : 8 M ~ 1 : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, : 8 M ~ 1...
  • Page 67 PLAY/ PAUSE PLAY/PAUSE, PLAY/PAUSE STOP STOP/REVERSE DVD, VCD SLOW : 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, ENTER...
  • Page 68 AMS/RPT LOC/RDM Intro INT, ZOOM : X2, X3, X4, 1/2, 1/3, 1/4, AUDIO DVD- ANGLE...
  • Page 69 SUBTITLE ENTER, TITLE ENTER. PBC ( PBC, – ENTER, STOP VCD.
  • Page 70 GOTO GOTO GOTO, : 1 => 8 => 2 => 0 => 0 => 0. ENTER GOTO, 234, : 2 => 3 => 4. ENTER, ENTER, : 1 => 8 => 2 => 0 => 0 => 0. ENTER...
  • Page 71 ST/PROG button DVD/VCD) PN/ SUB/ BAND : NTSC => PAL => PAL60 => AUTO.
  • Page 72 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” ”, PC “ ” “ ” 256. VBR, . VBR:...
  • Page 73 WMA (Windows Media Audio) – Microsoft Corporation. , 64 CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 74 SETUP ENTER, “ ”.
  • Page 75 : INTERLACE-YUV. 4:3 PS: 4:3. 4:3 LB: 4:3, 16:9: 16:9. 0000.
  • Page 78 SPDIF/ RAW: SPDIF/ PCM:...
  • Page 80 LINE OUT: RF REMOD: “line out”, “Full”, “Off”,...
  • Page 81 POWER, OPEN,...
  • Page 84 “ ”. RESET...
  • Page 85 10A & 1A / -20º - +60º 87.5 - 108.0 / 10.7 522-1620 DVD/SVCD/VCD/MP4/MP3/WMA/CD/HDCD/DV DAudio/MPEG4/DivX/Picture-CD/Photo- CD/CD-R/CD-RW/DVD±R/JPEG NTSC/PAL / 24 0 - +/-30 16:9 4:3 / 500 1.0 , 75 RMS (+/-3 – 20 (A-vtd)/ . 1000...
