Installing a camera shroud

To install a camera shroud, see Figure 26 and do the following:
1. Slide the camera guide into the two slots in the shroud and make sure the camera can tilt without being
limited or blocked.
2. Using the provided screw, attach the shroud to the camera (5 in-lb. torque).
3. Install or reattach the dome onto the housing.
4. Test the camera's pan and tilt movements to make sure the shroud does not impede operation or block
the camera's view. If you have a protocol error or a video blackout, see

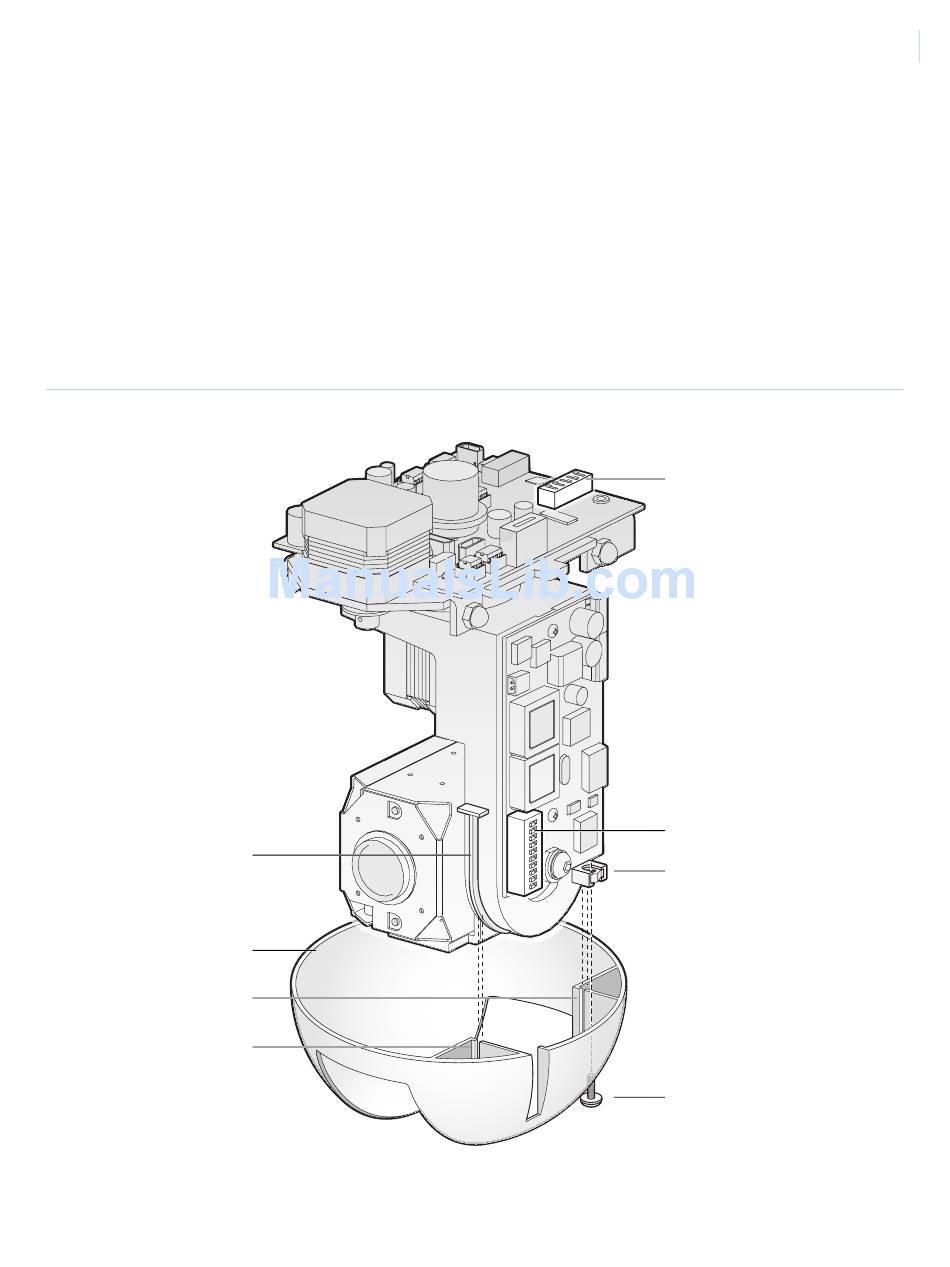

Figure 26. Camera shroud installation
Guide
Shroud
Slot
Slot
Chapter 4
Camera assembly, shroud, dome
Troubleshooting on page 36.
Protocol DIP switch block
Site address DIP switch block
Hex nut
Screw
31
