22 CyberDome II
Installation Manual

Wiring the housing board

To wire the housing board, do the following:
WARNING: Do not run any cables next to the heaters. Doing so could damage the dome or cause an electrical fire.
1. Connect the facility data cables to the main connections, which are the B and A terminals on the
provided 6-pin or 2-pin terminal strip (Figure 19). The main data connections on the terminal strip are
for control wires that are coming in from the keypad. You may also daisy-chain the data signal to
additional domes.
Note: If you are installing RS-485 data, float the shield at the dome and connect it at the keypad.

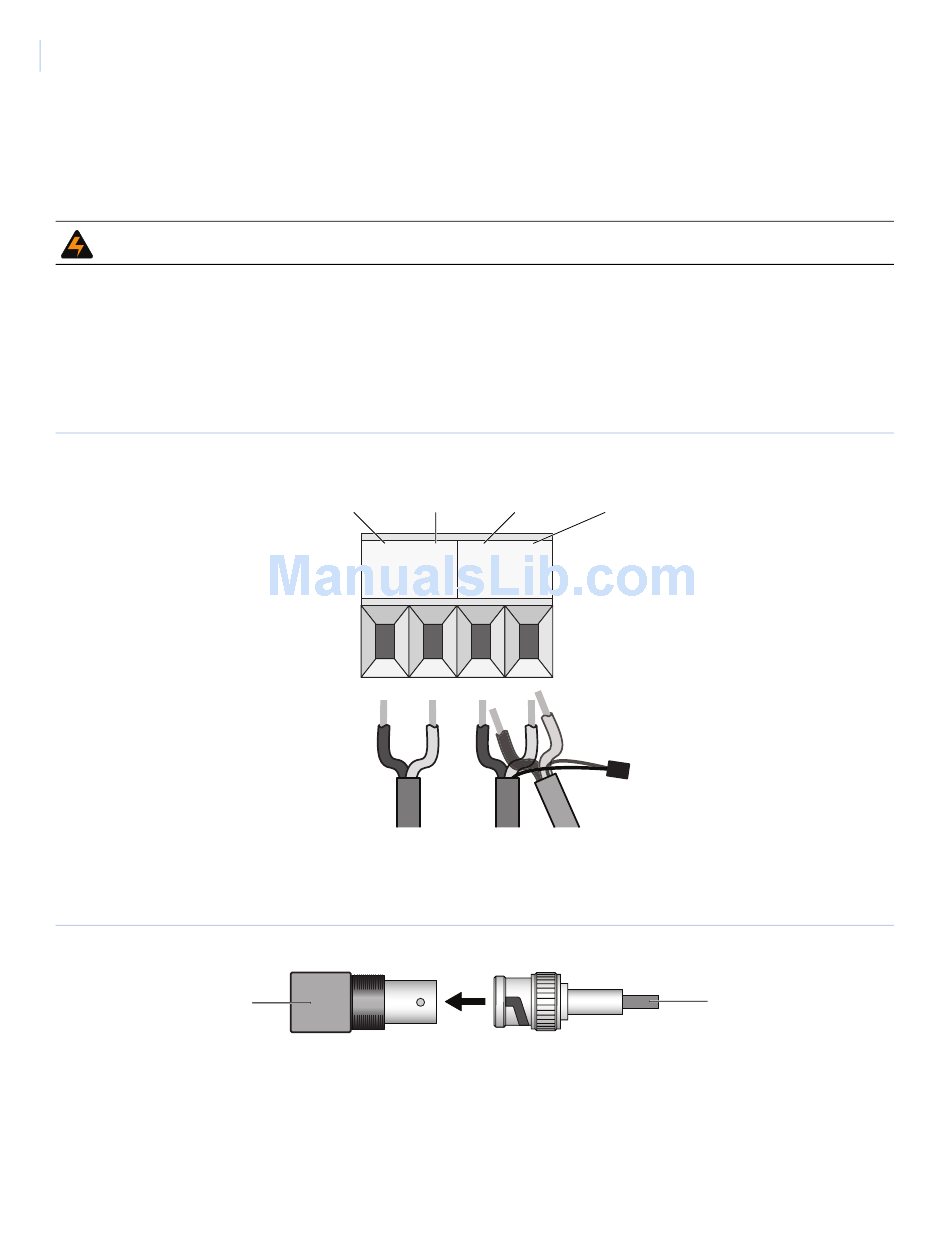

Figure 19. Data connections
2. Connect the facility video cable (Figure 20).
Note: Use only crimp-on BNC connectors. Do not use screw-on connectors.
Figure 20. Video connection
If you are installing UTP video, use the UTP terminals on the six-pin terminal strip. It provides
connections for UTP video. If you are installing coaxial video, locate the BNC connector.
Note: UTP, which is polarity sensitive, is only available on standard modules with a six-pin connector.
Auxiliary B
RS-485 –
B A B A
BNC
Auxiliary A Primary B
RS-485 + RS-485 –
Primary A
RS-485 +
Coaxial video
