Camera assembly preparation and installation

Before you install the camera assembly in the housing, you should set the address and protocol DIP switches.
CyberDome II has two multiposition DIP switch blocks: one on the upper board and one on the main board of
the camera assembly (Figure 23). These DIP switches set the communication protocol and assign the camera a
site address number respectively.

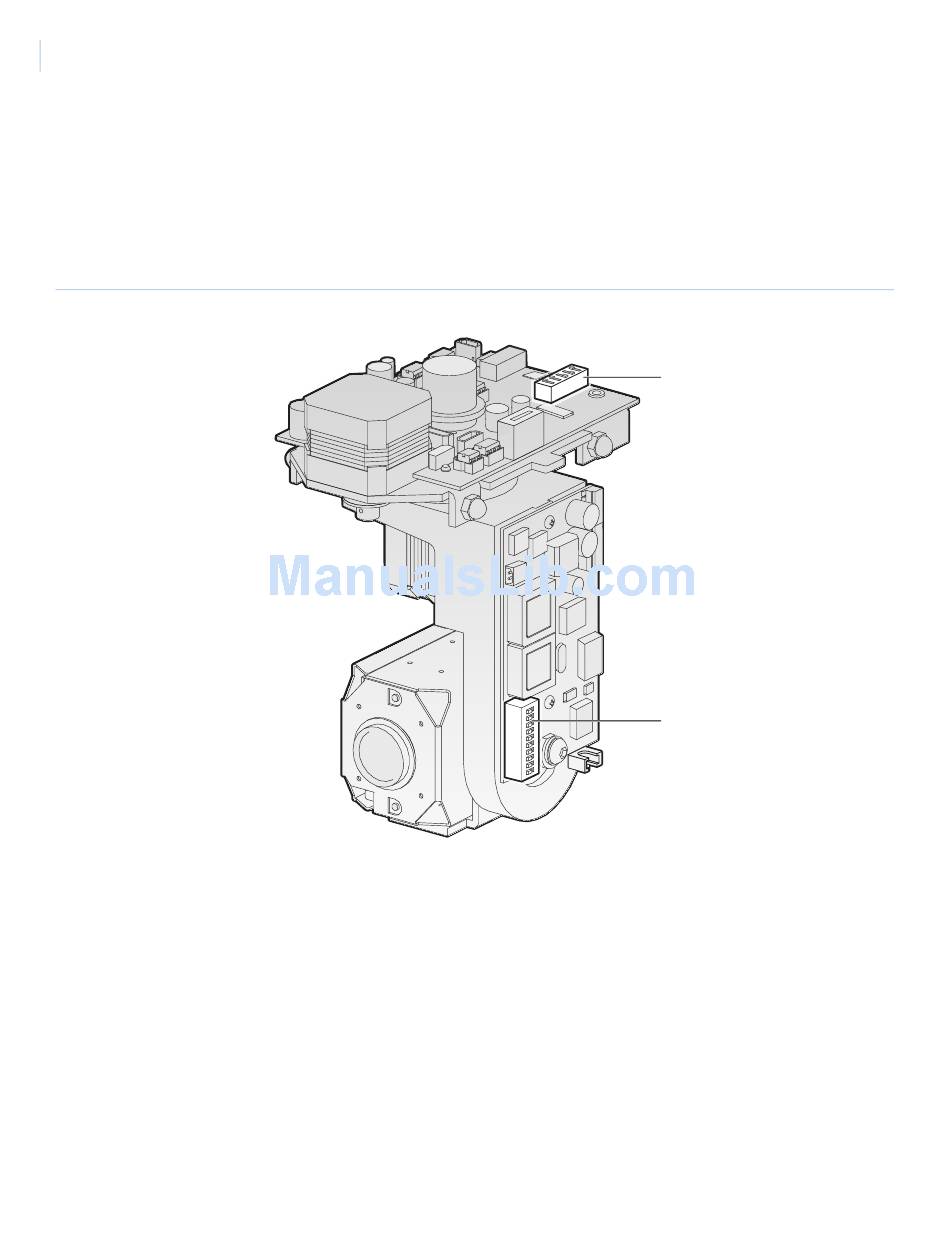

Figure 23. Protocol and site address DIP switch blocks
Protocol DIP switch block
Site address DIP switch block
