System requirements

For proper operation, adhere to the following operational, load, cable, and power requirements for
CyberDome II domes.

Operational requirements

CyberDome II contains a built-in receiver that decodes commands originating from a compatible controlling
device, such as a keypad or ASCII control software. A minimum of one controlling device is required for
operation, as shown in Figure 1. In this typical DVR system, an operator can pan, tilt, and zoom the camera,
find presets, and start preset and ShadowTours from the keypad.

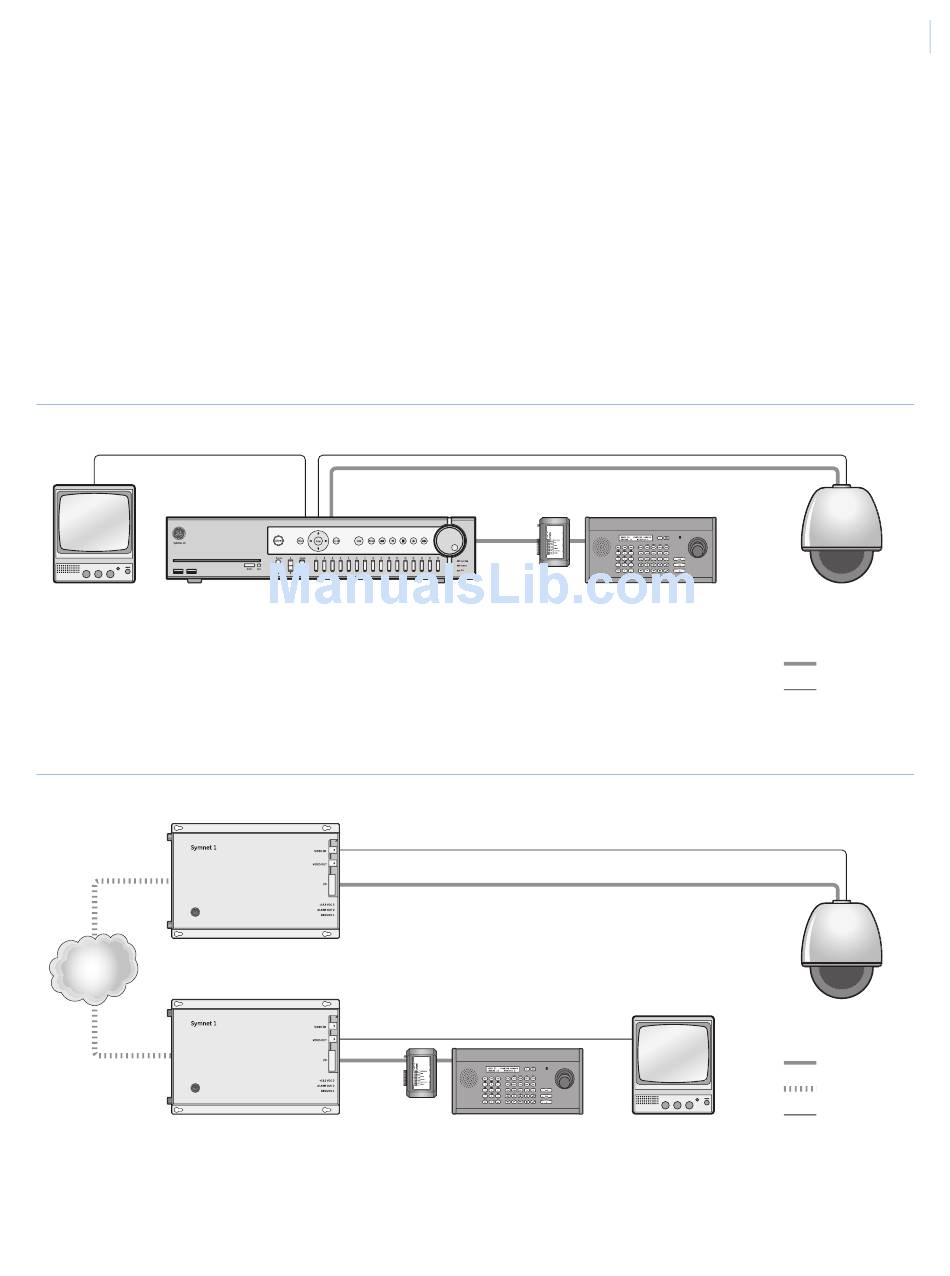

Figure 1. Typical DVR system
CCTV
monitor
Figure 2 shows a typical network system, and Figure 3 on page 4 shows an enhanced system.
Figure 2. Typical IP system
IP encoder/decoders
SymDec 16 DVR
(IP digital video recorder)
SymNet I/O box
I/O box KTD-405A
controller keypad
KTD-405A
controller keypad monitor
Introduction
CyberDome II
RS-485
Video
CyberDome II
RS-485
TCP/IP
Video
CCTV
