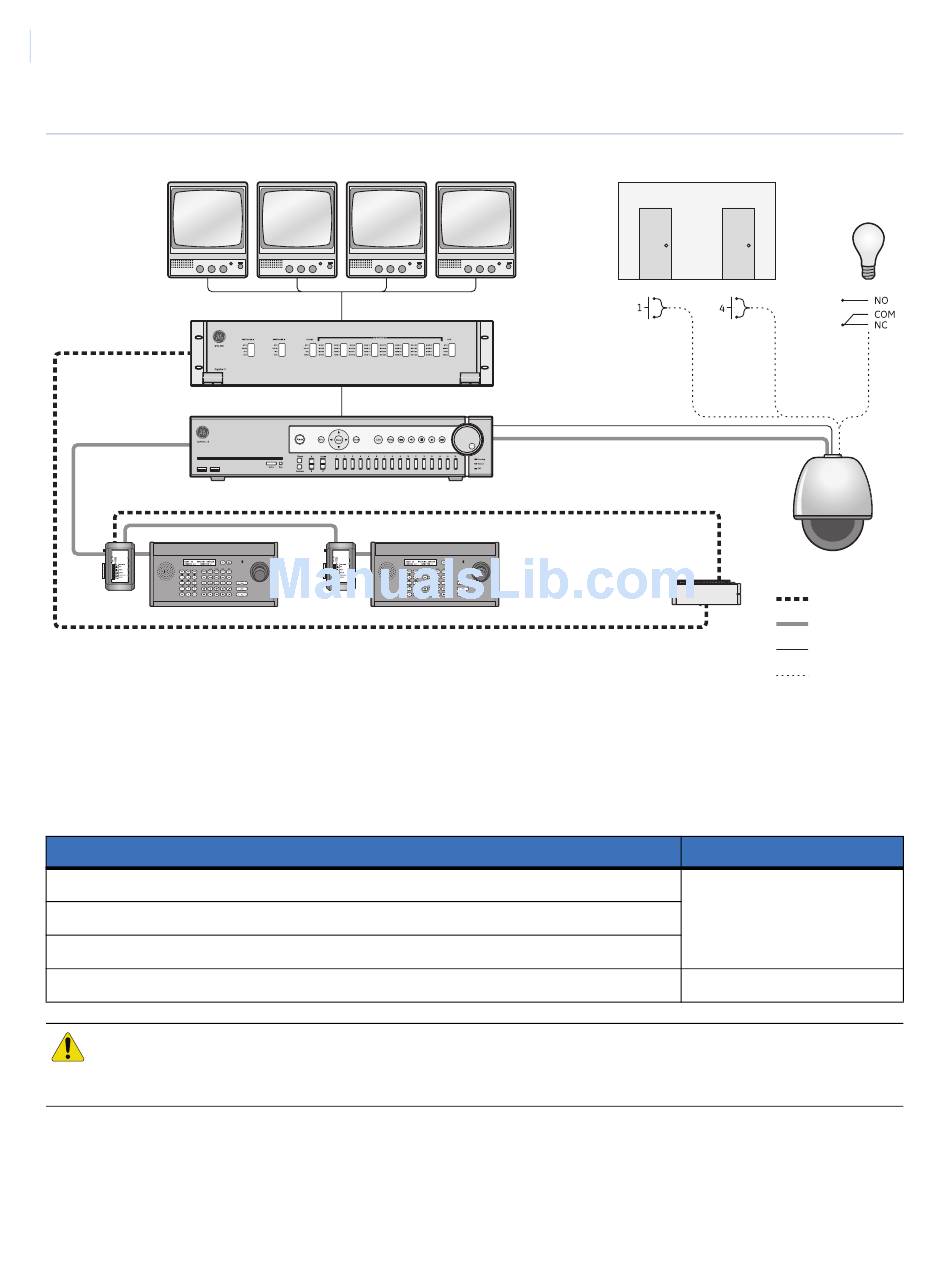

Figure 3. Typical enhanced system
CCTV monitors
KTD-440 switcher
SymDec 16 DVR
I/O box KTD-405A
controller keypad

Minimum load requirements

Table 1 lists the load requirements for all CyberDome II dome configurations.
Table 1. Minimum load requirements of dome configurations
Dome configuration
Rugged, cast aluminum pendant-mount housing (with any mount)
Heavy-duty housing (with any mount)
Swing-arm mount (with any dome except heavy duty or flush-mount)
All other dome and mount configurations
CAUTION: For safety, the mounting surface, hardware, and procedure used for securing the dome must support
the weight of the dome, mount (if used), cables, and any structural or environmental vibration according
to local codes.
I/O box KTD-405A
controller keypad
Alarm inputs
(dry contacts)
CyberDome II
Example site ID #15
KTD-83 data
distributor
Minimum load
100 lb.
50 lb.
Relay
outputs
RS-422
RS-485
Video
Alarms
