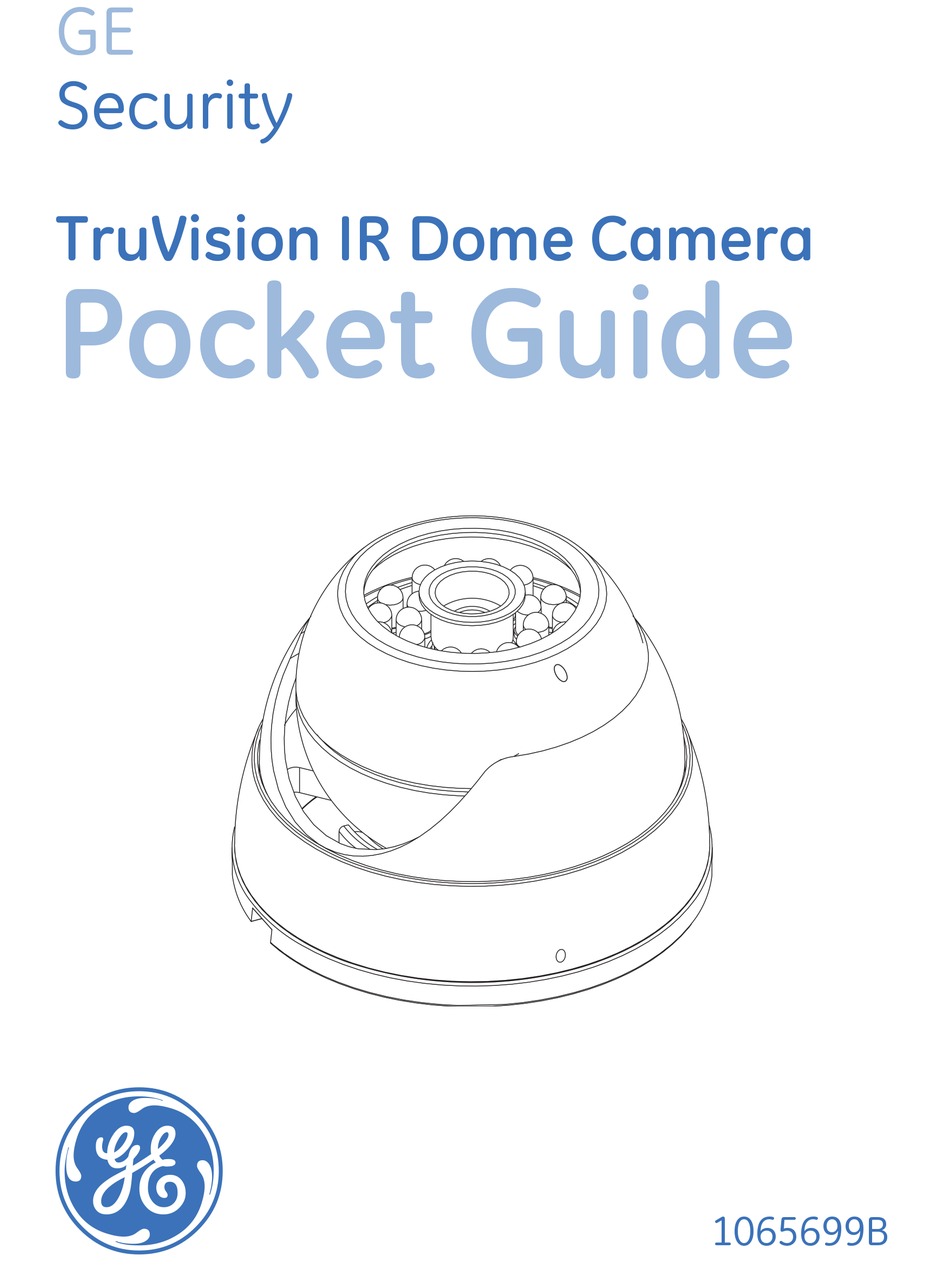

- Page 1 Security TruVision IR Dome Camera Pocket Guide 1065699B...
- Page 2 Copyright Copyright © 2010 GE Security. All rights reserved. This document may not be copied in whole or in part or otherwise reproduced without prior written consent from GE Security except where specifically permitted under US and international copyright law.
- Page 3 2004/108/EC (EMC directive). Non-European manu- directives facturers must designate an authorized representa- tive in the Community. Our authorized manufacturing representative is GE Security B.V., Kelvinstraat 7, 6003 DH Weert, Nederland. 2002/96/EC (WEEE directive). Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
-
Page 5: Table Of Contents
TruVision IR Color Dome Cameras Pocket Guide Contents Contents ..... . . v Introduction ....1 Overview . -
Page 7: Introduction
TruVision IR Color Dome Camera Pocket Guide Introduction This is the GE TruVision IR Color Dome Camera Pocket Guide for models TVD-TIR-SR, TVD-TIR-MR, and TVD-TIR(B)-HR. This pocket guide describes a standard installation. Overview The TruVision IR Color Dome Camera consist of the following: •... - Page 8 Refer to figure when performing the camera setup procedures. LED IR lights Light sensor Lens...
- Page 9 TruVision IR Color Dome Camera Pocket Guide Zoom Focus Note: Zoom and focus only available on the TVD-TIR-MR and TVD-TIR(B)-HR models.
-
Page 10: Installation
Installation To install the TruVision IR Color Dome Camera, do the following. Using the mounting bracket as a template, place it level against the mounting surface and mark the posi- tion of the mounting holes. Following all local codes, drill and prepare the mounting holes. - Page 11 TruVision IR Color Dome Camera Pocket Guide While holding the camera in place, set the camera shroud over the camera. Note: If you are installing on the gang box or routing the wires through the wall, connect a 75 ohm coaxial video cable to the camera’s...
- Page 12 Check the picture and adjust the camera position and angle as required. Note: When installing a TVD-TIR- MR or TVD-TIR(B)-HR camera, tilting the camera housing past 80° may result in reflection of IR illumination from the camera base into the lens. This can distort or obscure the picture in night mode.
-
Page 13: Specifications
TruVision IR Color Dome Camera Pocket Guide Specifications TVD-TIR-SR specifications Image sensor 1/3 in. color CCD sensor Resolution 380TVL Total pixels NTSC: 537(H) x 505(V) PAL: 537(H) x 597(V) Effective pixels NTSC: 510(H) x 492(V) PAL: 500(H) x 582(V) Synchronizing system 2:1 internal... - Page 14 Current 120 mA (IR OFF) 270 mA (MAX) Power consumption 5.9 W maximum Weight 0.86 lb. (0.39 kg) Dimension (H x diam.) 2.7 x 3.7 in. (69 x 94 mm) Operating temp. 14 to 122°F (-10 to 50°C) Storage temp. -4 to 158°F (-20 to 70°C) TVD-TIR-MR and TVD-TIR(B)-HR specifi- cations...
- Page 15 TruVision IR Color Dome Camera Pocket Guide Electronic shutter NTSC: 1/60 to 1/100,000 second PAL: 1/50 to 1/100,000 second Variable focal lens 3.5 to 8 mm S/N ratio More than 49 dB (AGC off) Minimum illumination TVD-TIR-MR: 0.3 lux color / F2.0 0.00 lux IR on...
- Page 16 Weight 1.7 lb. (0.76 kg) Dimension (H x diam.) 3.25 x 4.7 in. (82.5 x 119 mm) Operating temp. 14 to 122°F (-10 to 50°C) Storage temp. -4 to 158°F (-20 to 70°C)
-
Page 17: Contacting Us
TruVision IR Color Dome Camera Pocket Guide Contacting us For help installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, see Contact information on page 14. Note: Be ready at the equipment before calling. - Page 18 Training. To view any available online training for GE Security products, select Training link. (Online training is not available for all products.) Warranty and terms. From the Customer Support menu, select Return and Warranty Policy Statement Terms and Conditions Policy Statement.
- Page 19 TruVision IR Color Dome Camera Pocket Guide...
-
Page 20: Contact Information
Contact information North America T: 888 GE Security. Toll-free in US, Puerto Rico, Canada. 503.885.5700 outside the toll-free area. F: 888.329.0332 (Tualatin tech support) 561.998.6232 (Boca Raton tech support) nstechsrv@ge.com gesecurity.customerservice@ge.com Latin America T: 305.593.4301F:305.593.4300 InfraSec.TechnicalServicesLatinAmerica@ge.com InfraSecCustomerService.LatinAmerica@ge.com Europe, Middle East, and Africa W: At www.gesecurity.eu, select...
