4. System Status Codes:

In the event that the safety system detects an error, the LEDs on the Switch Box will display a status code to
indicate what error has been detected. Table 1 shows the different status codes which can be displayed. A
complete description of each status code and the necessary corrective action is provided below.
Green LED
Symbol Key:
WARNING! Always switch both the Disconnect Switch and the Main Power Switch
to OFF before performing adjustments or maintenance to the saw.
30 SawStop 10" Industrial Cabinet Saw
Industrial Cabinet Saw Rev. 2 Ma30 30
System Status Codes
Red LED
Green LED blinks fast
Green LED blinks slowly
Green LED is on solid
Status
System Initializing
System Ready
Replace the Brake Cartridge
Blade is Coasting Down
Bypass Mode is ON
Switch the Start/Stop Paddle to OFF
Turn the Cartridge Key to ON
Close Belt Access Door and Motor Cover
Adjust Position of the Brake Cartridge
Contact was Detected During Standby
Contact was Detected During Bypass
Overload Due to Wet Wood

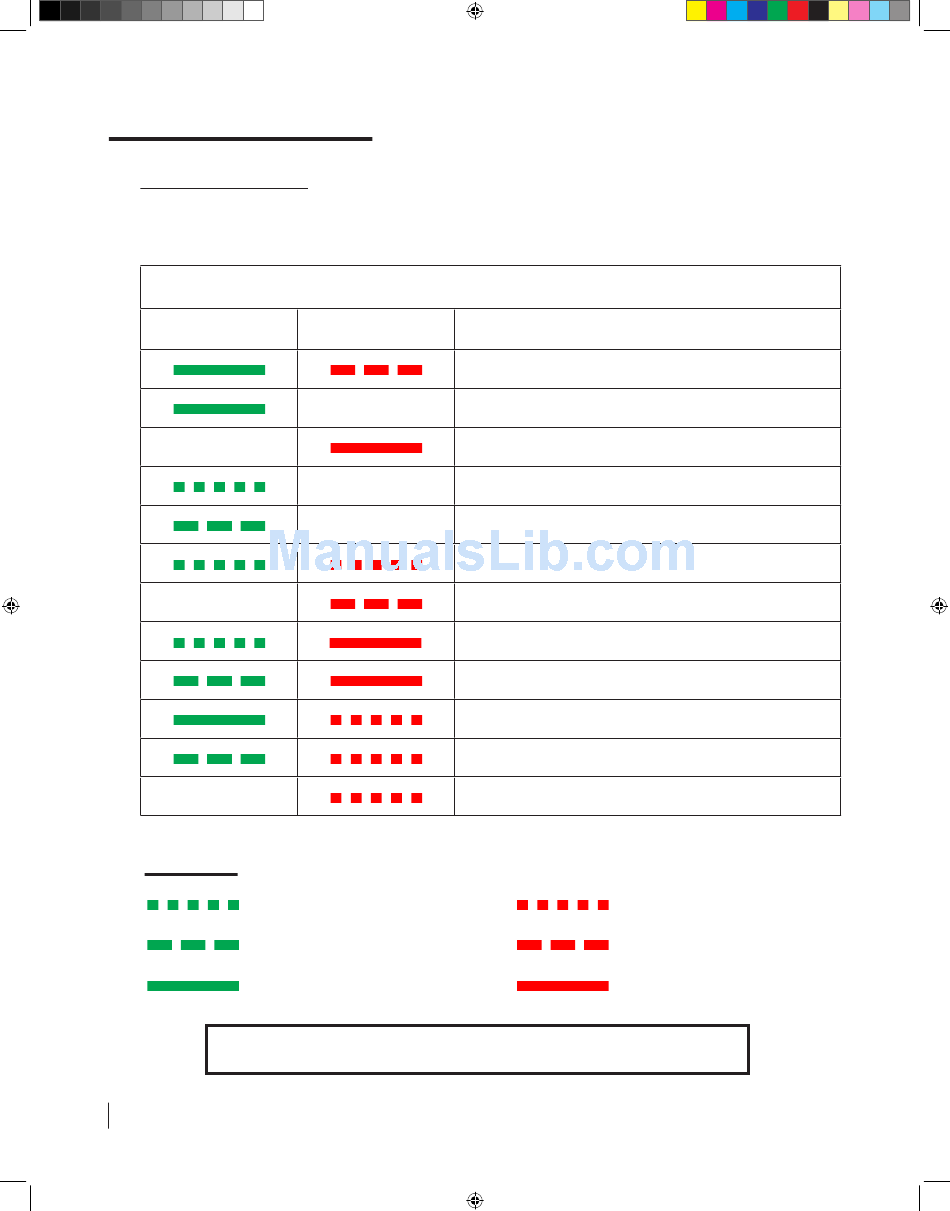

Table 1
Red LED blinks fast
Red LED blinks slowly
Red LED is on solid
