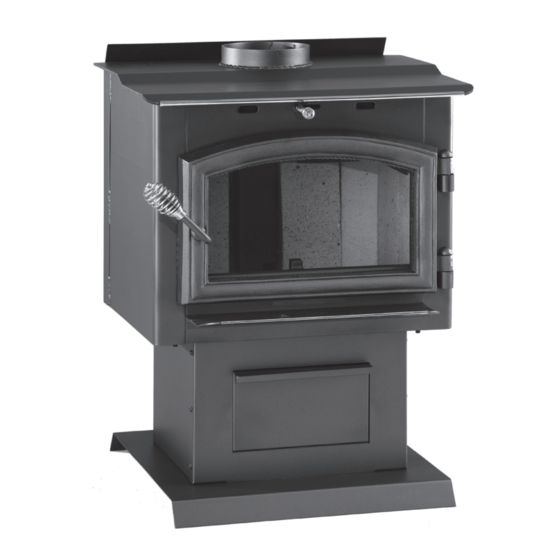

Vogelzang International Shiloh TR002 Owner's Manual

High-efficiency woodstove
Hide thumbs Also See for Shiloh TR002:
Table of Contents

Advertisement

Quick Links

HIgH-EffIcIEncy WOOdSTOvE
Model TR002 Owners Manual
READ ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLINg OR OPERATINg
ThIS STOVE.
FAILURE TO FOLLOw INSTRUCTIONS
MAY RESULT IN PROPERTY DAMAgE,
BODILY INjURY, OR EVEN DEATh.
REFER TO MARkINgS ON
STOVE LABELS FOR
ADDITIONAL INFORMATION.
VGZ-027 / 20100909.1
THE SHILOH
EPA Certified (4.21 grams/hr)
(save this manual for future reference)
™
This stove meets U.S. Test Standard:
UL 1482-1996
NOTE: INSTALLATION MUST BE
COMPLETED BY A qUALIFIED
hEATINg EqUIPMENT INSTALLER!
DO nOT USE ThIS STOVE IN A
MOBILE hOME, MANUFACTURED hOME,
TENT OR TRAILER – No ExcEptioNs!
Vogelzang International Corporation
400 West 17th Street
Holland, Michigan 49423
www.vogelzang.com
Phone: 1-616-396-1911
Fax: 1-616-396-1971
TR002 Shiloh™ / Page 1

Advertisement

Table of Contents
loading

Related Manuals for Vogelzang International Shiloh TR002

Summary of Contents for Vogelzang International Shiloh TR002

  • Page 1 DO nOT USE ThIS STOVE IN A REFER TO MARkINgS ON STOVE LABELS FOR MOBILE hOME, MANUFACTURED hOME, ADDITIONAL INFORMATION. TENT OR TRAILER – No ExcEptioNs! Vogelzang International Corporation 400 West 17th Street Holland, Michigan 49423 www.vogelzang.com Phone: 1-616-396-1911 Fax: 1-616-396-1971 VGZ-027 / 20100909.1...

  • Page 2: Safety Instructions

    sAFEtY iNstRUctioNs SAFETY NOTICE: IF ThIS STOVE IS NOT PROPERLY INSTALLED, A hOUSE/BUILDINg FIRE MAY RESULT. FOR YOUR SAFETY, CONTACT LOCAL BUILDINg OR FIRE OFFICIALS ABOUT PERMITS, RESTRICTIONS, AND INSTALLATION REqUIREMENTS FOR YOUR AREA. READ ALL INSTRUCTIONS CAREFULLY. Your insurance company should be able to recom- 1.
  • Page 3 sAFEtY iNstRUctioNs continued… in handling. Clean with soap and warm water NOTE: A PROFESSIONAL, LICENSED hEAT- when stove is not hot. Do not use any acids INg AND COOLINg CONTRACTOR MUST or scouring soap, as these solvents wear and dull BE CONSULTED IF YOU hAVE qUESTIONS the finish.

  • Page 4: Table Of Contents

    tAblE oF coNtENts SAFETY PRECAUTIONS ................2 – 3 TOOLS AND MATERIALS REqUIRED FOR INSTALLATION ......5 ASSEMBLY INSTRUCTIONS ................5 LOCATINg ThE STOVE ..................7 Minimum Clearances ................. 7 – 8 INSTALLATION ....................9 CONNECTOR PIPE INSTALLATION ..............9 FIREBRICk ASSEMBLY ..................

  • Page 5: Tools And Materials Required For Installation

    AssEmblY iNstRUctioNs NoticE: Vogelzang international corp. grants no warranty, stated or implied, for the installation or maintenance of your wood stove and assumes no responsibility of any incidental or consequential damages. TOOLS AND MATERIALS REqUIRED 2. Remove parts and hardware pack located inside FOR INSTALLATION firebox.
  • Page 6 AssEmblY iNstRUctioNs . . . continued 8. Align four (4) corner mounting studs with holes in pedestal top (Figure 7). Secure with four (4) hex nuts. 9. Tip the stove assembly upright. 10. Set the ash drawer inside the open box formed by the pedestal front and sides.

  • Page 7: Locating The Stove

    locAtiNg stoVE 1. The stove must be placed on solid concrete, solid 5. Recheck clearances from the stove, con- masonry, or when installed on a combustible floor, nector stove pipe, and cor ner clearances on a listed floor protector, such as hy-C or imperial using the illustrations in figures 10–12 and Model Ul3648BK or equivalent with 0.8 R-factor.

  • Page 8: Minimum Clearances

    locAtiNg stoVE continued… Figure 11a – Front View Figure 11b – side View minimum clearance Dimensions minimum clearance Dimensions from combustible surfaces from combustible surfaces Figure 12 – top View minimum corner clearances from combustible surfaces Page 8 / TR002 Shiloh™ VGZ-027 / 20100909.1...

  • Page 9: Connector Pipe Installation

    coNNEctoR pipE iNstAllAtioN cause smoke spillage. Where possible, use only 1. The crimped end of the stovepipe fits inside the corrugated (non adjustable) elbows. These stove flue collar. install additional pipe and elbow provide a better seal. with the crimped end towards the stove. This will allow any condensation in the flue to run back into 7.

  • Page 10: Chimney Connections

    cHimNEY coNNEctioNs MASONRY ChIMNEY The stove must be connected to either a lined ma- sonry or manufactured metal chimney built and tested Before using an existing masonry chimney, to the specifications listed on the previous pages. clean the chimney, inspect the flue liner and make Chimneys perform two functions: any repairs needed to be sure it is safe to use.
  • Page 11 cHimNEY coNNEctioNs continued … MANUFACTURED ChIMNEY REFER To ChiMNEY AND ChiMNEY CoNNEC- ToR MAKER’S iNSTRUCTioNS FoR iNSTAllATioN AND USE. Use only 6” diameter listed chimney Ul 103 hT. Chimney made to this listing is high Temperature rated to 2100 degrees Fahrenheit. Use chimney from only one manufacturer.
  • Page 12 cHimNEY coNNEctioNs continued … or a knowledgable inspector. Consult your insurance 2. install a metal or fire clay (5/8” minimum thickness) company if you cannot find a qualified expert. thimble. Make sure the thimble is flush with the inner surface of the chimney liner and does not protrude CAUTION: NOT ALL FIREPLACES ARE SUIT- into the flue (see figure 13 on page 9).

  • Page 13: Operating Instructions

    opERAtiNg iNstRUctioNs ThIS STOVE IS DESIgNED TO BURN CAUTION: hOUSE FIRE hAZARDS wOOD FUEL ONLY! • Do NoT SToRE wooD oN FLooR PRoTEC- hardwood, 15” to 17” should be split and air dried TOR, UNDERNEATh STOVEPIPE OR ANY- (seasoned), for 6 months to obtain maximum burning whERE wIThIN MINIMUM CLEARANCES FROM efficiency.

  • Page 14: Adding Fuel

    opERAtiNg iNstRUctioNs continued . . . continue to burn, open the air control to re-establish the firebox. TiP: if ash or coals remain in the stove, secondary flames then slowly reset the air control to the make sure to clear them away from the lower Pri- desired setting.

  • Page 15: Service Hints

    opERAtiNg continued . . . sERVicE HiNts 8. Do not overfire the stove (overfiring is when any par t of the stove exterior or chimney A fire in the firebox may be smothered by pouring connections glow). a large quantity of coarse salt, baking soda, or cool ashes on top of the fire.

  • Page 16: Glass Gasket Replacement

    sERVicE HiNts continued . . . enough to keep the chimney warm preventing this products include, A.W. Perkins Co. (www.awperkins. condensation. com) or Rutland Products (www.rutland.com). After extensive use, the gasket material which 3. if the fire burns well but sometimes creates exces- provides glass and door seal may lose it’s resiliency sive smoke or burns slowly, it may be caused by and will need to be replaced.
  • Page 17 oRDERiNg pARts - tRoo2 sHiloH™ stoVE When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part Description. Use the illustrations and part lists provided to identify parts. 6 (9) 7 (9) 8 (9) 11, 12, 13, 28 Part No.
  • Page 18 pARts - tR002 sHiloH™ HigH-EFFiciENcY stoVE When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part Description. Use the illustrations and part lists provided to identify parts. Part No. Description qty. Door Assembly (complete) handle Assembly (complete) ....

  • Page 19: Floor Protector Calculations

    FlooR pRotEctoR mAtERiAl cAlcUlAtioNs This stove has been tested for and must be installed on a floor protector with the proper Thermal Resistance or R-value as stated in the installation instructions on page 3, “Locating Stove” step 1, of this manual. If the floor protector materials listed in the instructions are not available, materials with an equivalent R-value may be substituted.
  • Page 20 cHimNEY coNNEctoR sYstEms & clEARANcEs A. Brick Masonry Minimum 3.5˝/89mm thick brick masonry all framed into combustible wall with a minimum of 12˝/305mm brick separation from clay liner to combustibles. The fireclay liner shall run from outer surface of brick wall to, but not beyond, the inner surface of chimney flue liner and shall be firmly cemented in place.
  • Page 21 VGZ-027 / 20100909.1 TR002 Shiloh™ / Page 21...
  • Page 22 “FOR gOD SO LOVED ThE wORLD ThAT hE gAVE hIS ONLY BEgOTTEN SON, ThAT whOEVER BELIEvES IN HIM SHaLL NoT PERISH BUT HavE ETERNaL LIFE” jOhN 3:16 MADE IN ChINA Vogelzang International Corporation 400 West 17th Street Holland, Michigan 49423 www.vogelzang.com...
