Vogelzang International PONDEROSA TR007 Owner's Manual

Vogelzang International PONDEROSA TR007 Owner's Manual

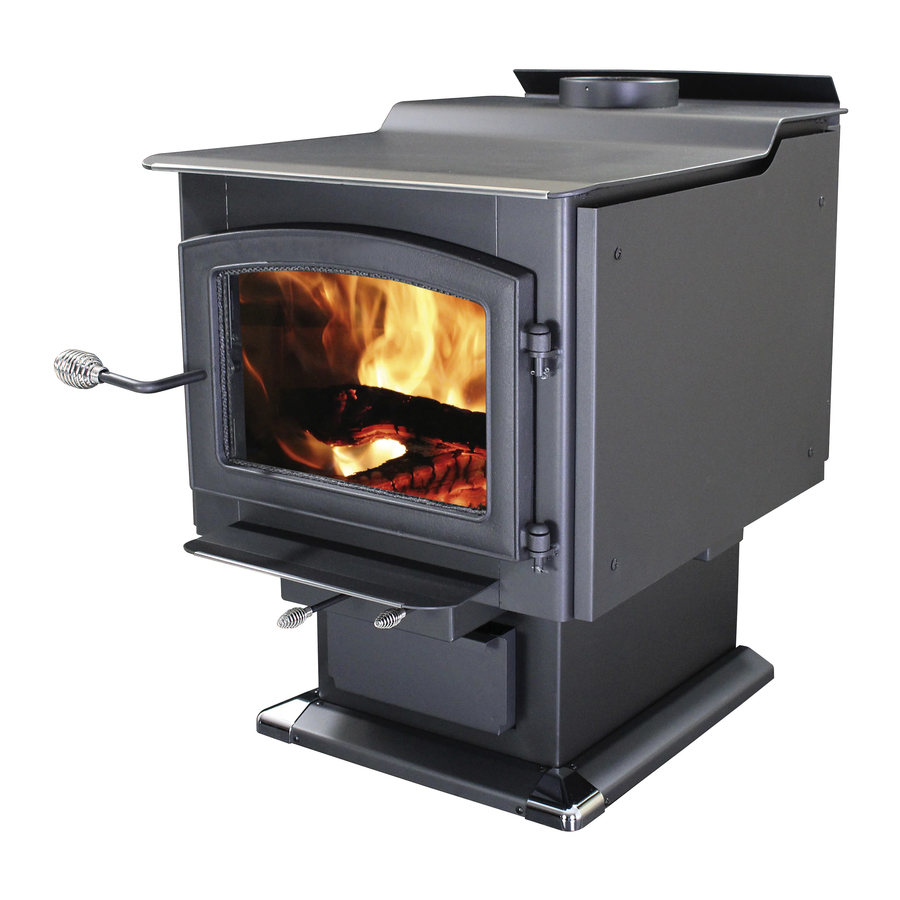

High-efficiency woodstove
Hide thumbs Also See for PONDEROSA TR007:

Advertisement

HIGH-EFFICIENCY WOODSTOVE
Model TR007 Owners Manual
Le manuel de langue français est disponible à www.vogelzang.com
READ ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING
THIS STOVE. FAILURE TO FOLLOW INSTRUC-
TIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY, OR EVEN DEATH.
REFER TO MARKINGS ON STOVE LABELS FOR
ADDITIONAL INFORMATION.
SAFETY NOTICE: IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE/BUILDING FIRE MAY
RESULT. FOR YOUR SAFETY, CONTACT LOCAL OR MUNICIPAL BUILDING OR FIRE OFFICIALS
ABOUT PERMITS, RESTRICTIONS, AND INSTALLATION REQUIREMENTS FOR YOUR AREA.
VGZ-031 / 20120619.1
PONDEROSA
EPA Certified (3.20 grams/hr.)
(Save These Instructions)
French language manual is available at www.vogelzang.com
www.vogelzang.com
This stove meets test standards:
US: UL 1482-2011 & CDN: ULC-S627-00
NOTE: IT IS RECOMMENDED INSTALLATION
BE COMPLETED BY A QUALIFIED HEATING
EQUIPMENT INSTALLER!
ROOM HEATER, SOLID FUEL TYPE, ALSO
FOR USE IN MOBILE HOMES (USA ONLY).
Vogelzang International Corporation
400 West 17th Street
Holland, Michigan 49423
www.vogelzang.com
Phone: 1-616-396-1911
Fax: 1-616-396-1971
TR007 PONDEROSA™ / Page 1
Report No. 180-S-09-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PONDEROSA TR007 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vogelzang International PONDEROSA TR007

  • Page 1 SAFETY NOTICE: IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE/BUILDING FIRE MAY RESULT. FOR YOUR SAFETY, CONTACT LOCAL OR MUNICIPAL BUILDING OR FIRE OFFICIALS ABOUT PERMITS, RESTRICTIONS, AND INSTALLATION REQUIREMENTS FOR YOUR AREA. Vogelzang International Corporation 400 West 17th Street Holland, Michigan 49423 www.vogelzang.com...
  • Page 2: Safety Precautions

    DO NOT CONNECT THIS UNIT TO A CHIMNEY tested with the use of grates, andirons or other means FLUE SERVING ANOTHER APPLIANCE. of elevating the fire and must not be used. Page 2 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 3 SAFETY INSTRUCTIONS continued… 18. During the first 12 to 15 fires the special paints and pro- UNLESS SPECIFICALLY APPROVED FOR SUCH tective oils used in construction of your stove may give INSTALLATIONS. off some smoke and odor while they are curing. This 30.
  • Page 4: Table Of Contents

    CHIMNEY & STOVE MAINTENANCE LOG ............25 NOTE: A PROFESSIONAL, LICENSED HEAT- ING AND COOLING CONTRACTOR MUST BE CONSULTED IF YOU HAVE QUESTIONS REGARDING THE INSTALLATION OF THIS SOLID FUEL BURNING APPLIANCE. Page 4 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 5: Tools And Materials Required For Installation

    ASSEMBLY INSTRUCTIONS NOTICE: Vogelzang International Corp. grants no warranty, stated or implied, for the installation or maintenance of your wood stove and assumes no responsibility of any incidental or consequential damages. TOOLS AND MATERIALS REQUIRED 2. Stove may be lightened for positioning by removing FOR INSTALLATION fire brick.
  • Page 6: Locating Stove

    UL 103 HT high-temp connector FIREBRICKS TOWARDS THE REAR SO NO pipe. Secure connector pipe to the flue collar with GAPS REMAIN BETWEEN BRICKS. three (3) equally spaced sheet metal screws to Page 6 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 7: Locating The Stove

    LOCATING STOVE . . . continued CLEARANCES | TOP VIEW COMBUSTIBLE CONSTRUCTION IN ACCORDANCE WITH US NFPA 211 DASHED LINES SHOW HORIZONTAL CHIMNEY CONNECTOR BACKWALL AND ADDITIONAL FLOOR PROTECTOR REQUIRED BENEATH 17"/ AND EXTENDING 2"/50.8mm BEYOND 40"/ EACH SIDE OF CONNECTOR PIPE 43.2cm 102cm 8"/21cm min.
  • Page 8: Fire Brick Assembly

    With lower exhaust temperatures, it is important that the chimney is correctly sized to the Page 8 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 9: Connector Pipe Installation

    CONNECTOR PIPE INSTALLATION 2. Horizontal pipe runs must slope upwards NOTE: CONNECTOR PIPE IS NOT INCLUDED. towards the chimney at least 1/4˝/6.4mm per foot TO PURCHASE, VISIT YOUR LOCAL HARD- of horizontal run. WARE, HOME, OR BUILDING CENTER. 3. You must have at least 18˝/457mm of clearance between any horizontal piping and the ceiling.
  • Page 10: Mobile Home Installation Instructions

    3/4˝/19mm diameter rod. 9. If the chimney exits the Mobile Home at a location other than through the roof, and exits a point 7 ft. Figure 9 – Mobile Home Installation Page 10 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 11: Chimney Connections/Draft

    CHIMNEY CONNECTIONS The stove must be connected to either a lined ma- MASONRY CHIMNEY sonry or manufactured metal chimney built and tested The chimney must be a code-approved, masonry to the specifications listed on the previous pages. chimney with flue liner. Before using an existing ma- Chimneys perform two functions: sonry chimney, clean the chimney, inspect the flue 1).
  • Page 12 If you have any question regarding the condition of the chimney, consult a qualified licensed Figure 13 - Chimney Connection to Firebox through Masonry Wall contractor, qualified engineer, competent mason, cer- continued on next page Page 12 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 13 CHIMNEY CONNECTIONS continued … 8˝/203mm of liner must remain below the entry tified Chimney Sweep, or a knowledgeable inspector. position. When locating the stove and stovepipe, all Consult your insurance company if you cannot find a minimum clearances must be observed from com- qualified expert.
  • Page 14: Chimney Connection Systems & Clearances

    24 gauge thickness. Fasteners used to secure chimney section shall not penetrate chimney flue liner. Page 14 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 15: Operating Instructions

    OPERATING INSTRUCTIONS THIS STOVE IS DESIGNED TO BURN CAUTION: HOUSE FIRE HAZARDS WOOD FUEL ONLY! Hardwood, 18˝ to 20˝ / 45cm to 50cm should be TOR, UNDERNEATH STOVEPIPE, OR ANY- air dried (seasoned), for a minimum of 6 months. Logs WHERE WITHIN MINIMUM CLEARANCES FROM grater than 6˝/152mm in diameter should be split.
  • Page 16: Starting A Fire

    A LIFETIME OF SERVICE. when air is allowed to circulate to all areas of the firebox. TIP: If ash or coals remain in the stove, continued on next page Page 16 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 17: Adding Fuel

    make sure to clear them away from the Lower Fuel load size can vary but should be kept 1–2˝ Primary Air Orifice (LPAO) and rake a slight (1˝ – (25mm-50mm) below the secondary air tubes. Also 2˝/25mm-50mm wide) trough down the center of position the fuel to leave space so the air from the inlet the coal bed from front to back prior to loading the can work between the pieces of fuel.
  • Page 18: Service Hints

    Be aware that the hotter Page 18 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 19: Glass Care & Replacement

    SERVICE HINTS continued . . . chimney draw and possibly create a chimney fire. 1. Atmospheric Pressure and Air Supply 5. Temporarily Out of Operation Atmospheric pressure that affects the draft may oc- After the fire has burned out, open the air control cur from outside the structure, inside the structure, to its fully open position.
  • Page 20: Glass Gasket Replacement

    2. Remove old door gasket and clean channel. 3. Using an approved, high temperature gasket cement, apply a thin coat in bottom of channel. 4. Starting at hinge side of door, work gasket into Page 20 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 21: Optional F-6 Blower Maintenance & Wiring Diagram

    WIRING DIAGRAM - MODEL F-6 BLOWER OPTION CAUTION: MOVING PARTS CAN CAUSE DANGER: SHOCK HAZARD. DISCONNECT INJURY. DO NOT OPERATE WITH COVER POWER SOURCE BEFORE INSTALLATION REMOVED. AND WHENEVER SERVICING BLOWER ASSEMBLY. NOTICE: ANY REPLACE- MENT WIRING MUST HAVE E Q U I VA L E N T I N S U L A - TION AND TEMPERATURE RATING (105°C).
  • Page 22: Parts - Ponderosa

    Retainer, Glass, Handle Side ..... 1 20 07-20 #5 Air Tube, Middle-Rear ......1 GK34 Gasket, Door ........1 21 07-21 #6 Air Tube, Rear ........1 Firebrick see next page Page 22 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 23: Parts - Glass Door (Glass Replacement)

    ORDERING PARTS - TR007 PONDEROSA™ STOVE When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part Description. Use the illustrations and part lists provided to identify parts. Contact us at 616-396-1911 to order parts. WG-01 Ref.
  • Page 24: Floor Protector Calculations

    Rbrick + Rmin.brd = 0.80 + 0.431 = 1.231 = Rsystem Step 4: Compare Rsystem to Rspecs Rsystem = 1.231 is larger than Rspecs of 0.893. System R-value exceeds the required specifications and therefore is an acceptable alternative. Page 24 / TR007 PONDEROSA™ Vogelzang International Corp. VGZ-031 / 20120619.1...
  • Page 25: Chimney & Stove Maintenance Log

    CHIMNEY & STOVE MAINTENANCE LOG DATE OF SERVICE PERFORMED BY DESCRIPTION VGZ-031 / 20120619.1 www.vogelzang.com TR007 PONDEROSA™ / Page 25...
  • Page 26 INSTRUCTIONS FOR SUCH USE. SEE PAGE 10. COMPANY TESTIMONY: “FOR GOD SO LOVED THE WORLD THAT HE GAVE HIS ONLY BEGOTTEN SON, THAT WHOEVER JOHN 3:16 MADE IN CHINA Vogelzang International Corporation 400 West 17th Street Holland, Michigan 49423 www.vogelzang.com Phone: 1-616-396-1911 Fax: 1-616-396-1971 Page 26 / TR007 PONDEROSA™...
