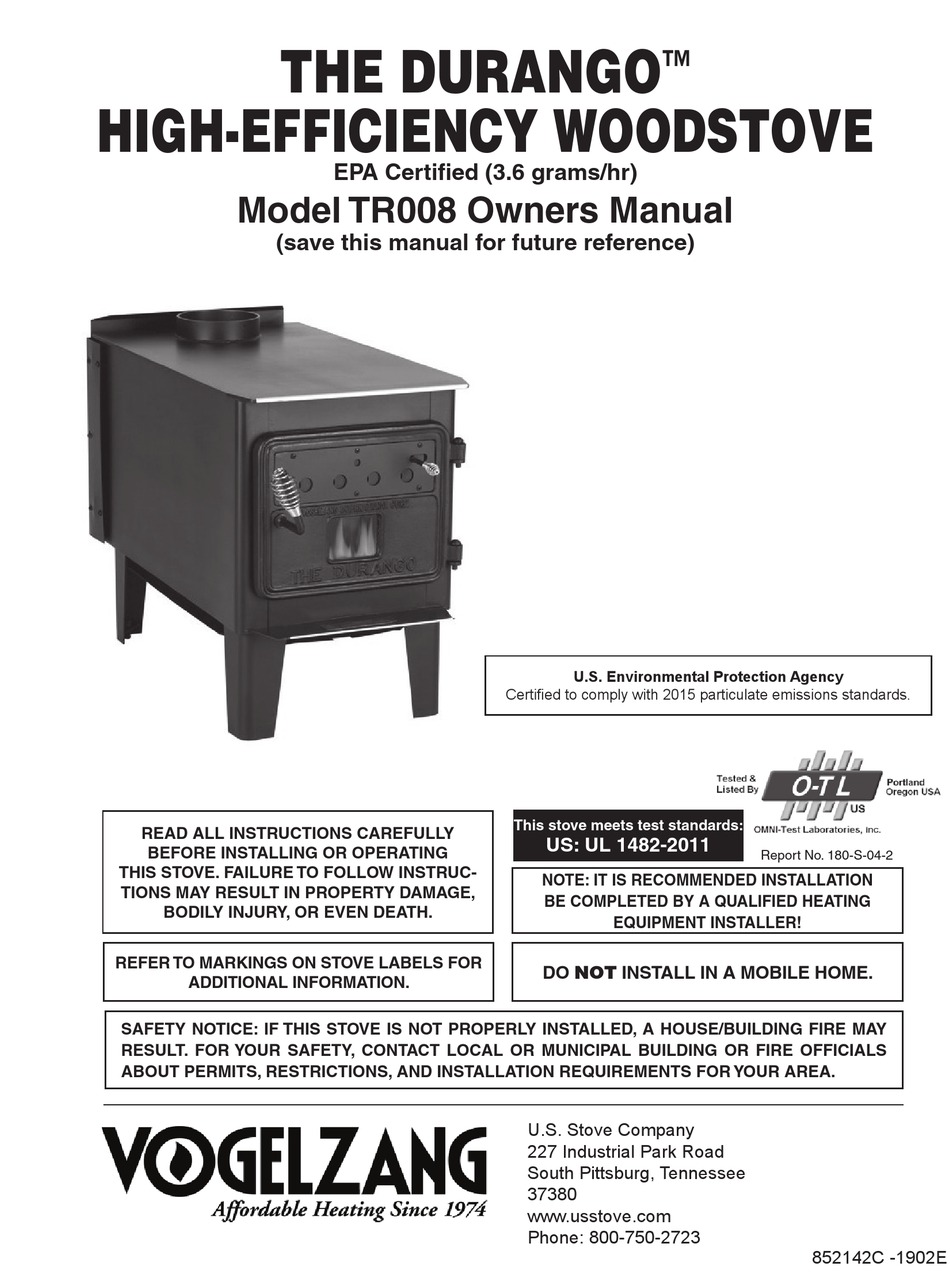

HIGH-EFFICIENCY WOODSTOVE
Model TR008 Owners Manual
READ ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING
THIS STOVE. FAILURE TO FOLLOW INSTRUC-
TIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY, OR EVEN DEATH.
REFER TO MARKINGS ON STOVE LABELS FOR
ADDITIONAL INFORMATION.
SAFETY NOTICE: IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE/BUILDING FIRE MAY
RESULT. FOR YOUR SAFETY, CONTACT LOCAL OR MUNICIPAL BUILDING OR FIRE OFFICIALS
ABOUT PERMITS, RESTRICTIONS, AND INSTALLATION REQUIREMENTS FOR YOUR AREA.

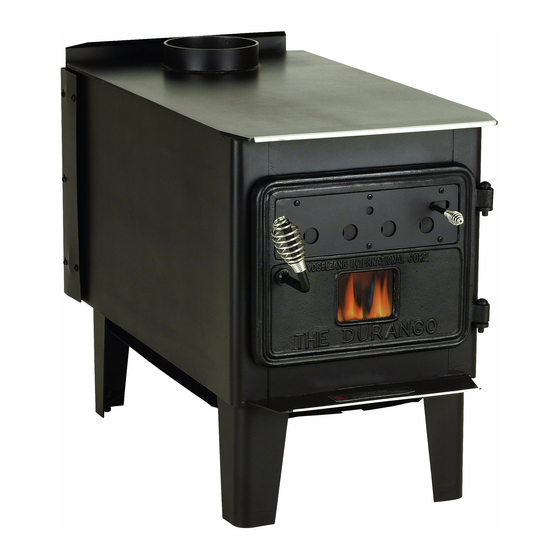

THE DURANGO
EPA Certified (3.6 grams/hr)
(save this manual for future reference)
™
U.S. Environmental Protection Agency
Certified to comply with 2015 particulate emissions standards.
This stove meets test standards:
US: UL 1482-2011
NOTE: IT IS RECOMMENDED INSTALLATION
BE COMPLETED BY A QUALIFIED HEATING
EQUIPMENT INSTALLER!
DO NOT INSTALL IN A MOBILE HOME.
U.S. Stove Company
Vogelzang
227 Industrial Park Road
South Pittsburg, Tennessee
37380
www.vogelzang.com
www.usstove.com
Phone: 800-750-2723
Report No. 180-S-04-2
852142C -1902E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR008 Durango and is the answer not in the manual?

Questions and answers

Related Manuals for Vogelzang International TR008 Durango

Summary of Contents for Vogelzang International TR008 Durango

  • Page 1 THE DURANGO ™ HIGH-EFFICIENCY WOODSTOVE EPA Certified (3.6 grams/hr) Model TR008 Owners Manual (save this manual for future reference) U.S. Environmental Protection Agency Certified to comply with 2015 particulate emissions standards. This stove meets test standards: READ ALL INSTRUCTIONS CAREFULLY US: UL 1482-2011 BEFORE INSTALLING OR OPERATING Report No.
  • Page 2 This manual describes the installation and operation of the Vogelzang, TR008 wood heater. This heater meets the 2015 U.S. Environmental Protection Agency's crib wood emission limits for wood heaters sold after May 15, 2015. Un- der specific test conditions this heater has been shown to deliver heat at rates ranging from 10,013 to 36,089 Btu/hr. Note: The BTU ratings mentioned above are based on the EPA test protocol burning dimensional Douglas Fir lumber.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS 18. The special paints used on your stove may give off some smoke and an odor while they are curing during the fi rst 12 to 15 fi res. Additional smoke and odor may be emitted from the light oils used in construction of the fi re box. This should disappear after a short period of time and not occur again.

  • Page 4: Tools And Materials Required For Installation

    ASSEMBLY INSTRUCTIONS NOTICE: U.S. Stove grants no warranty, stated or implied, for the installation or maintenance of your wood stove and assumes no responsibility of any incidental or consequential damages. TOOLS AND MATERIALS REQUIRED FOR INSTALLATION Tools: • Pencil • 6 foot Folding Rule or Tape Measure CAUTION: •...
  • Page 5 ASSEMBLY INSTRUCTIONS Fig. 3 – Back Heat Shield and Fig. 4 – Blower attaches Defl ector Assembly (top view) to rear heat defl ector 1. Attach the heat shield defl ector (#17) to the top of the back heat shield assembly with three Phillips head machine screws.

  • Page 6: Locating Stove

    LOCATING STOVE NOTE: ANY WALL CONTAINING COMBUSTIBLE MATERIAL SUCH AS WOODEN STUDS OR DRYWALL AND FACED WITH BRICK OR STONE MUST BE CONSIDERED A COMBUSTIBLE SURFACE. 6. DO NOT INSTALL THIS STOVE IN A MOBILE HOME, MANUFACTURED HOME, TRAILER OR TENT – NO EXCEPTIONS! (HUD Federal Standard: 24 CFR Ch.XX) 7.

  • Page 7: Firebrick Assembly

    LOCATING STOVE FIREBRICK ASSEMBLY Firebrick protects the stove body, extends the life of your stove and radiates heat more evenly. Check to see that all fi rebricks are in their correct positions and have not become misaligned during shipping or assembly. If removed for ease of locating stove, fi...

  • Page 8: Chimney Sizing

    CHIMNEY SIZING Today’s solid fuel heating appliances are much more effi cient than those made in the past. Your heating appliance has been designed to provide the most effi cient transfer of heat possible from the least amount of fuel. Controlled combustion is the key to optimum heating performance.

  • Page 9: Chimney Connections

    CHIMNEY CONNECTIONS IMPORTANT INSTALLATION POINTS Size chimney fl ue to stove collar. This stove requires a minimum of a 6” diameter fl ue. Never connect this unit to a chimney serving another appliance. The chimney must meet all minimum height requirements. Never use a chimney to ventilate a cellar or basement.

  • Page 10: Fireplace Installation

    CHIMNEY CONNECTIONS Do Not use a chimney that is unlined or damaged! If you have any question regarding the condition of the chimney, consult a qualifi ed licensed contractor, qualifi ed engineer, competent mason, certifi ed Chimney Sweep, or a knowledgeable inspector.
  • Page 11 CHIMNEY CONNECTOR SYSTEMS & CLEARANCES A. Brick Masonry Minimum 3.5˝/89mm thick brick masonry all framed into combustible wall with a minimum of 12˝/305mm brick separation from clay liner to combustibles. The fi reclay liner shall run from outer surface of brick wall to, but not beyond, the inner surface of chimney fl...

  • Page 12: Operating Safety Precautions

    OPERATING INSTRUCTIONS CAUTION: HOUSE FIRE HAZARDS • DO NOT STORE WOOD ON FLOOR PROTECTOR, UNDERNEATH STOVEPIPE OR ANYWHERE WITHIN MINIMUM CLEARANCES FROM COMBUSTIBLE SURFACES SPECIFIED FOR THIS STOVE. • OVERFIRING MAY CAUSE A HOUSE FIRE. YOU ARE OVERFIRING IF A UNIT OR CHIMNEY CONNECTOR GLOWS RED. OPERATING SAFETY PRECAUTIONS 1.

  • Page 13: Optimal Fuel Consumption

    OPERATING INSTRUCTIONS NOTICE: USE SOLID WOOD MATERIALS ONLY. DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL. DO NOT USE COAL. THIS STOVE IS NOT DESIGNED TO ACCOMMODATE THE AIR FLOW (DRAFT) NECESSARY TO PROPERLY BURN COAL OR COAL PRODUCTS. DO NOT ELEVATE FIRE OR USE GRATES OR ANDIRONS.

  • Page 14: Starting A Fire

    OPERATING INSTRUCTIONS STARTING A FIRE DO NOT LEAVE STOVE UNATTENDED WITH DOOR OPEN! The top down method of fire building is recommended for this appliance. After making sure that the stove air intake controls are fully open (completely pull-out towards you), Place the largest pieces of wood on the bottom, laid in parallel and close together. Smaller pieces are placed in a second layer, crossways to the first.

  • Page 15: Service Hints

    SERVICE HINTS AIR TUBES The air tubes assembled in this unit are designed to provide an accurate mix of secondary air to insure the highest efficiency. Any damage or deterioration of these tubes may reduce the efficiency of combustion. The air tubes are held in position by either screws or snap pins.

  • Page 16: Chimney Draft

    SERVICE HINTS CAUTION: SLOW BURNING FIRES AND EXTENDED USE MAY CAUSE EXCESSIVE CREOSOTE BUILDUP. IGNITION OF CREOSOTE OR OVER FIRING MAY CAUSE A CHIMNEY FIRE. CHIMNEY FIRES BURN EXTREMELY HOT AND MAY IGNITE SURROUNDING MATERIALS. IN CASE OF A CHIMNEY FIRE CALL THE FIRE DEPARTMENT IMMEDIATELY.

  • Page 17: Glass Care

    SERVICE HINTS Chimney Installation and Maintenance Confirm that all four minimum chimney height requirements listed in the Chimney Connections section of the manual have been met. The physics that link chimney height with draft creation are vital to the proper operation of the stove. Failure to meet each of these minimum requirements will have an adverse affect on draft.
  • Page 18 SERVICE HINTS WIRING DIAGRAM - TR008 F-6 BLOWER ASSEMBLY When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part When ordering missing or replacement parts, always give the Model Number of the stove, Description.
  • Page 19 PARTS When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part Description. Use the illustrations and part lists providedto identify parts. Contact us 1-800-750-2723 at to order parts.
  • Page 20 PARTS When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part Description. Use the illustrations and part lists providedto identify parts. Contact us 1-800-750-2723 at to order parts. Part No. Description Qty. Part No.
  • Page 21 PARTS When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part Description. Use the illustrations and part lists providedto identify parts. Contact us 1-800-750-2723 at to order parts. Part No. Description Qty. 892401 Assy., Chamber Door 08-41...
  • Page 22 FLOOR PROTECTOR MATERIAL CALCULATIONS This stove has been tested for and must be installed on a floor protector with the proper Thermal Resistance or R-value as stated in the installation instructions on page 3, “Locating Stove” step 1, of this manual. If the floor protector materials listed in the instructions are not available, materials with an equivalent R-value may be substituted.
  • Page 23 NOTES...
  • Page 24 This Vogelzang heating appliance is safe when installed properly and will provide you with years of service. However, always exercise good judgement when you are using this stove. You are dealing with FIRE! Fire is inherently dangerous and must be treated with respect. Stay warm and in good health! DO NOT INSTALL THIS STOVE IN A MOBILE HOME, MANUFACTURED HOME, TRAILER OR TENT —...
