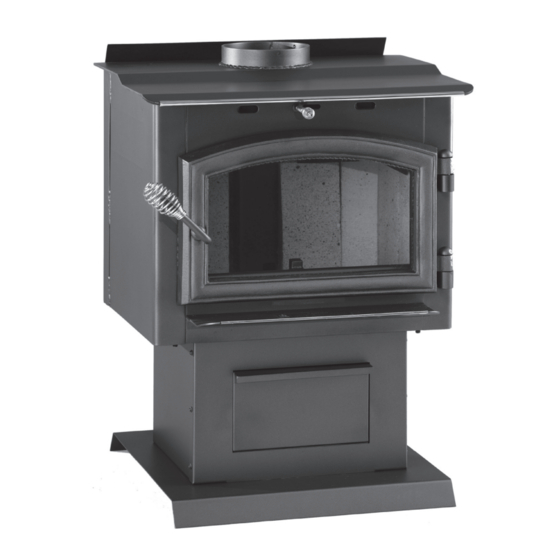

HIGH-EFFICIENCY WOODSTOVE
Model TR002 Owners Manual
READ ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING
THIS STOVE.
FAILURE TO FOLLOW INSTRUCTIONS
MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY, OR EVEN DEATH.
REFER TO MARKINGS ON
STOVE LABELS FOR
ADDITIONAL INFORMATION.
SAFETY NOTICE: IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE/BUILDING FIRE
MAY RESULT. FOR YOUR SAFETY, CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT
PERMITS, RESTRICTIONS, AND INSTALLATION REQUIREMENTS FOR YOUR AREA.
VGZ-027 / 20120209.1
THE SHILOH
EPA Certified (4.21 grams/hr)
(save this manual for future reference)
™
This stove meets U.S. Test Standard:
UL 1482-1996
NOTE: INSTALLATION MUST BE
COMPLETED BY A QUALIFIED
HEATING EQUIPMENT INSTALLER!
DO NOT USE THIS STOVE IN A
MOBILE HOME, MANUFACTURED HOME,
TENT OR TRAILER – NO EXCEPTIONS!
Vogelzang International Corporation
400 West 17th Street
Holland, Michigan 49423
www.vogelzang.com
Phone: 1-616-396-1911
Fax: 1-616-396-1971
TR002 SHILOH™ / Page 1
