KENYON
®
INSTRUCTION MANUAL

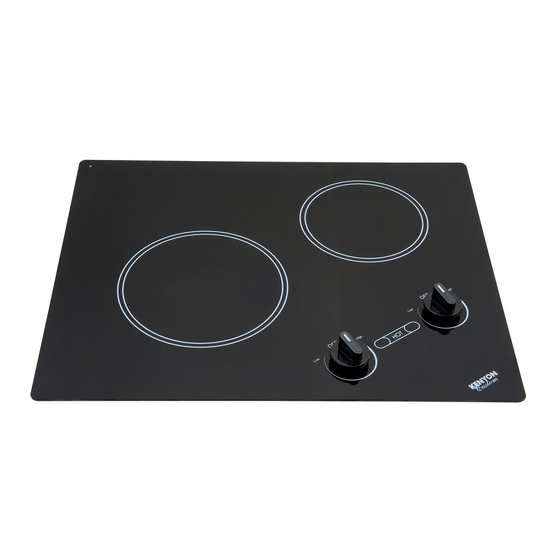

Mediterranean 2-Burner
Arctic
Cortez 2-Burner
Caribbean 2-Burner
Alpine 2-Burner
Antarctic
Mediterranean, Caribbean, Alpine, Arctic, Antarctic
and Cortez Ceramic Glass Cooktops
(120, 208 & 240 Volt Models)
KENYON
P.O. Box 925
8 Heritage Park Road
Clinton CT 06413 USA
Phone: (860) 664 - 4906
Part #143117
FAX:
(860) 664 - 4907
Rev 7/26/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mediterranean and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kenyon Mediterranean

Summary of Contents for Kenyon Mediterranean

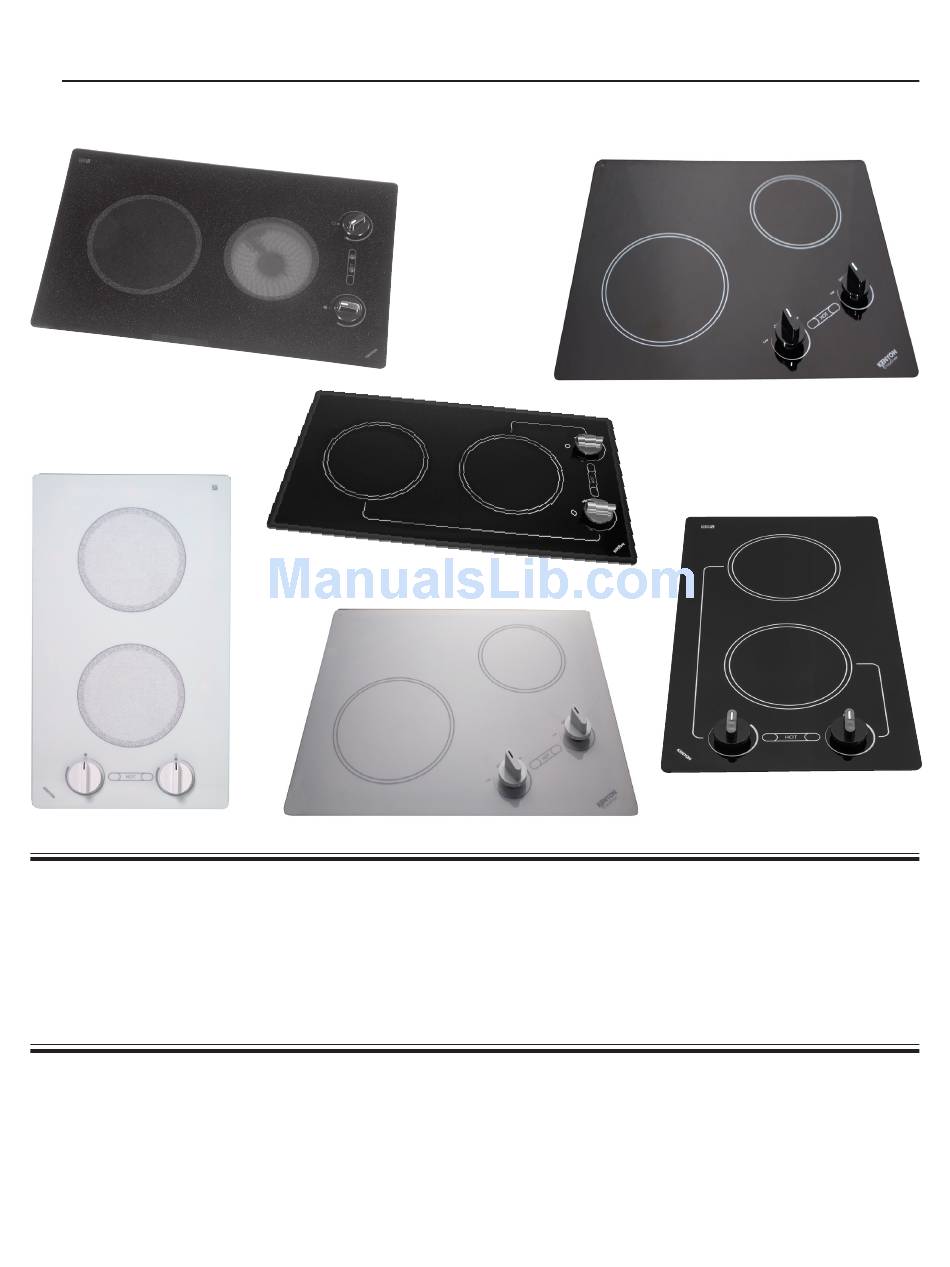

  • Page 1 INSTRUCTION MANUAL Mediterranean 2-Burner Arctic Cortez 2-Burner Caribbean 2-Burner Alpine 2-Burner Antarctic Mediterranean, Caribbean, Alpine, Arctic, Antarctic and Cortez Ceramic Glass Cooktops (120, 208 & 240 Volt Models) KENYON P.O. Box 925 8 Heritage Park Road Clinton CT 06413 USA...
  • Page 3 lease read these instructions in their entirety before installation and use of aPPliance DO NOT DISCARD this manual ave for future reference...

  • Page 4: Product Specifications

    Mediterranean Series Cooktop PRODUCT SPECIFICATIONS Two Burner B41510 - 120V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8” (200mm) burner @ 1400 watts B41511 - 240V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8”...
  • Page 5 Arctic & Antarctic Series Cooktop PRODUCT SPECIFICATIONS Two Burner - Arctic - Black Glass B41603 - 120V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8” (200mm) burner @ 1400 watts B41604 - 240V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8”...
  • Page 6 Alpine Series Cooktop PRODUCT SPECIFICATIONS Two Burner - Large B49510 - 120V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8” (200mm) burner @ 1400 watts B49511 - 240V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8”...

  • Page 7: Installation Instructions For Kenyon Ceramic Glass Cooktops

    Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. Ceramic glass cooktop • (2) Mounting brackets (1) Package of mounting screws • (1) Ceramic cooktop cleaner...
  • Page 8 This product must be installed in accordance with national, state and local electric codes. The following table provides the correct voltage, amperage and frequency that must be supplied to the cooktop. Max Connected Required Power Minimum Kenyon Part # Model # Load Supply Input Wire Size B41510...
  • Page 9 STEP #3 Countertop Preparation Please read this section prior to making cutout for cooktop. It is important to plan ahead for installation of the cooktop, keeping the following dimen- sions in mind (please refer to Figure A). A - 13 inches maximum depth of overhead cabinets B - 36 inches is minimum height of countertop above floor C - The minimum flat countertop surface that the cooktop will rest upon must be equal to or greater than the overall...
  • Page 10 Allow a 2” minimum clearance between the bottom of the metal pan of the cooktop and any combustible surface located below, ie: the upper edge of a drawer installed below the cooktop (see Fig. B on previous page). Failure to provide proper clearances and ventilation may result in a fire hazard.
  • Page 11 We recommend a very small bead of silicone sealant. Attach the two mounting brackets supplied with the KENYON cooktop (as shown) to the inside vertical surface of the cutout. The brackets are to be mounted on opposing sides. If your counter material is granite you will need to glue two wood strips underneath the counter to accept the mounting brackets. Center the bracket in the opening, flush with the...
  • Page 12 A thorough cleaning with a recommended cooktop cleaner (Cerama Brite Ceramic Cooktop Cleaner) will provide a clean, shiny coating on the cooktop surface. The next section of the manual covers cooktop use, maintenance, safety and service information. Please keep these instructions with the KENYON cooktop for future reference.

  • Page 13: User Servicing

    USER’S GUIDE & CARE SAFETY Read this section BEFORE operating the cooktop. The following information applies to all KENYON Electric Cooktops. This cooktop, like all appliances, has the potential to create safety problems through careless and improper use. Please observe all of the following safety precautions.
  • Page 14 Do not discard these instructions, keep them with the KENYON cooktop for future reference.

  • Page 15: Operation

    By doing so, you will help prevent scratches and stains. Heating Elements This KENYON cooktop contains ribbon-type, radiant heating elements. The radiant elements will “light up” about 4-5 seconds after being turned on. The special design of these elements direct the heat up through the ceramic glass providing efficient cooking.
  • Page 16 Do not place articles other than cookware on the cooking surface while this light is glowing. Cleaning To help ensure that the KENYON cooktop stays clean, follow these easy-care tips: Clean the cooktop before you use it for the first time. A thorough cleaning with our recommended cooktop cleaner (Cerama Brite Ceramic Cooktop Cleaner) will provide a coating on the cooktop prior to its first use. A sample is included with your Kenyon cooktop.

  • Page 17: Warranty

    United States and Canada. Any other or express or special shipping charges are at the expense of the buyer. 5. All labor allowed by the Company under this warranty must be performed by an authorized Kenyon I nternational service center, unless otherwise specified in writing by the Company.
