KENYON
®
INSTRUCTION MANUAL
for
KISS
Cook Top
COVERS ALL KISS AND KISS CE MODELS
P/N 141912
Version 030306
KENYON International
P.O. Box 925
0063
8 Heritage Park Road
Clinton, CT 06413
AT 1554
Phone: (860) 664 – 4906
(Model #'s B23015, B23017 only)
FAX: (860) 664 – 4907
www.kenyonappliances.com
//DC-1/engineering/manuals/kiss
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kenyon KISS
Summary of Contents for Kenyon KISS
- Page 1 KENYON ® INSTRUCTION MANUAL KISS Cook Top COVERS ALL KISS AND KISS CE MODELS P/N 141912 Version 030306 KENYON International P.O. Box 925 0063 8 Heritage Park Road Clinton, CT 06413 AT 1554 Phone: (860) 664 – 4906 (Model #’s B23015, B23017 only) FAX: (860) 664 –...
-
Page 2: Table Of Contents
IMPORTANT NOTICE BEFORE YOU PROCEED, PLEASE READ THIS BOOKLET FROM COVER TO COVER. FAILURE TO FOLLOW INSTRUCTIONS MAY: VOID YOUR WARRANTY CAUSE PROPERTY DAMAGE CAUSE INJURY Table of Contents INTRODUCTION Features of Your New hfpp Cook Top................Unpacking, Tools and Materials Needed for Installation............INSTALLATION Mounting the hfpp Cook Top.................... -
Page 3: Specifications
7.8 oz (220 grams) of fuel FUEL CARTRIDGE TYPE • Only KENYON KENYON KENYON brand butane fuel cartridges type KBF-2 should be used in the KISS KENYON Stove. It may be hazardous to attempt to fit other types of gas cartridges. APPLIANCE DIMENSIONS •... - Page 4 Automatic flame shut-off if glass lid is accidentally closed on lit burner. Automatic fuel shut-off if flame is inadvertently extinguished. (KISS CE models only) Interlocks prevent ignition if fuel canister is not correctly inserted. Interlocks prevent closing gas compartment if safety shell end cap is in “open”...
- Page 5 Fig. 1 - KISS Operating Controls TEMPERED GLASS LID POTHOLDERS stowed Hinges down after Lidstay is released GRATE LIDSTAY “Pinch” these 2 fingers to remove grate for cleaning CONTROL KNOB POT HOLDERS deployed. Turn CW to open a) Loosen knurled knobs...
-
Page 6: Installation
Cook Top to the nearest flammable materials- fabric, plastic, wood- (except the The KISS Cook Top can be recessed in the counter so countertop itself). that the top of the closed glass lid is flush with the countertop surface. - Page 7 Fig. 2 – Cutout Dimensions 13 13 1/8" 12 1/2" 333mm 317.5mm Use 1/2” (13mm) diameter drill or router bit for corners 3 ¾” (95mm) FRONT (OPERATOR SIDE) If Cook Top will be “boxed in” by existing structures: Cut 2” x 4” (50mm x 100mm) opening for •...
-
Page 8: Installing The Venting System
The size of the drain is not critical so long as its cross into the=KISS stove under normal conditions sectional area is at least equal to that of the venting hose itself. - Page 9 Installation CAUTION Inspect and operate the lid mechanism before fastening Cook Top to counter. While holding the Cook Top firmly in place, raise the glass lid W A T E R E N T R Y I N T O T H E K I S S C O O K T O P until it latches.
- Page 10 Fig. 4 – KISS KISS Vent Layout for Powerboats KISS KISS hfpp Cook Top 3/8” (10mm) CHECK VALVE Diameter Vent Pipe NOTE “FLOW” LABEL • Underpan • FACTORY INSTALLED installed in • OUTLET REQUIRES 5/8” ID HOSE Countertop • hbkvlk B93088 FOR REPLACEMENT ASSY.
- Page 11 Fig. 5 – “Winch Cubby” KISS KISS Vent Layout for Sailboats KISS KISS “Through-Hull” KISS KISS KISS Vent Layout For Sailboats KISS Suggested Vent PERKO 506DPCHR or similar CHECK VALVE NOTE “FLOW” LABEL (INLET IS RED) • hfpp hfpp Cook Top...
- Page 12 Fig. 6 – “Cockpit” KISS KISS Vent Layout for Sailboats KISS KISS CHECK VALVE “Thru-Hull” KISS KISS KISS Vent Layout for Sailboats KISS NOTE “FLOW” LABEL (INLET IS RED) • • FACTORY INSTALLED • hbkvlk # B93088 FOR REPLACEMENT ASSY.
-
Page 13: Operating Controls And Features
Operation: BUTANE GAS MODE Before using your KISS Cook Top, be sure to provide adequate ventilation! Remove the end cap by rotating counter-clockwise CCW) as shown by the OPEN marking. Insert the fuel canister and rotate it until you feel the canister notch engage the guide key inside the safety shell. -
Page 14: Closing Glass Lid
Routine Inspection/Cleaning Operation Please refer to Troubleshooting Section page 16 Securing the hfpp hfpp hfpp Cook Top after Use hfpp Gas Leaks The butane canister should be removed from the cooktop between uses. Store the canister in a cool, dry and well Every time the Cook Top is used, the operator should ventilated location away from possible sources of heat confirm that no gas leaks are present. -
Page 15: Maintenance
Cook Top, it will be caught by a secondary drip Your KISS KISS KISS Cook Top has a special feature that KISS bowl inside. You can access and clean out this bowl as automatically shuts off gas to the burner if a careless follows: operator closes the lid on a lit burner. - Page 16 Fig. 8 – End Cap Including Sealing Gasket WARNING GAS LEAKS, FIRE, EXPLOSION, SEVERE BURNS FAILURE OF SOFT SEALING GASKET PLUS POSSIBLE GAS LEAKAGE FROM BUT ANE CANIST ER MAY RELEASE FLAMMABLE GAS DO NOT USE COOK TOP IF END CAP SEALING GASKET IS TORN OR DAMAGED SEALING GASKET Call Customer Service to order new end cap with sealing...
-
Page 17: Maintenance And Cleaning
Maintenance and Cleaning BURNER HEAD Burner Head Orifices 2mm (3/32”) GAP BETWEEN ELECTRODE TIP AND BURNER HEAD ELECTRODE Keep the burner head orifices clear and clean. You can use and old toothbrush to clean them. If a severe boil-over has occurred and the gas openings are clogged, you can remove the burner head by first removing the center screw. - Page 18 Maintenance This is a basic guide for troubleshooting the hfpp Cook FACTORY ONLY MAINTENANCE Top. It covers diagnosis and parts replacement for With the exception of the items and procedures in the simple problems and/or adjustments that can be troubleshooting section, there are no user-serviceable performed by the average mechanically-competent components on the hfpp Cook Top.
- Page 19 OWNER SYMPTOM SERVICE? DIAGNOSIS CORRECTIVE ACTION No flame or YES (*) No Fuel Load fuel canister or replace very low flame empty canister Weather too cold for use: Do not use appliance at low temperatures below 35°F = low gas pressure Return to factory Faulty gas control linkage or regulator...
- Page 20 Fig. 9 – Parts List: User-Replaceable Items B93079 Lid Bumper Assembly 240491 Pot Holder, LEFT 240490 Pot Holder, RIGHT (*) See below for Replacement Glass Lid Assembly 141812 E-CLIP (for Lidstay Pivot) 141809 Grate B93081 End Cap VENT SYSTEM COMPONENTS with Gasket 141905 Check Valve (3/8”...
-
Page 21: Return Policy
Customer Service Shipping Instructions hbkvlk hbkvlk hbkvlk hbkvlk Do not remove or ship the galvanized steel sheet- PHONE: (860) 664-4906 metal underpan. Leave it installed in the countertop. Hours: 8:00 a.m. – 5:00 p.m. EST Packing to Prevent Shipping Damage FAX: (860) 664-4907 Obtain a heavy corrugated carton at least 6 inches... -
Page 22: Warranty
This limited warranty does not extend to any consequential damages which may be suffered because of failure of the product. Consequential damages include any loss of profit, property damage or personal injury. Kenyon International, Inc PO Box 925 #8 Heritage Park Road...
Need help?
Do you have a question about the KISS and is the answer not in the manual?
Questions and answers

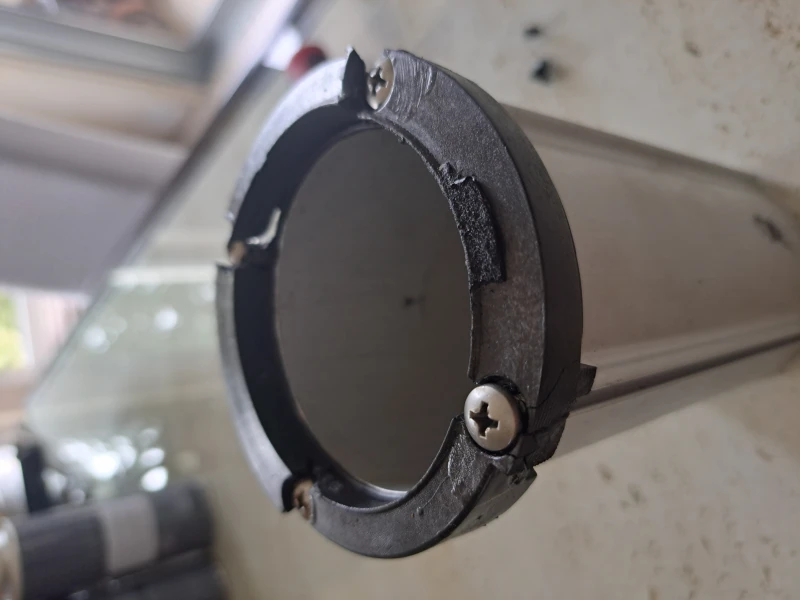

Need this part that fixes on the safety shell
