KENYON
®
INSTRUCTION MANUAL
Arctic

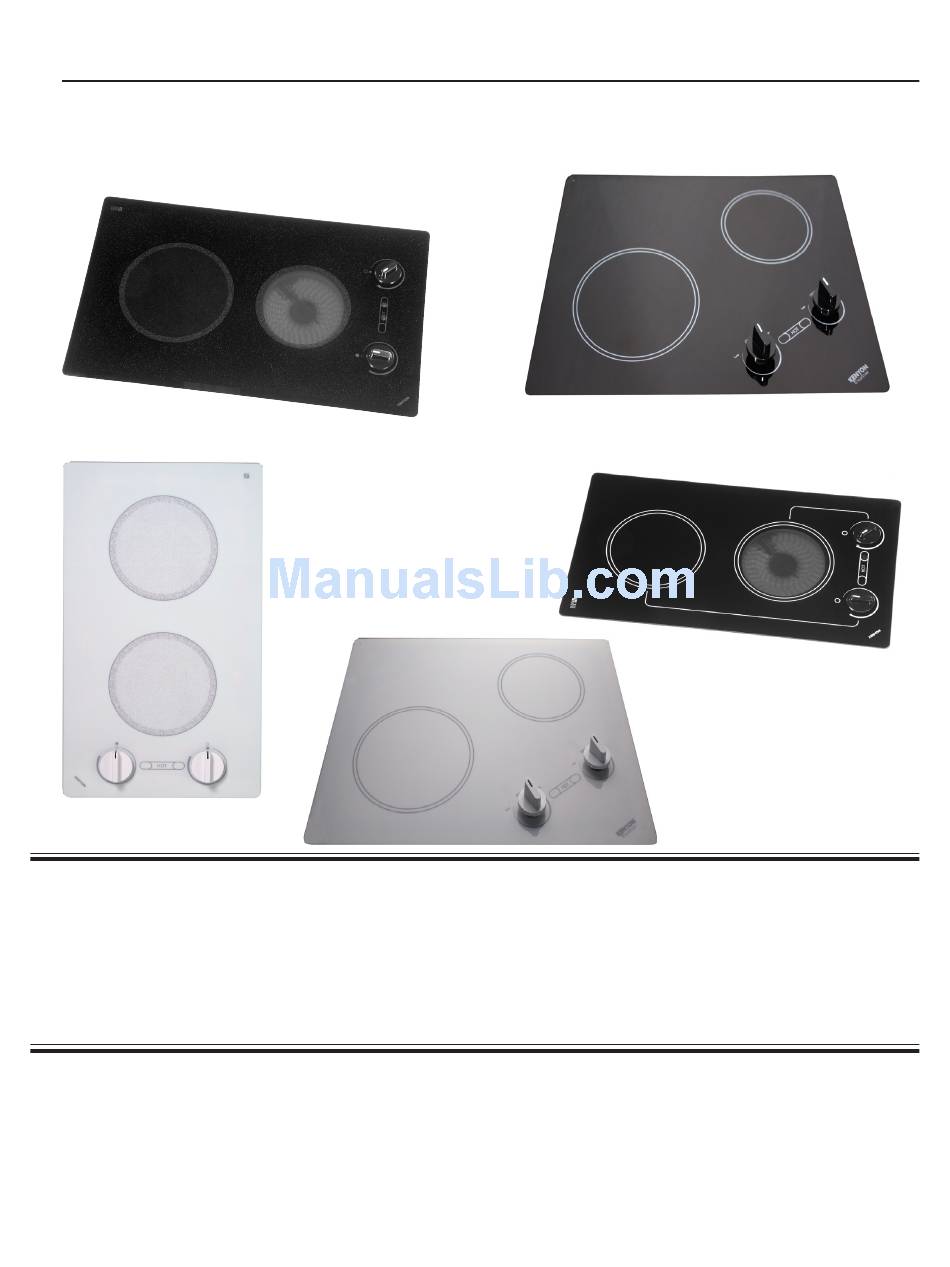

Mediterranean 2-Burner
Antarctic
Caribbean 2-Burner
Alpine 2-Burner
Mediterranean, Caribbean, Alpine, Arctic and Antarctic
Ceramic Glass Cook Tops
(120 & 240 Volt Models)
KENYON
P.O. Box 925
8 Heritage Park Road
Clinton CT 06413 USA
Phone: (860) 664 - 4906
Part #143117
FAX:
(860) 664 - 4907
Rev 1/28/2009
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kenyon Mediterranean 2
Summary of Contents for Kenyon Mediterranean 2
- Page 1 KENYON ® INSTRUCTION MANUAL Arctic Mediterranean 2-Burner Antarctic Caribbean 2-Burner Alpine 2-Burner Mediterranean, Caribbean, Alpine, Arctic and Antarctic Ceramic Glass Cook Tops (120 & 240 Volt Models) KENYON P.O. Box 925 8 Heritage Park Road Clinton CT 06413 USA Phone: (860) 664 - 4906...
- Page 3 LEASE READ THESE INSTRUCTIONS IN THEIR ENTIRETY BEFORE INSTALLATION AND USE OF APPLIANCE DO NOT DISCARD THIS MANUAL AVE FOR FUTURE REFERENCE...
- Page 4 Mediterranean Series Cook Top PRODUCT SPECIFICATIONS Two Burner B41510 - 120V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8” (200mm) burner @ 1400 watts B41511 - 240V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8”...
- Page 5 Arctic & Antarctic Series Cook Top PRODUCT SPECIFICATIONS Two Burner - Arctic - Black Glass B41603 - 120V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8” (200mm) burner @ 1400 watts B41604 - 240V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8”...
- Page 6 Alpine Series Cook Top PRODUCT SPECIFICATIONS Two Burner - Large B49510 - 120V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8” (200mm) burner @ 1400 watts B49511 - 240V AC - one 6 1/2” (165mm) burner @ 1200 watts one 8”...
-
Page 7: Installation Instructions For Kenyon Ceramic Glass Cook Tops
Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. Kenyon Cook Top Mounting Brackets... - Page 8 This product must be installed in accordance with national, state and local electric codes. The following table provides the correct voltage, amperage and frequency that must be supplied to the cook top. Max Connected Required Power Minimum Kenyon Part # Model # Load Supply Input Wire Size B41510...
- Page 9 STEP #3 Countertop Preparation Please read this section prior to making cutout for cook top. It is important to plan ahead for installation of the cook top, keeping the following dimen- sions in mind (please refer to Figure A). A - 13 inches maximum depth of overhead cabinets rest upon must be equal to or greater than the overall cook top dimensions (refer to the following page for overall cook top dimensions).
- Page 10 Allow a 2” minimum clearance between the bottom of the metal pan of the cook top and any combustible surface located below, ie: the upper edge of a drawer installed below the cook top (see Fig. B on previous page). Failure to provide proper clearances and Cook top dimensions and countertop cutout dimensions for each model are shown below: Models: MED2 &...
- Page 11 We recommend a very small bead of silicone sealant. Attach the two mounting brackets supplied with the KENYON cook top (as shown) to the inside vertical surface of the cutout. The brackets are to be mounted on opposing sides. If you counter material is granite you will need to glue two wood strips underneath the counter top and secure with long self-tapping screws that are provided.
- Page 12 Cook Top Cleaner) will provide a clean, shiny coating on the cook top surface. The next section of the manual covers cook top use, maintenance, safety and service information. Please keep these instructions with the KENYON cook top for future reference.
-
Page 13: User Servicing
USER’S GUIDE & CARE SAFETY Read this section BEFORE operating the cook top. The following information applies to all KENYON Electric Cook Tops. through careless and improper use. Please observe all of the following safety precautions. Proper Installation Never use your appliance for warming or heating the room. - Page 14 Do not cook on broken cook top. If cook top should break, cleaning solutions and spillovers may penetrate the broken cook top and create a risk of electric shock. Contact an authorized service center or KENYON Customer Care immediately at (860) 664-4906.
-
Page 15: Operation
By doing so, you will help prevent scratches and stains. Heating Elements This KENYON cook top contains ribbon-type, radiant heating elements. The radiant elements will “light up” about 4-5 seconds after being turned on. The special design of Temperature limiters are included in each element to ensure that the safe operating temperature of the ceramic glass top is not exceeded. - Page 16 Do not place articles other than cookware on the cooking surface while this light is glowing. Cleaning To help ensure that the KENYON cook top stays clean, follow these easy-care tips: recommended cook top cleaner (Cerama Brite Ceramic Cook top Cleaner) will provide a top.
-
Page 17: Warranty
United States and Canada. Any other or express or special shipping charges are at the expense of the buyer. All labor allowed by the Company under this warranty must be performed by an authorized Kenyon This warranty does not cover the cost of repair or replacement for glass damage.
