Summary of Contents for Kenyon SilKEN 2 Series

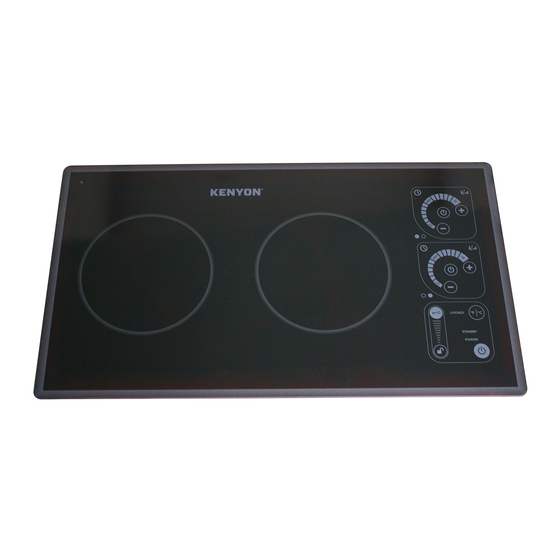

- Page 1 www.CookWithKenyon.com SilKEN 2 INDUCTION COOKTOPS ® OWNERS MANUAL Part # 145089 Revised: November 21, 2017...
-
Page 2: Table Of Contents
Product Specifications these instructions Four Burner Model Two Burner Large Models Two Burner Small Models Thank you for choosing Kenyon, One Burner Large Models the world’s leading manufacturer One Burner Small Models of specialty cooking appliances. By following the instructions in this... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read this section BEFORE operating and installing the cooktop. The following information applies to all KENYON Electric Cooktops. THIS COOKTOP, LIKE ALL APPLIANCES, HAS THE POTENTIAL TO CREATE SAFETY PROBLEMS THROUGH CARELESS AND IMPROPER USE. PLEASE OBSERVE ALL OF THE FOLLOWING SAFETY PRECAUTIONS. - Page 4 Among these areas are the induction elements and surrounding glass surface. DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM WITH THE KENYON COOKTOP FOR FUTURE REFERENCE.
- Page 5 Ne remplacez ni ne réparez aucune pièce de l’appareil. Si une réparation s’avérait nécessaire,assurez-vous qu’elle soit effectuée par du PERSONNEL AUTORISÉ SEULEMENT ou contactez le service d’assistance à la clientèle KENYON au 860-664-4906. Rangement à l’intérieur ou au-dessus de l’appareil Ne rangez jamais de matériaux inflammables au-dessus, en-dessous ou près des unités de cuisson.
-
Page 6: Product Specifications
Product Specifications Four Burner BURNER DATA Model VOLTAGE DIAMETER OUTPUT IN WATTS - B81401(240V) 240V AC One 5” (127mm) One 6.25” (159mm) 1200 One 8” (203mm) 1800 One 10” (254mm) 2000/3000 M a x imum loa d 6 2 0 0 wa tts combi ned PRODUCT DIMENSIONS WIDTH DEPTH... -
Page 7: Two Burner Small Models
Product Specifications Two Burner BURNER DATA Small Models VOLTAGE DIAMETER OUTPUT IN WATTS - B81321 (120V) 120V AC Two 6.25” (159mm) 1300 each - B81325 (120V) M a x im um l oa d 18 0 0 wa tt s combi n ed - B81331(240V) 240V AC Two 6.25”... -
Page 8: One Burner Small Models
Product Specifications One Burner BURNER DATA Small Models VOLTAGE DIAMETER OUTPUT IN WATTS - B81201(120V) 120V AC One 6.25” (159mm) 1300 - B81205 (240V) 240V AC One 6.25” (159mm) 1300 PRODUCT DIMENSIONS WIDTH DEPTH HEIGHT 12.5” 12” 3.19” 317.5mm 304.8mm 81.02mm CUTOUT DIMENSIONS WIDTH... -
Page 9: Cleaning And Care
A razor blade scraper or the equivalent works well to remove your Kenyon magnet on the bottom of the pot spillovers. or pan and see if it sticks. If the magnet does not stick to your cookware it will not work. -
Page 10: Parts And Features Of Your Cooktop
Parts and Features of Your Cooktop Throughout this manual, features and appearance may vary from your model. BURNER CONTROL FRAME HOT SURFACE INDICATOR STANDBY LIGHT POWER LIGHT LOCKED LIGHT LOCK FEATURE INDICATES LOCKED UNIT Operation READ SAFETY INSTRUCTIONS BEFORE OPERATING YOUR APPLIANCE How Induction Cooking These lights are located adjacent to the control panels. -
Page 11: Safety Lock Feature
Operation Safety Lock Feature Cooking Mode Options MAIN POWER AND SAFETY LOCK When the LOCKED LED is illuminated in the The induction cooktop burners can be main power control frame, the cooktop touch independently operated by either a heating control power settings can’t be adjusted from level ranging from low to high, or by setting a BURNER CONTROL the current setting. -
Page 12: Temperature Cooking Mode
Operation Temperature Cooking Mode Changing Temperature Units Select the temperature cooking mode by touching the thermometer/gradient graphic The temperature units can be changed from within the chosen burner control frame. Fahrenheit to Celsius by touching the °F/°C button in the main power control frame. All active burners will change accordingly. -
Page 13: Timer Options
Operation Timer Options Cooking Timer Each burner has its own cooking timer that can be activated to shut the burner off at the Kitchen Timer end of the set time. The kitchen timer is a general timer that has many uses around the kitchen, independent of At any time during cooking for each burner, set cooking activity on the induction cooktop. -
Page 14: Error Code Readout
2 M A I N T E N A N C E ® The Kenyon induction cooktop is a sealed unit that does not require regular maintenance. Please follow our operating instructions as mentioned above. If your SilKEN 2 requires service, ®... -
Page 15: Installation
The following items should be included in the Check the Electrical Supply carton. If any components are missing or Requirements damaged, call KENYON immediately. This product must be installed in accordance PARTS INCLUDED with national, state and local electric codes. - Page 16 Installation ELECTRICAL SUPPLY REQUIREMENTS KENYON MAX CONNECTED POWER SUPPLY MINIMUM WIRE PART NUMBER LOAD INPUT SIZE B81321 1800 Watts 120V AC 11A 60Hz #14 AWG B81325 1800 Watts 120V AC 11A 60Hz #14 AWG B81210 1800 Watts 120V AC 15A 60Hz...
-
Page 17: Countertop Preparation
Installation Countertop Preparation Please read this section prior to making cutout for cooktop. It is important to plan ahead for installation of the cooktop, keeping the following dimensions in mind. A - 13 inches maximum depth of overhead cabinets B - 36 inches is minimum height of countertop above floor C - The minimum flat countertop surface that the cooktop will rest upon must be equal to or... - Page 18 KENYON INTERNATIONAL. ANY SIZE DWG. NO. REPRODUCTION IN PART OR AS A WHOLE 533.40mm WITHOUT THE WRITTEN PERMISSION OF SilKEN 2, 4 BURNER KENYON INTERNATIONAL IS PROHIBITED. SCALE: 1:4 WEIGHT: SHEET 1 OF 1 3.00in 76mm PROPRIETARY AND CONFIDENTIAL KENYON INTERNATIO...
-
Page 19: Installing The Cooktop
Secure the cooktop to the brackets from underneath with the small sheet metal screws that are supplied. BE CAREFUL NOT TO OVERTIGHTEN THE SCREWS. PROP THE INFOR DRAWING KENYON REPRODU WITHOUT KENYON... -
Page 20: Electrical Connection
Installation Electrical Connection Final Preparations Prior to Use Before proceeding further, verify that the power supply is disconnected. Verify that Remove the plastic film from the cooktop. the appropriate electrical supply requirements Clean the cooktop before you use it for the have been met. -
Page 21: Warranty
Warranty Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
