KENYON
®
INSTRUCTION MANUAL

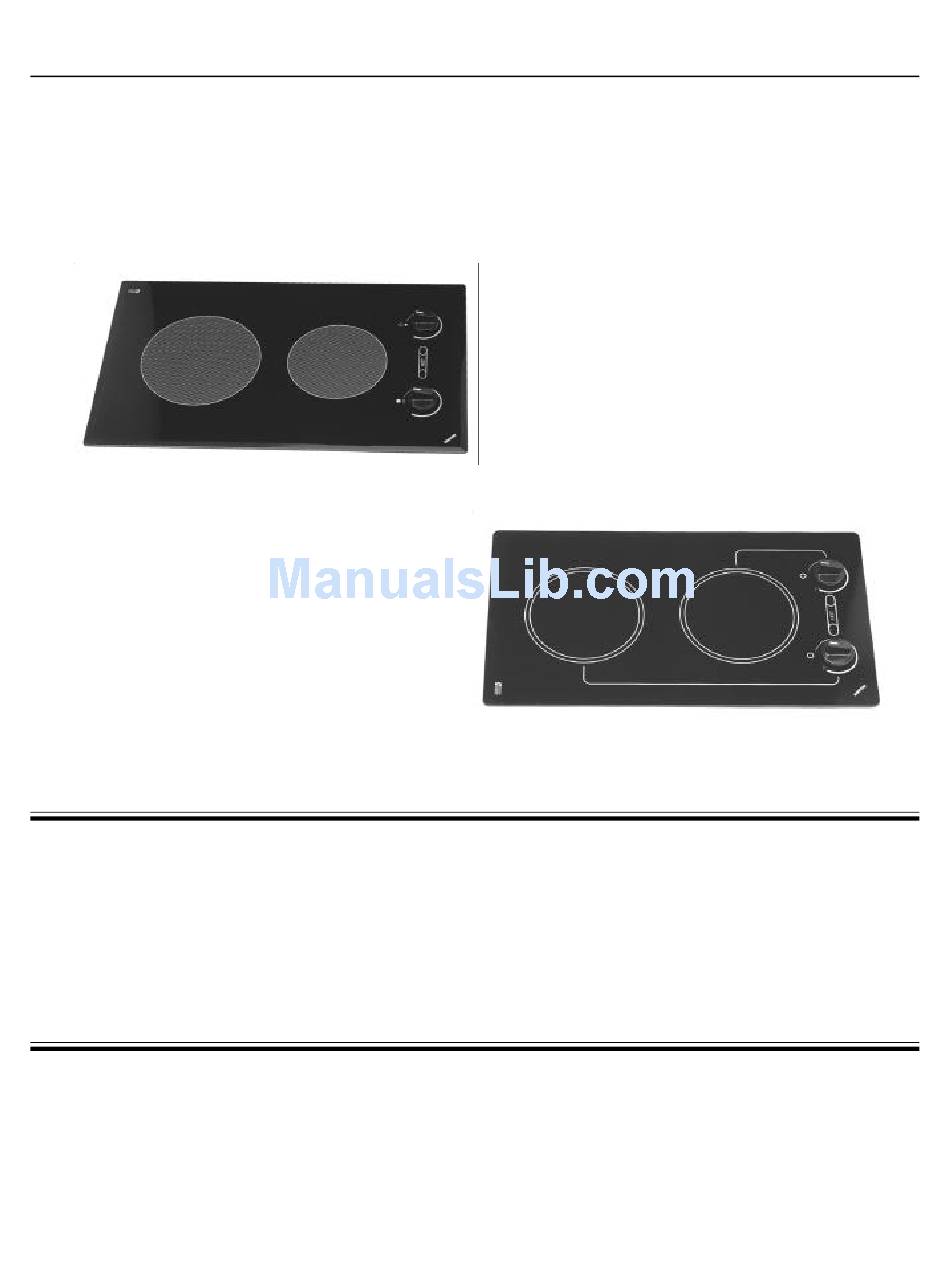

Mediterranean 2-Burner
Caribbean 2-Burner
Mediterranean, Caribbean & Alpine
Ceramic Glass Cook Tops
(240 Volt Models UL/C-UL APPROVED)
KENYON
P.O. Box 925
8 Heritage Park Road
Part # 143048
Clinton
CT 06413 USA
Phone: (860) 664 - 4906
FAX: (860) 664 - 4907
rev 3/26/2004
DC-1\kenyonengineering\manuals\ulmanuals\143048
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kenyon UL/C-UL
Summary of Contents for Kenyon UL/C-UL
- Page 1 KENYON ® INSTRUCTION MANUAL Mediterranean 2-Burner Caribbean 2-Burner Mediterranean, Caribbean & Alpine Ceramic Glass Cook Tops (240 Volt Models UL/C-UL APPROVED) KENYON P.O. Box 925 8 Heritage Park Road Part # 143048 Clinton CT 06413 USA Phone: (860) 664 - 4906...
-
Page 2: This Manual
LEASE READ THESE INSTRUCTIONS IN THEIR ENTIRETY BEFORE INSTALLATION AND USE OF APPLIANCE DO NOT DISCARD THIS MANUAL AVE FOR FUTURE REFERENCE... - Page 3 Two Burner B41511 - 240V AC - one 6” (165mm) burner @ 1200 watts Overall dimensions: Cutout dimensions: Trimline B41516 - 240V AC - two 6” (165mm) burners @ 1200 watts each Overall dimensions: Cutout dimensions: Single Burner Single Burner B41518 - 240V AC - one 6”...
- Page 4 Two Burner B41602 - 240V AC - two 6” (165mm) burners @ 1200 watts each Overall dimensions: Cutout dimensions: Single Burner B41606 - 240V AC - one 6” (165mm) burner @ 1200 watts Overall dimensions: Cutout dimensions: Caribbean Series Cook Top PRODUCT SPECIFICATIONS 21”...
- Page 5 Two Burner - Large B49511 - 240V AC - one 6” (165mm) burner @ 1200 watts Overall dimensions: Cutout dimensions: Two Burner - Small B49516 - 240V AC - two 6” (165mm) burners @ 1200 watts each Overall dimensions: Cutout dimensions: Single Burner Single Burner B49518 - 240V AC - one 6”...
- Page 6 Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. Ceramic glass cook top • (2) Mounting brackets (1) Package of mounting screws • (1) Ceramic cook top cleaner...
- Page 7 Check the Electrical Supply Requirements This product must be installed in accordance with national, state and local electric codes. The following table provides the correct voltage, amperage and frequency that must be supplied to the cook top. Kenyon Part # Model # B41511 MED2...
- Page 8 STEP #3 Countertop Preparation Please read this section prior to making cutout for cook top. It is important to plan ahead for installation of the cook top, keeping the following dimensions in mind (please refer to Figure A). A - 13 inches maximum depth of overhead cabinets B - 36 inches is minimum height of countertop above floor C - The minimum flat countertop surface that the cook top will rest upon must be equal to or greater than the overall...
- Page 9 Allow a 2” minimum clearance between the bottom of the metal pan of the cook top and any combustible surface located below, ie: the upper edge of a drawer installed below the cook top (see Fig. B on previous page). Failure to provide proper clearances and ventilation may result in a fire hazard.
- Page 10 We recommend a very small bead of sili- cone sealant. Attach the two mounting brackets supplied with the KENYON cook top (as shown) to the inside vertical surface of the cutout. The brackets are to be mounted on opposing sides.
- Page 11 (Cerama Brite Ceramic Cook Top Cleaner) will provide a clean, shiny coating on the cook top surface. The next section of the manual covers cook top use, maintenance, safety and service information. Please keep these instructions with the KENYON cook top for future reference.
-
Page 12: User Servicing
Do not repair or replace any part of the appliance. If service ever becomes necessary, this appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer Care at (860) 664-4906. • Keep flammable materials away from cook top. - Page 13 Please keep these instructions with the KENYON cook top for future reference. DO NOT THROW AWAY THESE INSTRUCTIONS...
- Page 14 By doing so, you will help prevent scratches and stains. Heating Elements This KENYON cook top contains ribbon-type, radiant heating elements. The radiant elements will “light up” about 4-5 seconds after being turned on. The special design of these elements direct the heat up through the ceramic glass providing efficient cooking.
- Page 15 (Cerama Brite Ceramic Cook top Cleaner) will provide a coating on the cook top prior to its first use. A sample is included with your Kenyon cook top. Always remove food spills, grease spatters and metal rub-off from cookware. A razor blade scraper or the equivalent works well to remove spillovers.
-
Page 16: Warranty
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES TO HOMES, EQUIPMENT OR OTHER PROPERTY OR PERSONS DUE TO ANY FAILURE OF KENYON PRODUCTS. Some countries do not allow exclusion or limitation of coincidental damages so this limitation or exclusion may not apply to you.
