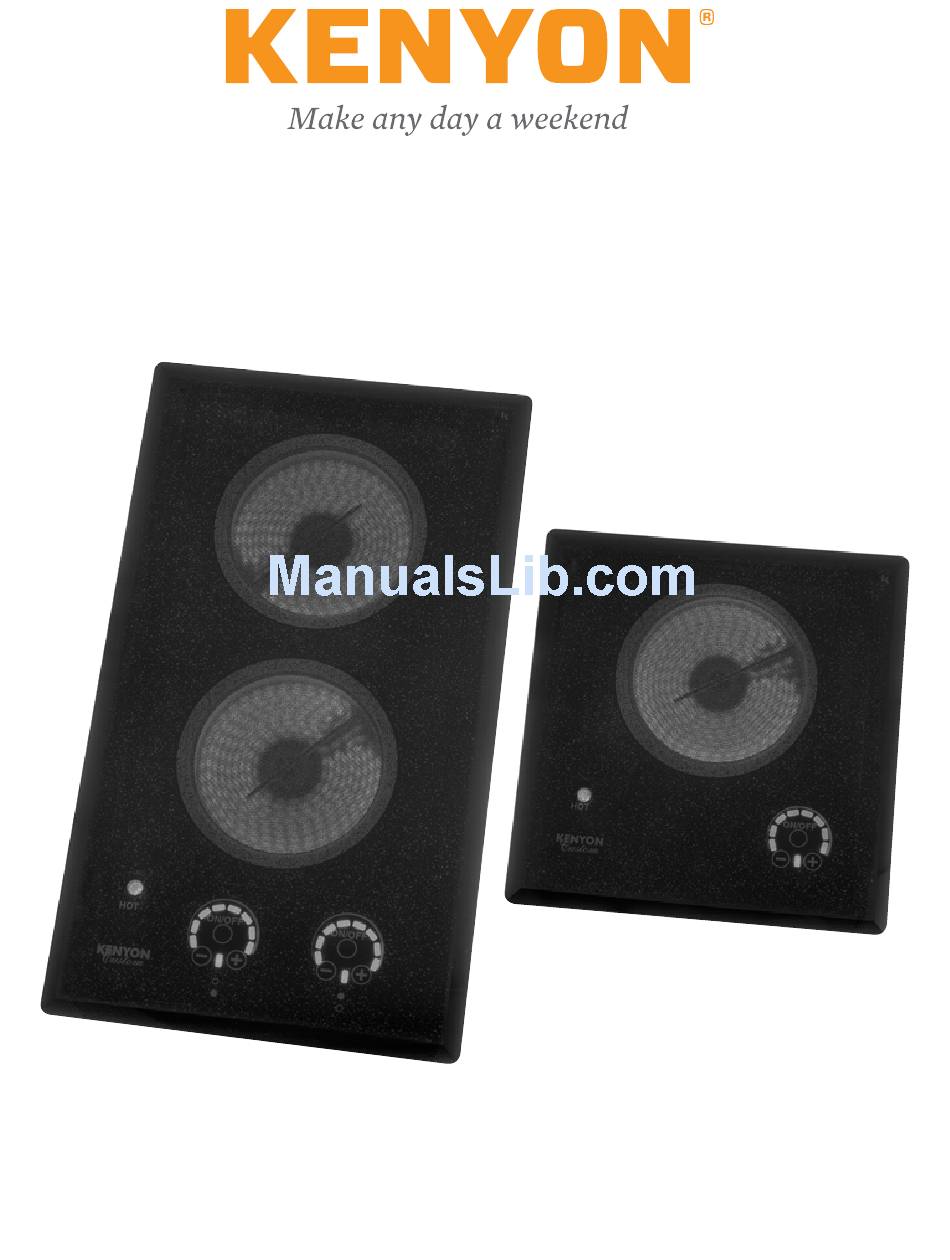

INSTALLATION GUIDE & OPERATION MANUAL
Lite-Touch
Portrait
™

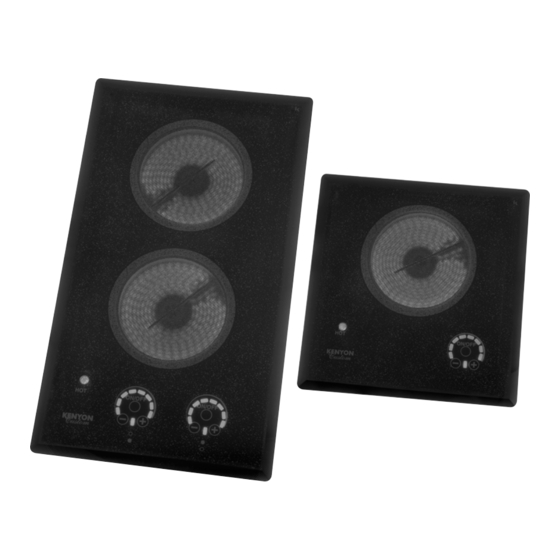

1 , 2 and 3 Burner Ceramic Glass Cooktop
KENYON INTERNATIONAL
P.O. Box 925
8 Heritage Park Road
Manual Part # 143409
Clinton, CT 06413 USA
Phone: (860) 664 - 4906
FAX:
(860) 664 - 4907
Website: www.cookwithkenyon.com
//DC-1/engineering/manuals/B40575_B40576_143409D.pdf
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kenyon Lite-Touch Portrait B40547
Summary of Contents for Kenyon Lite-Touch Portrait B40547
- Page 1 INSTALLATION GUIDE & OPERATION MANUAL Lite-Touch Portrait ™ 1 , 2 and 3 Burner Ceramic Glass Cooktop KENYON INTERNATIONAL P.O. Box 925 8 Heritage Park Road Manual Part # 143409 Clinton, CT 06413 USA Phone: (860) 664 - 4906 FAX: (860) 664 - 4907 Website: www.cookwithkenyon.com...
- Page 2 PLEASE READ THESE INSTRUCTIONS IN THEIR ENTIRETY BEFORE INSTALLATION ANY US OF APPLIANCE. DO NOT DISCARD THIS MANUAL. SAVE FOR FUTURE REFERENCE.
-
Page 3: Table Of Contents
CONTENTS Page Product Specifications INSTALLATION Package Contents Electrical Requirements Countertop Preparation Installing Cooktop GETTING THE MOST OUT OF YOUR COOKTOP Cookware Cleaning TOUCH CONTROL COOKING Control Graphics Energizing Cooking Zone Heat Settings COOKTOP FEATURES Heat Boost Residual Heat Indicator Automatic Shut-off... -
Page 4: Specifications
KENYON LITE TOUCH ™ ® 1 and 2 BURNER TOUCH CONTROL PORTRAIT SPECIFICATIONS Three Burner Models: B40547 240V AC Two 6” (165mm) burner @ 1200 watts One 8” (200mm) burner @1800watts (landscape) Overall dimensions: 30” x 14-1/4” x 3-1/4” 762mm x 362mm x 83mm Cutout dimensions: 29-1/8”... -
Page 5: Package Contents
Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. Ceramic glass cooktop - (2) Mounting... -
Page 6: Countertop Preparation
The supply must be from an individual grounded circuit that is protected by a circuit breaker and rated per the specifications for the various models as shown in the table below. KENYON Max Connected Power Supply... - Page 7 WARNING To eliminate the risk of burns by reaching over heated surface units, cabinet storage space located above surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
-
Page 8: Installing The Cooktop
Note: When making cut-out of countertop, radius the corner of the cutout (1/4” radius is typical), to help prevent cracking of the countertop. Follow the countertop manufacturer’s instructions regarding the minimum corner radius and reinforcement. silicone to seal the STEP #4 glass edge if desired Installing the Cooktop The cooktop is supplied with two metal mounting... -
Page 9: Electrical Requirements
WARNING- GROUNDING the entire appliance must be grounded at all times when the electrical power supply is on. Do not ground the appliance with the neutral house supply wire (white). A separate ground must be used. SteP #5 Electrical Connection Before proceeding further, verify that the power supply is disconnected. -
Page 10: Use And Care
KENYON LITE TOUCH ™ ® 1 and 2 BURNER TOUCH CONTROL PORTRAIT USE AND CARE IMPORTANT SAFEGUARDS, SAVE THESE INSTRUCTIONS! 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock do not immerse cord, plugs, or GFCI module in water or other liquid. -
Page 11: Proper Installation
User Servicing Do not repair or replace any part of the appliance. If service ever becomes necessary, this appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer Care at (860) 664-4906. Keep flammable materials away from cooktop. -
Page 12: Cookware
By doing so, you will help prevent scratches and stains. Cleaning To help ensure that the KENYON cooktop stays clean, follow these easy-care tips: Clean the cooktop before you use it for the first time. A thorough cleaning with a recommended cooktop cleaner (Cerama Brite Ceramic Cooktop Cleaner) will provide a coating on the cooktop prior to its first use. - Page 13 Do not cook on broken cooktop. If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact an authorized service center or KENYON Customer Care immediately at (860) 664-4906. Clean cooktop with caution.
-
Page 14: Control Graphics
KENYON LITE TOUCH ™ ® 1 and 2 BURNER TOUCH CONTROL PORTRAIT OPERATION GUIDE POWER ON INDICATOR This display indicates whether the selected element is ON or OFF. POWER LEVEL MASTER DISPLAY POWER LEVEL DISPLAY POWER SENSOR Digital display indicates heat output of the selected element. -
Page 15: Heat Settings
Power On Indicator will illuminate. MASTER POWER SENSOR HEAT SETTINGS Your KENYON cooktop has 8 different ON/OFF heat settings, from 1 through 8, selected using the (-) and (+) sensors. The heat setting is displayed as shown at the right. -
Page 16: Heat Boost
HEAT LEVEL HOT SURFACE HOT SURFACE INDICATORS INDICATOR Your KENYON cooktop features a Hot Surface LAMP indicator. Any element that has been in use and is switched off will illuminate an indicator lamp. This indicates that the glass surface of the cooktop is... - Page 17 Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitation below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
