Page 1: Owners Manual

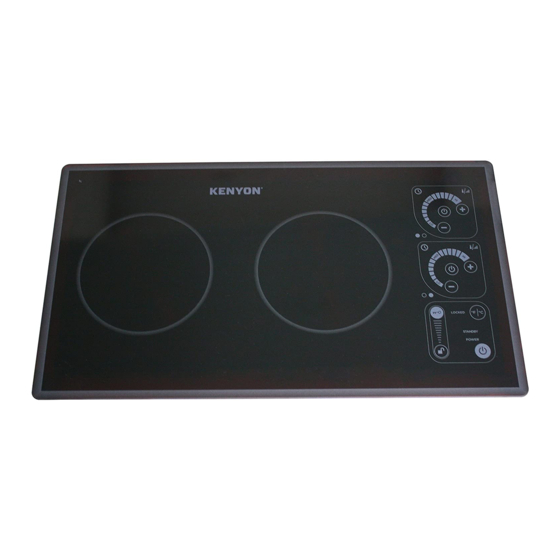

www.CookWithKenyon.com SilKEN 2 INDUCTION COOKTOP ® OWNERS MANUAL Part # 145089 Created: April 2, 2014 Revised: October 2, 2014... -
Page 2: Table Of Contents
Cooktop Timer Options- Kitchen Timer and Cooking Timer ..........Cleaning ..........................Maintenance ........................Error Code Readout ......................Troubleshooting Index ......................Warranty Information ........................Kenyon International, Inc. 8 Heritage Park Road P.O. Box 925 Clinton, CT 06413 USA Phone: 860-664-4906 www.CookWithKenyon.com... -
Page 3: Safety Guidelines
Loose fitting or hanging garments should never be worn while using the appliance. Fabric or other flammable materials may contact hot surfaces during operation and may ignite and result in personal injury. User Servicing Do not repair or replace any part of the appliance. If service ever becomes necessary, this appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer Care at (860)664-4906. Storage in or on Appliance Flammable materials should not be stored above, under or near surface cooking units. Keep flammable materials away from cooktop. Do not store plastic material (such as plastic utensils) in storage areas beneath cooktop. - Page 4 Cookware should always be dry. Do not heat cookware with excess water droplets on the outside of the pan. The droplets may begin to boil and splatter. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even though they are dark in color. Areas near surface may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the induction elements and surrounding glass surface. DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM WITH THE KENYON SilKEN INDUCTION COOKTOP FOR ® FUTURE REFERENCE.
- Page 5 Les tables de cuisson brisées ou fissurées pourraient laisser pénétrer les déversements ou solutions nettoyantes créant un danger de court-circuit ou d’électrocution. Communiquez immédiatement avec un centre de service auto- risé ou avec le Service d’assistance à la clientèle de KENYON au 860-664-4906. Faites attention lors du nettoyage de la table de cuisson.
- Page 6 Les éléments d’induction et la surface en vitre font partie de ces surfaces environnantes. NE JETEZ PAS CE MANUEL, CONSERVEZ-LE PRÈS DE VOTRE TABLE DE CUISSON KENYON SilKEN POUR RÉFÉRENCE FUTURE. ®...
-
Page 7: Product Specifications
SilKEN Induction Series Cooktop ® PRODUCT SPECIFICATIONS B81321 - 120V AC - two 6.5” (165mm) @ 1300 watts, maximum load 1800 watts combined B81331 - 240V AC - two 6.5” (165mm) @ 1300 watts, maximum load 1800 watts combined B81325 - 120V AC - two 6.5” (165mm) @ 1300 watts, maximum load 1800 watts combined B81335 - 240V AC - two 6.5”... -
Page 8: Installation Guide
Important : Cet appareil doit être installé correctement et mis à la terre par un technicien qualifié. STEP # 1 Unpacking the Cooktop Carefully unpack the cooktop from its shipping container. If possible, retain the original shipping carton and protective packaging in the event the unit ever has to be returned for service. Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. • SilKEN 2 Induction Cooktop (2) Mounting brackets ® •... -
Page 9: Step # 2 - Checking The Electrical Supply Requirements
Check the Electrical Supply Requirements This product must be installed in accordance with national, state and local electric codes. The following table provides the correct voltage, amperage and frequency that must be supplied to the cooktop. Max Connected Required Power Minimum Kenyon Part # Model # Load Supply Input Wire Size B81321 IND2BTL 1800 Watts... - Page 10 A - 13 inches maximum depth of overhead cabinets B - 36 inches is minimum height of countertop above floor C - The minimum flat countertop surface that the cooktop will rest upon must be equal to or greater than the overall cooktop dimensions (refer to the following page for overall cooktop dimensions). D - 30 inches minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet or 24 inch minimum clearance when the bottom of the wood or metal cabinet is protected by not less than 1/4-inch-thick flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015-inch-think stainless steel, 0.024-inch-thick aluminum or 0.020-inch-thick-copper. E - 1-inch minimum from backsplash of countertop to edge of glass (refer to the following page for overall cooktop dimensions). Fig. A FOR INSTALLATIONS IN CANADA: “Do Not Install Closer Than 1/2 Inch (12mm) From Any Adjacent Surface”, and NE PAS INSTALLER A’MDINS DE 12MM DETOUTE SURFACE ADJACENTE.
-
Page 11: Step # 4 - Installing The Cooktop
Allow a 2” minimum clearance between the bottom of the metal pan of the cooktop and any combustible surface located below, ie: the upper edge of a drawer installed below the cooktop (see Fig. B). Failure to provide proper clearance and ventilation may result in a fire hazard. NOTE: When making countertop cutout, radius the corner of the cutout (1/4” radius is typical). This will prevent cracking of the countertop. Follow the countertop manufacturer’s instructions regarding the minimum corner radius and reinforcement of corners. STEP #4 silicone to seal the Installing the Cooktop glass edge if desired The cooktop is supplied with two metal mounting brackets. These brackets are glass panel designed to hold the cooktop firmly in place. The cooktop does not have a metal frame putty and should be sealed to the countertop. -
Page 12: Step # 5 - Electrical Connection
à la terre. Un fil de mise à la terre séparé doit être utilisé. STEP #6 Final Preparations Prior to Use Remove the plastic film from the cooktop. Clean the cooktop before you use it for the first time. A thorough cleaning with a recommended cooktop cleaner (Cerama Bryte Ceramic Cooktop Cleaner) will provide a clean, shiny coating on the cooktop surface. The next section of the manual covers cooktop use, maintenance and service information. Please keep these instructions with the KENYON cooktop for future reference. -
Page 13: Induction Cooktop
Induction cooking will not work with aluminum, copper or glass pots. COOKWARE Induction only works with cookware made of ferrous metals - metals to which magnets will stick such as cast iron and magnetic stainless steel, and will not work with aluminum or other metals. To test your cookware for induction cooking simply place your Kenyon magnet on the bottom of the pot or pan and see if it sticks. If the magnet does not stick to your cookware it will not work. Use cookware that will fit the burner size and has a flat bottom. By using cookware with the correct diameter, you should achieve maximum heating efficiency with the shortest possible boiling times. -
Page 14: Induction Cooktop Control Safety Lock Feature
INDUCTION COOKTOP CONTROL SAFETY LOCK FEATURE When the LOCK LED is illuminated in the main power control frame, the cooktop touch control power settings can’t be adjusted from the current setting. Pressing either the zone power button or the master power button however, can turn off the cooktop. The LED arc light array will no longer illuminate when in the lock mode. The lock feature can be activated at any time as a safety measure, whether the unit power is on or off. When the unit has power the STANDBY light will illuminate. Refer to Figure D. To unlock the cooktop, swipe the LOCK feature with your fingertip along the gradient surface, from the LOCK to the UNLOCK position as indicated by the key and open padlock graphics or touch and hold the UNLOCK graphic for 3 seconds. To LOCK the cooktop, swipe from the UNLOCK to the LOCK position or touch and hold the LOCK button for 3 seconds. MAIN POWER AND SAFETY LOCK BURNER CONTROL FRAME HOT SURFACE INDICATOR STANDBY LIGHT POWER BUTTON MAIN POWER LOCK FEATURE Fig. D CONTROL FRAME POWERING UP THE COOKTOP With the unit unlocked, touch the POWER button in the main control frame. Activate either burner by holding the burner power button in the burner control frame for 1/2 second and choosing a... -
Page 15: Induction Cooktop Cooking Options- Heating Level Or Cooking Temperature
BURNER CONTROL FRAME INDUCTION COOKTOP COOKING OPTIONS- HEATING LEVEL OR HOT SURFACE INDICATOR COOKING TEMPERATURE The induction cooktop burners can be independently operated by either a heating level ranging from low to high, or by setting a specific cooking temperature. STANDBY LIGHT Power sharing between burners will take effect when both burners are used. Refer to the Power Sharing section of this manual on page 15. POWER BUTTON HEAT LEVEL COOKING MODE With the unit power on and the burner powered up, swipe your finger along the temperature control arc and release at the desired setting. The settings range from LOW-MED-HIGH in 16 increments, as indicated by the LED light array that illuminates along the control sweep. -
Page 16: Temperature Cooking Mode
TEMPERATURE COOKING MODE Select the temperature cooking mode by touching the thermometer/gradient graphic within the chosen burner control frame. Select the desired cooking temperature, ranging from 150° to 450°F (65° to 232°C), in 10°F (12°C) increments. The selection can be made by pressing + or – buttons for each increment change, or swiping the arc. The selected cooking temperature value will illuminate and flash in the control frame while the selection is in progress. The value will flash until the temperature is reached. After the temperature has been reached the value will illuminate steady, and the cooking temperature will remain set unless it is changed. The default temperature setting is always 150°F (65°C) upon startup in temperature cooking mode. Refer to Figure F. TEMPERATURE COOKING MODE BURNER CONTROL FRAME COOKING TEMPERATURE READOUT TEMPERATURE COOKING MODE BUTTON + BUTTON - BUTTON Fig. -
Page 17: Cooktop Timer Options- Kitchen Timer And Cooking Timer
COOKTOP TIMER OPTIONS- KITCHEN TIMER AND COOKING TIMER Kitchen Timer The kitchen timer is a general timer that has many uses around the kitchen, independent of cooking activity on the induction cooktop. Activate the main power and touch the timer clock graphic within either burner control frame. Set the desired time duration by touching the + and – buttons, holding the button to increase or decrease the setting. Refer to Figure G. A beep will sound at the start of the setting and the set time will display in the control fame. The time increments will run from 1-10 minutes in 1 minute increments, and then change to 5 minute increments. The time reading will speed up as the touch is held. Touch the timer button again to start. If no time is set, the timer will deactivate after 20 seconds. -
Page 18: Cleaning
SilKEN 2 Maintenance ® The Kenyon induction cooktop is a sealed unit that does not require regular maintenance. Please follow our operating instructions as mentioned above. If your SilKEN 2 requires service, this ® must be preformed by Authorized Personnel only. Please call Kenyon Customer Care at 860-664-4906. -
Page 19: Error Code Readout
2 Induction Cooktop Troubleshooting Index below and take action ® as noted. De-power and re-start the unit to clear the display. Allow the unit to cool as necessary. Lock out the main power supply to the unit by closing the breaker before performing any wiring operations. If the problem persists, please call Kenyon Customer care at 860-664-4906, M-F, 8AM – 5PM EST or email at customercare@cookwithkenyon.com. SILKEN 2 INDUCTION COOKTOP TROUBLESHOOTING INDEX ®... -
Page 20: Warranty Information
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY, WHETHER EXPRESSED, IMPLIED OR STATUTORY. Some countries or states do not allow exclusion or limitation of consequential or incidental damages so this limitation or exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS THAT MAY VARY FROM COUNTRY TO COUNTRY AND STATE TO STATE. Kenyon International, Inc. P.O. Box 925 • 8 Heritage Park Road • Clinton, CT 06413 USA Phone (860) 664-4906 FAX: (860) 664-4907...
