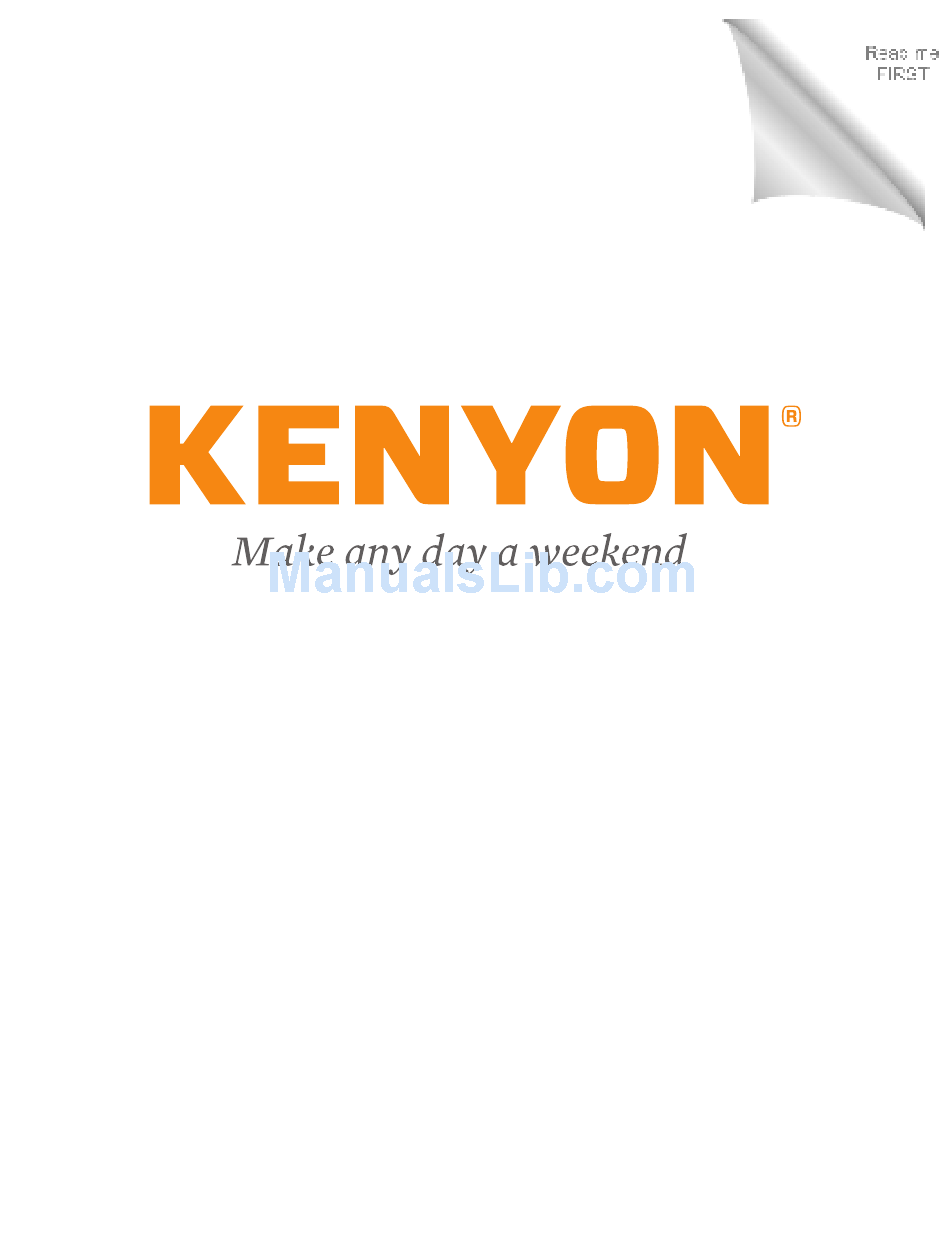

Page 1: Owners Manual
www.CookWithKenyon.com 1 & 2 BURNER ALCOHOL/ELECTRIC C O M B I N A T I O N S C O O K T O P S OWNERS MANUAL Part # 141358 Created: January 15, 2013 Revised: October 13, 2014... -
Page 2: Table Of Contents
Burner Operating Instructions ..................Electric Operation Operation of Electric Elements..................Closing The Glass Lid....................... Using The Adjustable Glass Lid ..................Stove Replacement Parts....................Warranty Information ....................... Kenyon International, Inc. 8 Heritage Park Road P.O. Box 925 Clinton, CT 06413 USA Phone: 860-664-4906 www.CookWithKenyon.com... -
Page 3: Important Safeguards
User Servicing Do not repair or replace any part of the appliance. If service ever becomes necessary, this appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer Care at (860)664-4906. Storage in or on Appliance Flammable materials should not be stored above, under or near surface cooking units. - Page 4 Do not cook on broken cooktop. If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact an authorized service center or KENYON Customer Care immediately at (860) 664-4906. Clean cooktop with caution.
-
Page 5: Product Specifications
PRODUCT SPECIFICATIONS Alcohol Electric Cooktop Two Burner Units B61148 - 120V AC - two 8” (200mm) @ 2200 watts B61149 - 240V AC - two 8” (200mm) @ 2200 watts Overall dimensions: 22 1/2” x 13 1/2” x 5 3/4”... -
Page 6: Step # 1 - Unpacking The Cooktop
Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. •... -
Page 7: Step # 2 - Checking The Electrical Supply Requirements
Standards Covering Galley Stoves,” and/or the “Fire Protection Standards for Motorcraft” NFPA #302. The following table provides the correct voltage, amperage and frequency that must be supplied to the cooktop. Kenyon Part # Model # Max Connected Required Power Suggested Wire Size Based... - Page 8 12 3/4" 3" Radius required 3" Radius required 5 3/4" 5 3/4" 21 3/4" 12 3/4" 12 1/4" 12 1/4" B61144 & B61145 B61148 & B61149 WARNING: FAILURE TO PROVIDE PROPER CLEARANCES AND VENTILATION MAY RESULT IN A FIRE HAZARD.
-
Page 9: Step # 4 - Installing The Cooktop
Remove any protective or packaging material from the cooktop. Clean the cooktop before you use it for the first time. The next section of the manual covers cooktop use, maintenance and service information. Please keep these instructions with the KENYON cooktop for future reference. -
Page 10: Alcohol Operation
ALCOHOL OPERATION WARNING: OPEN FLAME COOKING APPLIANCES CONSUME OXYGEN AND PRODUCE CARBON MONOXIDE. TO AVOID ASPHYXIATION OR INJURY OR DEATH FROM EXPOSURE TO CARBON MONOXIDE, MAINTAIN OPEN VENTILATION WHEN USING THIS APPLIANCE. READ SAFETY INSTRUCTIONS BEFORE OPERATING YOUR APPLIANCE The cooking surface and control areas of your Alcohol Electric cooktop are identified by coil burner(s) in the cooktop. -
Page 11: Alcohol Burner Fueling Instructions
ALCOHOL BURNER FUELING INSTRUCTIONS The burners are designed exclusively for denatured ethyl alcohol which is readily available as “alcohol stove fuel” at marine stores. DO NOT SUBSTITUTE ANY OTHER FUEL AS FIRE OR EXPLOSION COULD RESULT. A denatured ethyl alcohol fire is readily extinguished by water, or by smothering it with a non-combustible material. -
Page 12: Burner Operating Instructions
WARNING: Improper stove fueling practices can result in fire and/or explosion. To avoid severe injury or death from fire or explosion, follow the manufacturer’s refueling instructions that are printed in your manual as well as on the stove. SELF-PRIMING / SELF PRESSURIZED BURNER Cross Sectional View Burner Jets Air Flow... -
Page 13: Electrical Operation
ELECTRICAL OPERATION Controls are located in the rim of the frame: for alcohol burners, the controls are located in the front of the appliance; for electric elements, the controls are located in the sides as shown below in the figure. WARNING: NEVER OPERATE ALCOHOL BURNER(S) AND ELECTRIC ELEMENT(S) SIMULTANEOUSLY. -
Page 14: Closing The Glass Lid
CLOSING THE GLASS LID If your Kenyon Custom Cooktop is equipped with a glass lid, care should be followed when lowering the lid onto the stove. NEVER CLOSE THE LID ON AN OPEN FLAME OR AN ELECTRIC ELEMENT THAT IS HOT OR TURNED “ON”. Make sure that the appliance is cool before lowering the glass lid onto the frame. -
Page 15: Stove Replacement Parts
STOVE REPLACEMENT PARTS 436 Model Shown PART # Description USED ON Air Deflector Assembly All 436 Models B93077 Air Deflector Assembly All 213 Models B93075 Electric Element Assembly - 120 Volts 120 Volt Models 240360 Electric Element Assembly 240 Volts 240 Volt Models H2003-1 Indicator Light - 120 Volts... -
Page 16: Warranty Information
Warranty Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
