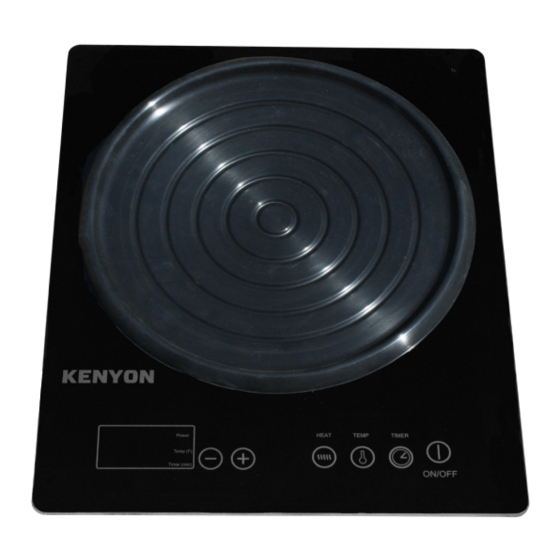

- Page 1 SilKEN Single Burner Induction Cooktops ® Use & Care Guide - Installation Manual 120V and 240V Models Kenyon International, Inc. P.O. Box 925 8 Heritage Park Road Clinton, CT 06413 Part# 143787 Phone: 860-664-4906 Created: September 13, 2012 Fax: 860-664-4907 Revised: www.cookwithkenyon.com...
-
Page 2: Table Of Contents
Table of Contents Section Page Important Safeguards ........................ Product Specifications ......................Installation Instructions Step # 1 - Unpacking the Cooktop ..................Step # 2 - Checking the Electrical Supply Requirements ..........Step # 3 - Countertop Preparation ..................Step # 4 - Installing the Cooktop ..................Step # 5 - Electrical Connection .................. -
Page 3: Important Safeguards
Loose fitting or hanging garments should never be worn while using the appliance. Fabric or other flammable materials may contact hot surfaces during operation and may ignite and result in personal injury. User Servicing Do not repair or replace any part of the appliance. If service ever becomes necessary, this appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer Care at (860)664-4906. Storage in or on Appliance Flammable materials should not be stored above, under or near surface cooking units. Keep flammable materials away from cooktop. Do not store plastic material (such as plastic utensils) in storage areas beneath cooktop. - Page 4 Do not use aluminum foil on the surface of the cooktop. Cookware should always be dry. Do not heat cookware with excess water droplets on the outside of the pan. The droplets may begin to boil and splatter. Do not touch surface units or areas near units. Surface units may be hot even though they are dark in color. Areas near surface may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the heating elements and surrounding glass surface. DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM WITH THE KENYON COOKTOP FOR FUTURE REFERENCE.
-
Page 5: Product Specifications
.010" THREE PLACE DECIMAL .005" MFG APPR. Q.A. INTERPRET GEOMETRIC PROPRIETARY AND CONFIDENTIAL TOLERANCING PER: ANSI COMMENTS: THE INFORMATION CONTAINED IN THIS MATERIAL DRAWING IS THE SOLE PROPERTY OF KENYON INTERNATIONAL. ANY FINISH REPRODUCTION IN PART OR AS A WHOLE... -
Page 6: Step # 1 - Unpacking The Cooktop
Save this document for review by local inspector. Important: This appliance must be properly installed and grounded by a qualified technician. STEP # 1 Unpacking the Cooktop Carefully unpack the cooktop from its shipping container. If possible, retain the original shipping carton and protective packaging in the event the unit ever has to be returned for service. Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. • SilKEN Induction Cooktop (2) Mounting brackets ® • •... -
Page 7: Step # 2 - Checking The Electrical Supply Requirements
Check the Electrical Supply Requirements This product must be installed in accordance with national, state and local electric codes. The following table provides the correct voltage, amperage and frequency that must be supplied to the cooktop. Max Connected Required Power Minimum Kenyon Part # Model # Load Supply Input Wire Size B80120 IND1B 1600 Watts... - Page 8 A - 13 inches maximum depth of overhead cabinets B - 36 inches is minimum height of countertop above floor C - The minimum flat countertop surface that the cooktop will rest upon must be equal to or greater than the overall cooktop dimensions (refer to the following page for overall cooktop dimensions). D - 30 inches minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet or 24 inch minimum clearance when the bottom of the wood or metal cabinet is protected by not less than 1/4-inch-thick flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015-inch-think stainless steel, 0.024-inch-thick aluminum or 0.020-inch-thick-copper. E - 1-inch minimum from backsplash of countertop to edge of glass (refer to the following page for overall cooktop dimensions). Fig. A FOR INSTALLATIONS IN CANADA: “Do Not Install Closer Than 1/2 Inch (12mm) From Any Adjacent Surface”, and NE PAS INSTALLER A’MDINS DE 12MM DETOUTE SURFACE ADJACENTE.
-
Page 9: Step # 4 - Installing The Cooktop
FINISH REPRODUCTION IN PART OR AS A WHOLE NEXT ASSY USED ON WITHOUT THE WRITTEN PERMISSION OF KENYON INTERNATIONAL IS PROHIBITED. STEP #4 APPLICATION DO NOT SCALE DRAWING Installing the Cooktop There are two mounting brackets supplied with the glass ceramic cooktop. These brackets are designed to hold the cooktop firmly in place. The cooktop does not have a metal frame and... -
Page 10: Step # 5 - Electrical Connection
5 for appropriate electrical requirements. The cooktop is supplied with either a 15 amp US cord for 120V units, or flying leads for 240V units. The 120V 15 amp US cord plugs into any standard household 120V outlet. The 240V conduit consists of three insulated wires. There are two insulated hot lead conductors (red and black) and one insulated ground conductor (green). -
Page 11: Induction Cooking
OPERATION READ SAFETY INSTRUCTIONS BEFORE OPERATING YOUR APPLIANCE The cooking surface area of your SilKEN induction cooktop is identified by inset induction zone ® pattern in the cooktop. The appliance is easy to maintain and easy to clean. Keeping the cooktop in top performance can be achieved by following the simple guidelines for use and cleaning below: INDUCTION COOKING In induction cooking, when a cast iron or magnetic pan is placed above the inset induction zone the generator under the glass produces a magnetic field which instantly generates heat in the cooking vessel. Induction cooking will not work with aluminum, copper or glass pots. The ceramic glass surface itself does not generate heat. When the induction generator is activated, the steel cooking vessel immediately begins to heat up. -
Page 12: Initial Start-Up
INITIAL START-UP The red LED near the power always remains on when plugged in or connected and the power is present even when the cooktop is turned off. Clean the cooktop before you use it for the first time. A thorough cleaning with our recommended cooktop cleaner (Cerama Bryte Ceramic Cooktop Cleaner) will provide a coating on the cooktop prior to its first use. A sample is included with your Kenyon cooktop. The induction cooktop surface should be free of any foreign substances before use. CONTROLS OF INDUCTION COOKTOP Heat Turn the power on by pressing the ON/OFF button once. The power light will turn to steady red and heating will begin. Once the cooktop is turned on the power stage defaults to level 5. Then the heat level is chosen, by holding a finger over the circular areas marked with the + or -. Change the heat settings any time by selecting power levels 1 thru 10. When the desired heat level is reached the finger is removed and the cooktop remains at that heat level. Temp After the default power stage 5 is selected, press the TEMP key. The default temperature of F will be displayed. Then the temperature level is chosen, by holding a finger over the circular areas marked with the + or -. Change the temperature settings any time by selecting F thru 450 F by pressing the + or - the temperature increases or decreases by 30 F. When the desired temperature is reached the finger is removed and the cooktop remains at that temperature. Timer After having selected the heat or temperature setting, press the TIMER key. The number 0... -
Page 13: Cleaning
SilKEN Maintenance ® The Kenyon induction cooktop is a sealed unit that does not require regular maintenance. Please follow our operating instructions as mentioned above. If your SilKEN requires service, this must ® be preformed by Authorized Personnel only. Please call Kenyon Customer Care at 860-664-4906. -
Page 14: Error Code List
The current draw is too high The voltage is too low The voltage is too high The cooktop or internal parts are damaged, please contact Kenyon Customer Care for trouble shooting, repair and adjustments. The cooktop and internal parts are damaged, please contact Kenyon Customer Care for trouble shooting, repair and adjustments. -
Page 15: Warranty Information
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY, WHETHER EXPRESSED, IMPLIED OR STATUTORY. Some countries or states do not allow exclusion or limitation of consequential or incidental damages so this limitation or exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS THAT MAY VARY FROM COUNTRY TO COUNTRY AND STATE TO STATE. Kenyon International, Inc. P.O. Box 925 • 8 Heritage Park Road • Clinton, CT 06413 USA Phone (860) 664-4906 FAX: (860) 664-4907...
