Your VM-2HDMI 1:2 HDMI Distributor

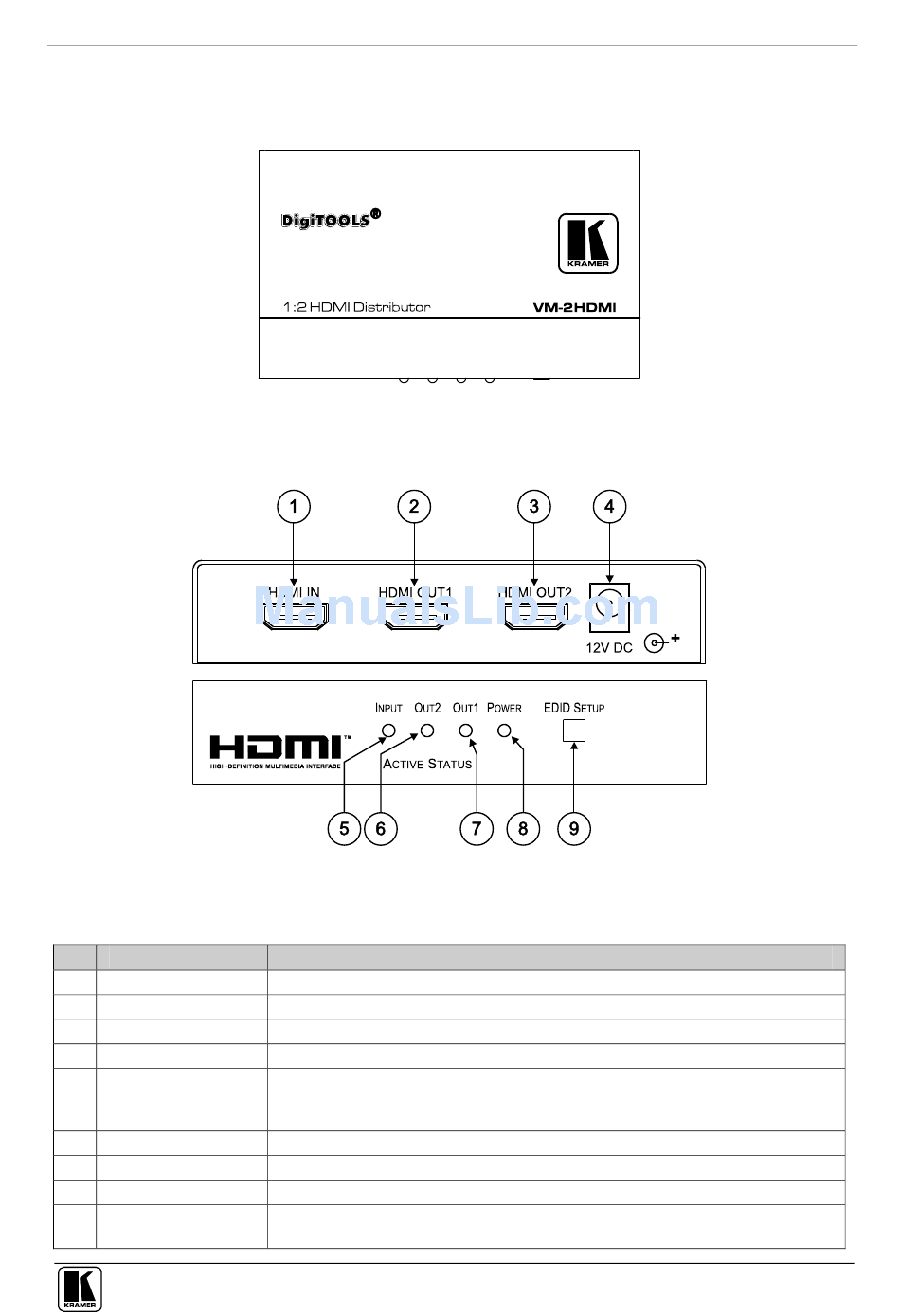

Figure 1 illustrates the VM-2HDMI 1:2 HDMI Distributor:
Figure 2 and Table 1 define the top and lower side panels:

Figure 2: VM-2HDMI 1:2 HDMI Distributor (Top and Lower Side Panesl)

Table 1: VM-2HDMI 1:2 HDMI Distributor (Top and Lower Side Panels) Features

#
Feature
1
HDMI IN
2
HDMI OUT1
3
HDMI OUT2
4
12V DC
5
INPUT LED
6
OUT2 LED
7
OUT1 LED
8
POWER LED
9
EDID SETUP Button
Your VM-2HDMI 1:2 HDMI Distributor

Figure 1: VM-2HDMI 1:2 HDMI Distributor

Function
Connects to the HDMI source
Connects to the HDMI acceptor 1
Connects to the HDMI acceptor 2
+12V DC connector for powering the unit
Blinks when the stored EDID does not match the display device EDID;
illuminates when the EDID corresponds to the display device and that HDMI
source is active
Blinks during the EDID setup; illuminates when output 2 is connected
Blinks during the EDID setup; illuminates when output 1 is connected
Illuminates when receiving power
Press for more than 3 seconds to acquire the EDID information from the
display
