Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VM-24HC 2 Input 1:4 HDMI Distributor P/N: 2900-000717 Rev 3... -
Page 3: Table Of Contents
Connecting a PC/Controller via RS-232 Acquiring the EDID Technical Specifications Default Communication Parameters Default EDID Protocol 2000 Syntax Instruction Codes Figures Figure 1: VM-24HC 2 Input 1:4 HDMI Distributor Figure 2: Connecting the VM-24HC 2 Input 1:4 HDMI Distributor VM-24HC – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VM-24HC 2 Input 1:4 HDMI Distributor, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VM-24HC away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
EDID handling that acquires the EDID from one output, from all connected outputs (auto−mix) or uses a default EDID Kramer Equalization & re-Klocking™ Technology that rebuilds the digital signal to travel longer distances HDMI support for Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels ... -
Page 8: Defining The Vm-24Hc 2 Input 1:4 Hdmi Distributor

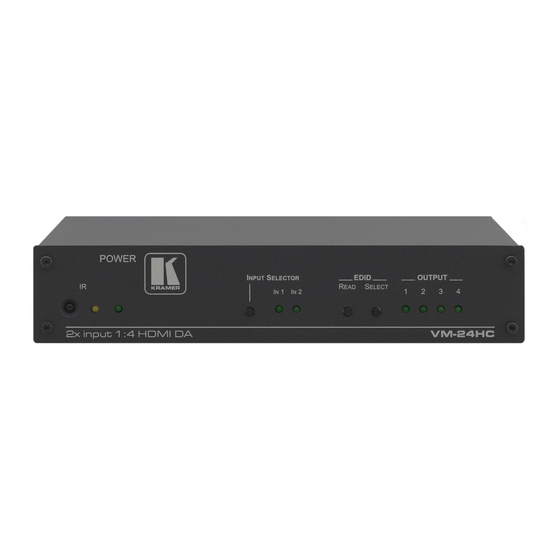

Defining the VM-24HC 2 Input 1:4 HDMI Distributor This section defines the VM-24HC. Figure 1: VM-24HC 2 Input 1:4 HDMI Distributor Feature Function IR Receiver IR signal sensor for the IR remote control IR LED Lights yellow when the device receives an IR signal... -
Page 9: Connecting The Vm-24Hc
VM-24HC. After connecting your VM-24HC, connect its power and then switch on the power to each device. To connect the VM-24HC as illustrated in the example in Figure 1. Connect the two HDMI sources, for example, a DVD player and a set top box to the INPUT 1 and INPUT 2 connectors, respectively. - Page 10 Figure 2: Connecting the VM-24HC 2 Input 1:4 HDMI Distributor VM-24HC - Connecting the VM-24HC...
-
Page 11: Using The Vm-24Hc 2 Input 1:4 Hdmi Distributor
Using the VM-24HC 2 Input 1:4 HDMI Distributor The VM-24HC always displays the video output on all of the four outputs at the same time (once they are ready to display the output) upon power up and when switching an input (from IN 1 to IN 2 and vice versa). -
Page 12: Acquiring The Edid
Acquiring the EDID Initially the VM-24HC operates with the factory default EDID stored in the non- volatile memory. The source reads the EDID from the device when the device is plugged in or powered on. This is usually done only once when the unit is being set up in an installation. Once acquired, the EDID is saved in non-volatile memory and further acquisition is not necessary. - Page 13 OUTPUT 2 LED flashes—the EDID from OUTPUT 2 was the last acquired, and so on All OUTPUT LEDs light—the default EDID was the last acquired All OUTPUT LEDs flash sequentially—the Auto-Mix EDID was the last acquired VM-24HC - Using the VM-24HC 2 Input 1:4 HDMI Distributor...
-
Page 14: Technical Specifications
10% to 90%, RHL non-condensing 21.5cm x 16.3cm x 4.4cm (8.5” x 6.4” x 1.7”) W, D, H DIMENSIONS: WEIGHT: 0.6kg (1.3lbs) approx. ACCESSORIES: Power supply RK-1 19” rack adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com VM-24HC - Technical Specifications... -
Page 15: Default Communication Parameters
EDID EDID data is passed between Output 1 and Input 1 RS-232 Protocol 2000 Baud Rate 9600 Data Bits Stop Bits Parity None Command Format Example (Output 1 to Input 1) 0x01, 0x81, 0x81, 0x81 VM-24HC - Default Communication Parameters... -
Page 16: Default Edid
Detailed timing #3..1280x720p at 60Hz (16:10) Modeline...."1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync Detailed timing #4..720x480p at 60Hz (16:10) Modeline...."720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync VM-24HC - Default EDID... - Page 17 Front left/right center.. No Rear left/right center... No Rear LFE....No Report information Date generated... 08-Dec-11 Software revision..2.60.0.972 Data source....File Operating system..5.1.2600.2.Service Pack 3 Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,23,00,01,01,01,01,0A,13,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26, 10,50,54,A5,4B,00,81,80,A9,40,71,4F,01,01,01,01,01,01,01,01,01,01,01,1D,00,72,51,D0,1E,20,6E,28, 55,00,07,44,21,00,00,1E,00,00,00,FF,00,35,30,35,2D,37,30,37,34,35,35,30,31,30,00,00,00,FC,00,56, 4D,32,34,48,43,20,20,20,20,20,20,0A,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,01,B7, 02,03,1B,F1,48,10,05,84,03,02,07,16,01,23,09,07,07,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47 VM-24HC - Default EDID...
-
Page 18: Protocol 2000
The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. Note: Compatibility with Kramer’s Protocol 2000 does not mean that a machine uses all of the commands below. Each machine uses a sub-set of Protocol 2000, according to its needs. -
Page 19: Instruction Codes
NOTE 16 – The reply to the REQUEST WHETHER PANEL IS LOCKED is the same as in NOTE 4 above, except that OUTPUT is assigned with the value 0 if the panel is unlocked, or 1 if it is locked. VM-24HC - Protocol 2000... - Page 21 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
