Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: VM-2DH DisplayPort to DVI/HDMI Converter P/N: 2900-300264 Rev 3... -
Page 3: Table Of Contents
Recycling Kramer Products Overview Defining the VM-2DH DisplayPort to DVI/HDMI Converter Connecting the VM-2DH Acquiring the EDID Technical Specifications Figures F igure 1: VM-2DH DisplayPort to DVI/HDMI Converter F igure 2: Connecting the VM-2DH DisplayPort to DVI/HDMI Converter VM-2DH – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer VM-2DH away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
HDCP (High-Bandwidth Digital Content Protection) compatible. Since high-resolution DVI signals are very sensitive to cable quality and to PCB layout, the VM-2DH uses a uniquely designed PCB which includes all buffering, conditioning and amplifying circuitry to provide two high-level output signals. -
Page 8: Defining The Vm-2Dh Displayport To Dvi/Hdmi Converter

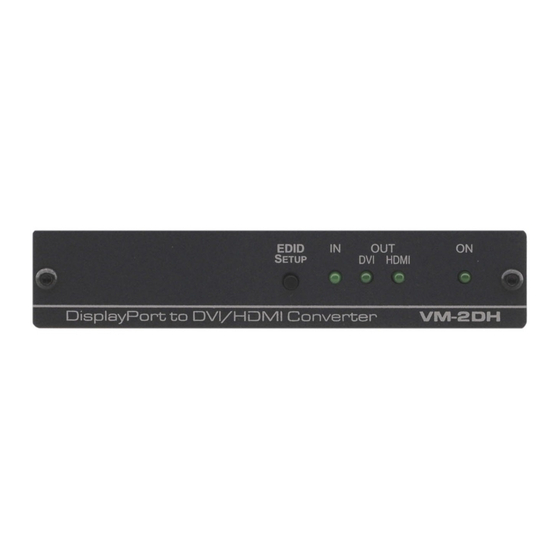

Defining the VM-2DH DisplayPort to DVI/HDMI Converter This section defines the VM-2DH. Figure 1: VM-2DH DisplayPort to DVI/HDMI Converter Feature Function EDID SETUP Button Press to cycle through the EDID sources and to read the EDID (see Section IN LED Lights green when the input is active;... -
Page 9: Connecting The Vm-2Dh
2. Connect the DVI OUT connector to the DVI projector. 3. Connect the HDMI OUT connector to the plasma display. 4. Connect the supplied 5V DC power adapter to the VM-2DH and to the mains electricity. 5. Optional—acquire the EDID (see... -
Page 10: Acquiring The Edid
Acquiring the EDID Initially the VM-2DH operates with the factory default EDID stored in the non- volatile memory. The source reads the EDID from the device when the device is plugged in or powered on. This is usually done only once when the unit is being set up in an installation. Once acquired, the EDID is saved in non-volatile memory and further acquisition is not necessary. - Page 11 4. Release the button when reaching the desired EDID source. The EDID is acquired. If you set the machine to acquire the EDID from an output that is not connected, the default EDID is acquired. VM-2DH - Connecting the VM-2DH...
-
Page 12: Technical Specifications
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H WEIGHT: 0.3kg (0.67lbs) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-3T rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VM-2DH - Technical Specifications... - Page 13 VM-2DH - Technical Specifications...
