Kramer VM-2Hxl Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

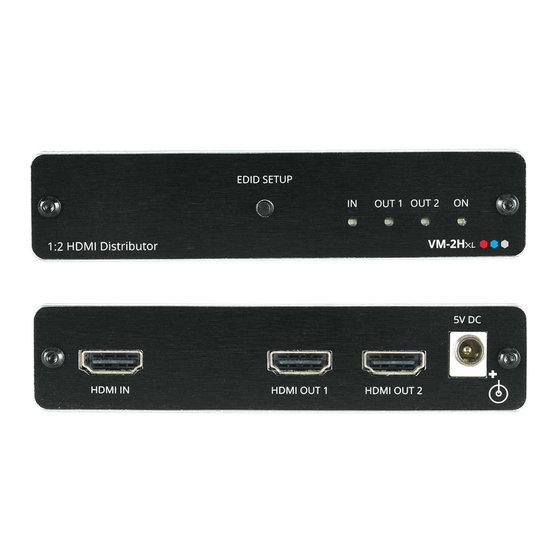

VM-2Hxl 1:2 HDMI Distributor
1 Power supply (5V DC)
Step 2: Mount VM-2Hxl
Install VM-2Hxl using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket on each side of the unit and attach it to a flat surface
www.kramerav.com/downloads/VM-2Hxl
(see
•
Mount the unit in a rack using the recommended rack adapter
www.kramerav.com/product/VM-2Hxl
(see
•
Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the
device.
•
Avoid uneven mechanical loading.
•
Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of
the circuits.
•
Reliable earthing of rack-mounted equipment should be maintained.
•
Maximum mounting height for the device is 2 meters.

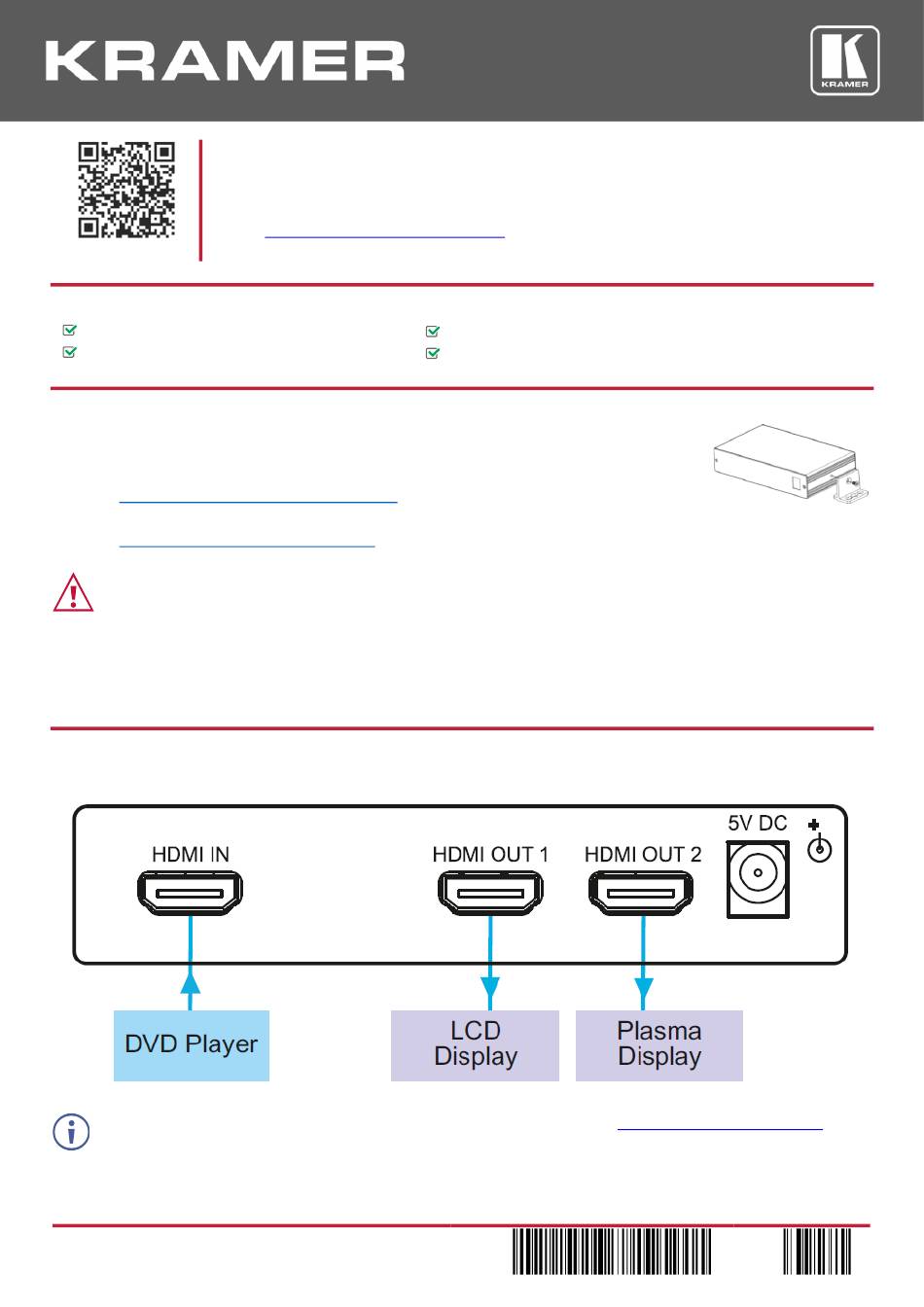

Step 3: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your VM-2Hxl.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-2Hxl.
Using third-party cables may cause damage!
VM-2Hxl Quick Start
VM-2Hxl Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VM-2Hxl
upgrades are available.
).
).
VM-2Hxl for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 0 8 1 2 QS Rev: 4
