Kramer Electronics, Ltd.
Preliminary

USER MANUAL

Model:
VM-2Hxl
1:2 HDMI Distributor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM-2Hxl and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kramer VM-2Hxl

  • Page 1: User Manual

    Kramer Electronics, Ltd. Preliminary USER MANUAL Model: VM-2Hxl 1:2 HDMI Distributor...
  • Page 2: Table Of Contents

    Connecting the VM-2Hxl 1:2 HDMI Distributor Acquiring the EDID Technical Specifications Figures Figure 1: VM-2Hxl 1:2 HDMI Distributor Figure 2: Connecting a VM-2Hxl 1:2 HDMI Distributor Tables Table 1: VM-2Hxl 1:2 HDMI Distributor Features Table 2: Technical Specifications of the VM-2Hxl...
  • Page 3: Introduction

    GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 High-Definition Multimedia Interface 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com...
  • Page 4: Quick Start

    Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps of the VM-2Hxl. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 5: Overview

    Overview Overview The high-quality VM-2Hxl accepts an HDMI input and distributes the signal to two outputs. In particular, the VM-2Hxl features: • Up to 2.25Gbps bandwidth per graphic channel • HDMI Support – HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, CEC) •...
  • Page 6: Defining Edid

    ) is a data-structure, provided by a display, to describe its capabilities to a graphics card (that is connected to the display’s source). The EDID enables the VM-2Hxl to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data...
  • Page 7: Your Vm-2Hxl 1:2 Hdmi Distributor

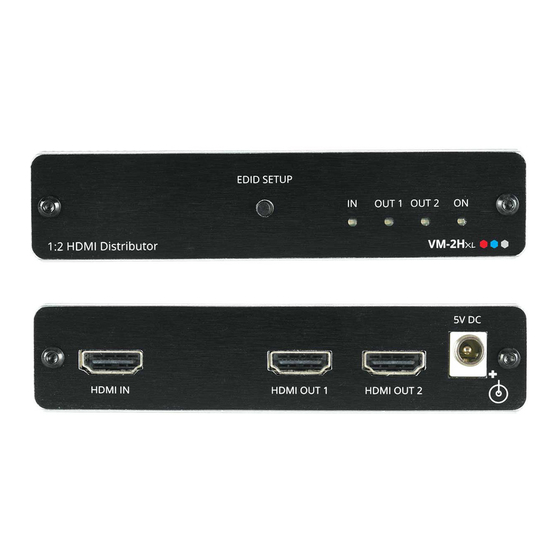

    Your VM-2Hxl 1:2 HDMI Distributor Figure 1 Table 1 define the VM-2Hxl 1:2 HDMI Distributor: Figure 1: VM-2Hxl 1:2 HDMI Distributor Table 1: VM-2Hxl 1:2 HDMI Distributor Features Feature Function Connects to the HDMI source HDMI IN Connects to the HDMI acceptor 1...
  • Page 8: Connecting The Vm-2Hxl 1:2 Hdmi Distributor

    5.2). Figure 2: Connecting a VM-2Hxl 1:2 HDMI Distributor 1 Switch OFF the power on each device before connecting it to your VM-2Hxl. After connecting your VM-2Hxl, switch on its power and then switch on the power on each device...
  • Page 9: Acquiring The Edid

    The EDID is now acquired. 1 The VM-2Hxl reads the EDID, which is stored in the non-volatile memory 2 This is usually done only once, when the machine is being set up in an installation. Once acquired, the EDID is saved in non-volatile memory and further acquisition is not necessary 3 The EDID acquired is a weighted average of all the connected outputs.
  • Page 10: Technical Specifications

    Technical Specifications Technical Specifications Table 2 includes the technical specifications of the VM-2Hxl: Table 2: Technical Specifications of the VM-2Hxl INPUT: 1 HDMI connector OUTPUTS: 2 HDMI connectors BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel COMPLIANCE WITH Supports HDMI and HDCP...
  • Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
