Summary of Contents for Kramer VM-212HDMI
-
Page 1: User Manual

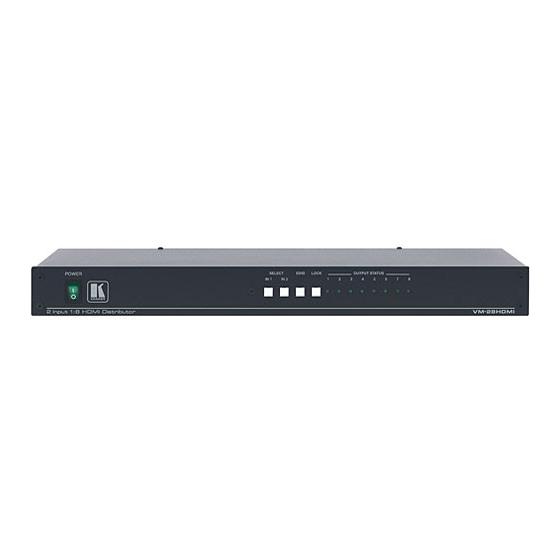

Kramer Electronics, Ltd. USER MANUAL Models: VM-28HDMI, 2 Input 1:8 HDMI Distributor VM-212HDMI, 2 Input 1:12 HDMI Distributor VM-216HDMI, 2 Input 1:16 HDMI Distributor... -
Page 2: Table Of Contents
Figure 2: VM-212HDMI 2 Input 1:12 HDMI Distributor Figure 3: VM-216HDMI 2 Input 1:16 HDMI Distributor Figure 4: Connecting a VM-28HDMI 2 Input 1:8 HDMI Distributor Figure 5: Connecting a VM-212HDMI 2 Input 1:12 HDMI Distributor Figure 6: Connecting a VM-216HDMI 2 Input 1:16 HDMI Distributor Tables... - Page 3 - add after section 6 on page 13: 8 Kramer Protocol 2000 The VM-28HDMI / VM-216HDMI is compatible with Kramer’s Protocol 2000 (version 0.46). You can download it from our Web site at: http://www.kramerelectronics.com PIN 5 Connected to PIN 5 (Ground)
-
Page 4: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 High-Definition Multimedia Interface 3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction , which are clearly defined by function. -
Page 5: Overview
It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter HDCP Licensee 1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions 2 While the machine is ON 3 EDID is Extended Display Identification Data (see section 3.2 for a detailed definition) -
Page 6: Defining Edid
The Extended Display Identification Data (EDID provided by a display, to describe its capabilities to an HDMI source. The EDID enables the VM-28HDMI / VM-212HDMI / VM-216HDMI to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the... -
Page 7: Recommendations For Best Performance
(often associated with low quality cables) Avoid interference from neighboring electrical appliances and position your VM-28HDMI / VM-212HDMI / VM-216HDMI away from moisture, excessive sunlight and dust Your VM-28HDMI / VM-212HDMI / VM-216HDMI... -
Page 11: Using The Vm-28Hdmi / Vm-212Hdmi / Vm-216Hdmi
Using the VM-28HDMI / VM-212HDMI / VM-216HDMI Using the VM-28HDMI / VM-212HDMI / VM-216HDMI This section describes how to: Connect the VM-28HDMI / VM-212HDMI / VM-216HDMI, see section 5.1 Operate the VM-28HDMI / VM-212HDMI / VM-216HDMI, see section 5.2 Use the EDID button, see section 5.2.1 5.1 Connecting the VM-28HDMI / VM-212HDMI / VM-216HDMI... -
Page 12: Connecting The Vm-28Hdmi 2 Input 1:8 Hdmi Distributor
Using the VM-28HDMI / VM-212HDMI / VM-216HDMI 5.1.1 Connecting the VM-28HDMI 2 Input 1:8 HDMI Distributor To connect the VM-28HDMI, as the example in Figure 4 shows, do the following 1. Connect the HDMI OUTPUT connectors Kramer HDMI copper cables. In this example... -
Page 13: Connecting The Vm-212Hdmi 2 Input 1:12 Hdmi Distributor
Figure 5: Connecting a VM-212HDMI 2 Input 1:12 HDMI Distributor 1 Switch OFF the power on each device before connecting it to your VM-212HDMI. After connecting your VM-212HDMI, switch on its power and then switch on the power on each device 2 As required. -
Page 14: Connecting The Vm-216Hdmi 2 Input 1:16 Hdmi Distributor
Using the VM-28HDMI / VM-212HDMI / VM-216HDMI 5.1.3 Connecting the VM-216HDMI 2 Input 1:16 HDMI Distributor To connect the VM-216HDMI, as the example in Figure 6 shows, do the following 1. Connect the HDMI OUTPUT connectors using Kramer HDMI copper cables. In this example... -
Page 15: Operating The Vm-28Hdmi / Vm-212Hdmi / Vm-216Hdmi
2. Select the desired input. 3. Press the EDID button to acquire or change the EDID data (see section 5.2.1). 5.2.1 Using the EDID Button Initially, the VM-28HDMI / VM-212HDMI / VM-216HDMI operates with the factory default EDID. 5.2.2 Acquiring / Changing the EDID You can work with the default EDID or acquire or change an EDID via one of the connected outputs. -
Page 16: Technical Specifications
Technical Specifications Table 2 includes the technical specifications VM-212HDMI and VM-216HDMI: Table 2: VM-28HDMI / VM-212HDMI / VM-216HDMI Technical Specifications VM-28HDMI INPUTS: 2 on HDMI Connectors OUTPUTS: 8 on HDMI Connectors BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel COMPLIANCE Supports HDMI 1.2 and HDCP... - Page 17 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 18 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
