Kramer Electronics, Ltd.
USER MANUAL
Model:
VM-24HC

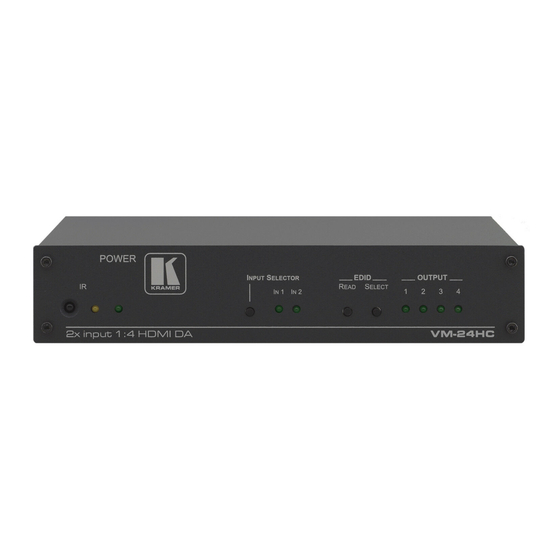

2 Input 1:4 HDMI Distributor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM-24HC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kramer VM-24HC

  • Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VM-24HC 2 Input 1:4 HDMI Distributor...
  • Page 2: Table Of Contents

    Figure 1: VM-24HC 2 Input 1:4 HDMI Distributor Rear Panel Figure 2: Connecting theVM-24HC 2 Input 1:4 HDMI Distributor Tables Table 1: VM-24HC 2 Input 1:4 HDMI Distributor Front and Rear Panel Features Table 2: VM-24HC Technical Specifications Table 3: Default Communication Parameters...
  • Page 3: Introduction

    Our 1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing your Kramer VM-24HC 2 Input 1:4 HDMI Distributor which is ideal for: • Home theater, presentation and multimedia applications •...
  • Page 4: Quick Start

    Getting Started Quick Start This quick start chart summarizes the basic setup and operation. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 5: Overview

    Overview Overview Each high quality VM-24HC accepts one of two HDMI inputs and distributes the selected signal to up to four outputs. The VM-24HC features: • Support for up to 2.25Gbps bandwidth per graphic channel • I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling &...
  • Page 6: Defining The Edid

    ) is a data-structure, provided by a display, to describe its capabilities to an HDMI source. The EDID enables the VM-24HC to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data.
  • Page 7: Defining The Vm-24Hc 2 Input 1:4 Hdmi Distributor

    Figure 1 Table 1 define the VM-24HC. Figure 1: VM-24HC 2 Input 1:4 HDMI Distributor Rear Panel Table 1: VM-24HC 2 Input 1:4 HDMI Distributor Front and Rear Panel Features Feature Function IR Receiver IR signal sensor for the IR Remote Control...
  • Page 8: Using The Vm-24Hc 2 Input 1:4 Hdmi Distributor

    INPUT 1 and INPUT 2 connectors, respectively. 1 Switch off the power on each device before connecting it to your VM-24HC. After connecting your VM-24HC, switch on its power and then switch on the power on each device...
  • Page 9: Selecting An Active Input

    • Press the INPUT SELECTOR button to toggle between inputs 1 and 2 Connecting a PC/Controller via RS-232 You can connect a PC or serial controller to the VM-24HC using the RS-232 connection. Note that a null-modem adapter/connection is not required.
  • Page 10 Using the VM-24HC 2 Input 1:4 HDMI Distributor The EDID can be acquired from: • One output • The default EDID • Up to four connected outputs using the Auto-mix Mode Repeatedly pressing the EDID SELECT button cycles through the EDID sources in the following order •...
  • Page 11: Technical Specifications

    Technical Specifications Technical Specifications Table 2 includes the technical specifications of the VM-24HC 2 Input 1:4 HDMI Distributor. Table 2: VM-24HC Technical Specifications INPUTS: 2 HDMI connectors OUTPUTS: 4 HDMI connectors BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel...
  • Page 12: Default Edid

    Modeline...."1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync Detailed timing #4..720x480p at 60Hz (16:10) Modeline...."720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync CE video identifiers (VICs) - timing/formats supported KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 13 Default EDID 1920 x 1080p at 60Hz - HDTV (16:9, 1:1) 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) 1280 x 720p at 60Hz - HDTV (16:9, 1:1) [Native] 720 x 480p at 60Hz - EDTV (16:9, 32:27) 720 x 480p at 60Hz - EDTV (4:3, 8:9) 720 x 480i at 60Hz - Doublescan (16:9, 32:27) 720 x 576i at 50Hz - Doublescan (16:9, 64:45) 640 x 480p at 60Hz - Default (4:3, 1:1)
  • Page 14: Communication Protocol

    Communication Protocol Communication Protocol The VM-24HC is compatible with Kramer’s Protocol 2000 (version 0.50). This RS-232/RS-485 communication protocol uses four bytes of information as defined below. The default data rate is 9600 baud, no parity, 8 data bits and 1 stop bit.
  • Page 15: Table 5: Instruction Codes For Protocol 2000

    Communication Protocol Table 5: Instruction Codes for Protocol 2000 INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION NOTE DESCRIPTION INPUT OUTPUT SWITCH VIDEO Set equal to video input Set equal to video output which is to 2, 15 which is to be switched be switched (0 = disconnect) (0 = to all the outputs)
  • Page 16 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site 2.
  • Page 17 For the latest information on our products and a list of Kramer distributors where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing. Caution Kramer Electronics, Ltd. P/N: 2900-000717 REV 1...
