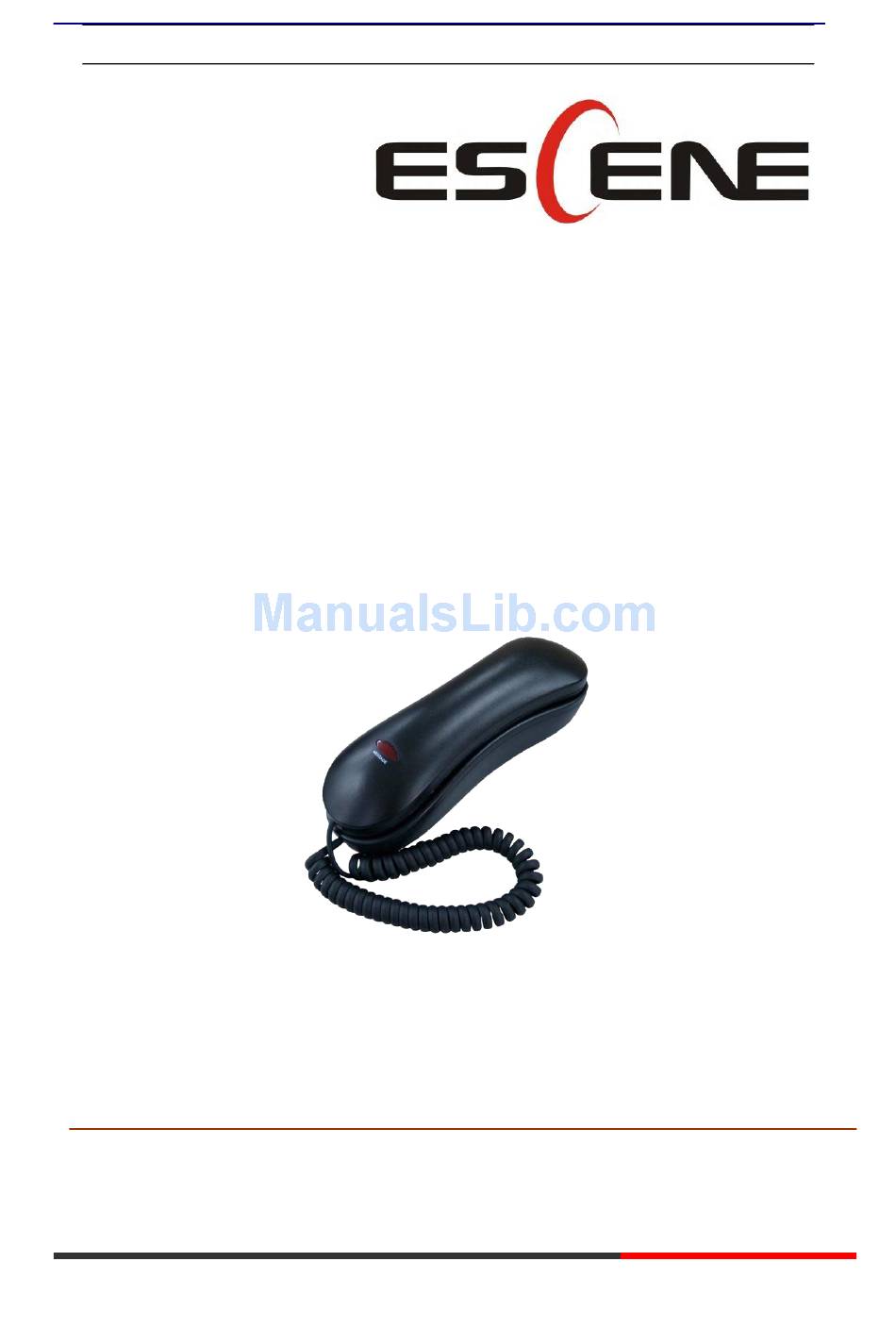

  • Page 1 HS108v2 IPPhone HS108v2 Hotel Compact Type IP Phone User Manual www.escene.cn/en/ Escene Communication...

  • Page 2: Table Of Contents

    HS108v2 IPPhone Tables of Contents 1.Getting Started ..........................1 2.Phone overview ..........................2 3. Basic Call Handling ........................3 Do Not Disturb (WEB set >SIP account>Account 1> Do Not Disturb ) ........4 4. Phone Status ..........................5 5 Net Work ............................6 5.1 LAN Port ..........................
  • Page 3 HS108v2 IPPhone 9.1.2 FTP Upgrade ......................26 9.1.3 TFTP Upgrade ......................27 9.1.4 Default Setting ....................... 27 9.1.5 Reboot ........................28 9.2 Advanced ........................... 28 9.2.1 Log ......................... 28 9.2.2 Auto Provision ......................28 10 Security ............................30 10.1Password .......................... 30 10.2Trusted certificates ......................

  • Page 4: Getting Started

    HS108v2 IPPhone 1.Getting Started Technical Features The following functions in the unit cannot operation, only operate under the WEB. Tips: Item Technical Features Language WEB support Multi-language, e.g. Chinese, English, Russian, French etc. Line Function Flash key, Redial key, Number Keys...

  • Page 5: Phone Overview

    HS108v2 IPPhone 2.Phone overview The unit keys and hardware www.escene.hk/en Escene Communication...

  • Page 6: Basic Call Handling

    Note: The bold type of the following text in table signifies the phone's button. Placing a Call Here are some easy ways to place a call on SayHi HS108v2 IP Phone:： If you want to... Then…...

  • Page 7: Do Not Disturb (Web Set >Sip Account>Account 1> Do Not Disturb )

    HS108v2 IPPhone Ending a Call To end a call, hang up. Here are some more details. If you want to... Then... Hang up while using the -- Return the handset to its cradle Handset Do Not Disturb (WEB set >SIP account>Account 1>...

  • Page 8: Phone Status

    HS108v2 IPPhone 4. Phone Status We can configure IP Phone more handy through web setting.. Enter it (for example http://192.168.0.200) into the address bar of web browser..Tips: Please check IP address by pressing the button ‘*1*1*2’in the on hook status.

  • Page 9: Net Work

    HS108v2 IPPhone 5 Net Work 5.1 LAN Port ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP, PPPoE. DNS Settings Select the DNS mode that you want. www.escene.cn/en/ Escene Communication...

  • Page 10: Advanced

    HS108v2 IPPhone 5.2Advanced 5.2.1VLAN Setting When using VLAN Setting option, you can set several parameters as follow: ITEM DESCRIPTION Enable VLAN You can enable/disable vlan for phone and pc The vlan ID you want the phone or pc to join [LAN/PC Port] 5.2.2Port Management Settings...

  • Page 11: 3Qos

    HS108v2 IPPhone Telnet Port The default Telnet port is 23,if you want to change it(for example change it to 2003). You must input IP and Telnet port to login the manage page (for example telnet 192.168.0.200:2003).It will take effect on next reboot.

  • Page 12: 6Paging Setting

    HS108v2 IPPhone Protocol Enable/Disable CDP CDP Packet Interval CDP Packet Interval Time 5.2.6Paging Setting ITEM DESCRIPTION Paging Setting(NOTE: This feature priority is followed the serial number, In other words, "paging 1" is the highest priority) Paging1 Enable/Disable Paging feature. Group IP and Port Group IP and Port with Paging.

  • Page 13: 7Socket5 Proxy Server

    HS108v2 IPPhone 5.2.7Socket5 Proxy Server ITEM DESCRIPTION Socket5 Proxy Server Enable/Disable Socket5 Proxy Server. Server IP Socket5 Proxy Server IP address. Port Socket5 Proxy Server port, default is 1080. Anonymous Login Enable/Disable Socket5 Proxy Server login username. www.escene.cn/en/ Escene Communication...

  • Page 14: Sip Account

    HS108v2 IPPhone 6 SIP Account 6.1Basic ITEM DECSRIPTIO Enable You can choose on/off to enable/disable the line. Server type You can choose Default/Broadsoft. Display Name It is showed as Caller ID when making a phone call Username It is a username provided by SIP Server...
  • Page 15 HS108v2 IPPhone SIP Server Server for registration, provided by administrator Secondary server When the main server can't work, it also can register in this secondary server. Outbound Proxy Server Put into the address with the outbound proxy server. Secondary Outbound...

  • Page 16: Advanced

    HS108v2 IPPhone 6.2 Advanced ITEM DECSRIPTIO Do Not Disturb Enable/Disable Do Not Disturb Anonymous Call Enable/Disable anonymous call. Anonymous Call Enable/Disable anonymous call rejection. Rejection Use Session Timer Enable/Disable refresh session function. The device will send an Invite packet to refresh the session during a call if it enable.

  • Page 17: 7Programmable Keys

    HS108v2 IPPhone Registered NAT Enable/Disable Registered to NAT UDP Keep-alive The phone periodically sends a UDP packet to keep the port active and to Message avoid the server to shut down the port UDP Keep-alive Default is 30 second. Interval SIP Encryption Enable/Disable SIP encryption.

  • Page 18: Phone Setting

    HS108v2 IPPhone 8 Phone Setting 8.1 Basic ITEM DECSRIPTIO Set Time Mode Include SNTP/SIP Server/Manual SNTP Server You can select in the list or input owner server address. Secondary SNTP server You can select in the list or input owner server address.

  • Page 19: 2Volume Settings

    HS108v2 IPPhone and the total sizes must less than 150k. 8.1.2Volume Settings ITEM DECSRIPTIO Select Country Select the country dial tone. Default is United States. Ring Volume The ring volume default is Lv3, the range is 0~9. Speaker Phone Volume The speaker volume default is Lv5, the range is 1~9.

  • Page 20: Features

    HS108v2 IPPhone 8.2Features 8.2.1VoIP Call Forwarding ITEM DECSRIPTIO Always This feature allows you to forward all incoming calls to another phone number. If Busy This feature allows you to forward an incoming call to another phone number if busy. If No Answer This feature allows you to forward an incoming call to another phone number if no answer.

  • Page 21: 3Hot Line Function

    HS108v2 IPPhone 8.2.3Hot Line Function ITEM DECSRIPTIO Hot Line function When you pick up the handset, it will dial out with the hot number. Hot Number Input the number what you want to. 8.2.4Auto Answer ITEM DECSRIPTIO Auto-answer the coming call, it also can filter a contact group.
  • Page 22 HS108v2 IPPhone www.escene.cn/en/ Escene Communication...

  • Page 23: 7Other Features Settings

    HS108v2 IPPhone 8.2.7Other Features Settings ITEM DECSRIPTI Play Hold Tone Set the time to keep the tone and prompt frequency. DTMF The DTMF transmitted mode, include RFC2833,Inband,SIP Info, Auto Suppress DTMF Display Suppress DTMF display in taking. 100 Reliable Enable/Disable PRACK retransmission.
  • Page 24 HS108v2 IPPhone will be bright when it get message. Play Hangup Tone The tone with hang up in busy. Conference Code The code with conference. Hold Code The code with hold. Conference exit result Conference originator hang up the phone, hang up two ways of it.

  • Page 25: Advanced

    HS108v2 IPPhone 8.3Advanced 8.3.1Audio ITEM DECSRIPTIO Audio Codecs Use the navigation keys to highlight the desired one in the Enabled/Disable Codes list, and press the to move to the other list. Jitter Buffer The type of Jitter Buffer is Adaptive or Fixed, default is adaptive.

  • Page 26: 2Ring

    HS108v2 IPPhone 8.3.2Ring ITEM DECSRIPTIO Ring Internal ringer text This Internal ringer text enables the server to distinguish between internal and external rings. The trace head-info must include "Alert-Info: ;info=". Internal ringer file According to the defined Internal ring text, play the corresponding Internal Ring File.

  • Page 27: 3Dial Plan

    HS108v2 IPPhone 8.3.3Dial Plan ITEM DECSRIPTIO Send Key Select the default send key mode you want to use. Dial Length Enable this feature will limit the dial length. Default is 25. No Dial Timeout Setting the range with no dial timeout, default is 5.

  • Page 28: 4Blf Setting

    HS108v2 IPPhone download the specific document. HTTP://www.escene.cn/en. 8.3.4BLF Setting You can add and set the BLF group here. 9 Phone Maintenance 9.1 Basic NOTES: Don't cut off the electricity or network cable when doing upgrade in the below ways! 9.1.1 HTTP Upgrade You can upgrade the software, kernel and configuration etc.

  • Page 29: Ftp Upgrade

    HS108v2 IPPhone When using HTTP upgrade, you can set several parameters as follow: ITEM DECSRIPTION Select a File Browse the software/kernel/configuration file which you need to upgrade from HTTP Software Upgrade Used for upgrading the software of the phone Kernel Upgrade...

  • Page 30: Tftp Upgrade

    HS108v2 IPPhone Configuration Used for updating/backup to update/backup the configure file of the phone NOTES: It's not necessary to input filename when doing backup Configuration. 9.1.3 TFTP Upgrade You can upgrade the software, kernel and configure files by TFTP. When use TFTP upgrade, you can set several parameters as follow:...

  • Page 31: Reboot

    HS108v2 IPPhone 9.1.5 Reboot You can use reboot option to reboot the phone. 9.2 Advanced 9.2.1 Log This feature is use for the administrator to managing the equipment, like debugging, SIP etc,. If you need to catch a debugging Level, you need to setup on this interface.
  • Page 32 HS108v2 IPPhone When using auto provision, you can set several parameters as follow: ITEM DECSRIPTION PNP active The request to the server is to obtain a support URL for upgrade. PNP Interval (minutes) PNP Interval Time. Auto Provision You can enable/disable auto provision by select on/off...

  • Page 33: Security

    HS108v2 IPPhone Auto Download Software Used for auto download software from server Auto Download Kernel Used for auto download kernel from server Auto Download Config File Used for auto download config file from server Auto Download 3CX Config Used for auto download 3CX config file from server...

  • Page 34: Ip Strategy

    HS108v2 IPPhone 10.3IP Strategy Add or remove IP strategy. 11 WEB Other Settings or Information - Appendix 11.1 WEB User In the upper right corner of the website page, you can switch the user. 11.2 Multi-Language In the upper right corner of the website page, you can select the language in the below list.

  • Page 35: Note Tips

    HS108v2 IPPhone 11.3 Note Tips In the right middle of the website page, there is a Note tips in every function page. Hope it can help you to know something about that. www.escene.cn/en/ Escene Communication...
