3. Back Panel

5) Outputs. Connect the YOUNG DSD to your amplifier/preamplifier with balanced
inputs using balanced cables terminated with three-pole XLR connectors. Should
your amplifier only be provided with single-ended inputs, you may insert the stock
high quality adaptors into the YOUNG DSD outputs and then connect the YOUNG DSD to
the amplifier using coaxial interconnect terminated with RCA plugs. The YOUNG DSD
is provided with Gold-plated male XLR sockets.
NOTE: Ground on pin 1, send (hot) on pin 2, return (cold) on pin 3. If your
amplifier requires hot on pin 3 and cold on pin 2, the connection will be
inverting. In this case the absolute phase can be obtained using the "phase"
feature of the YOUNG DSD YOUNG DSD (please refer to chapter 7 for more details). YOUNG DSD YOUNG DSD

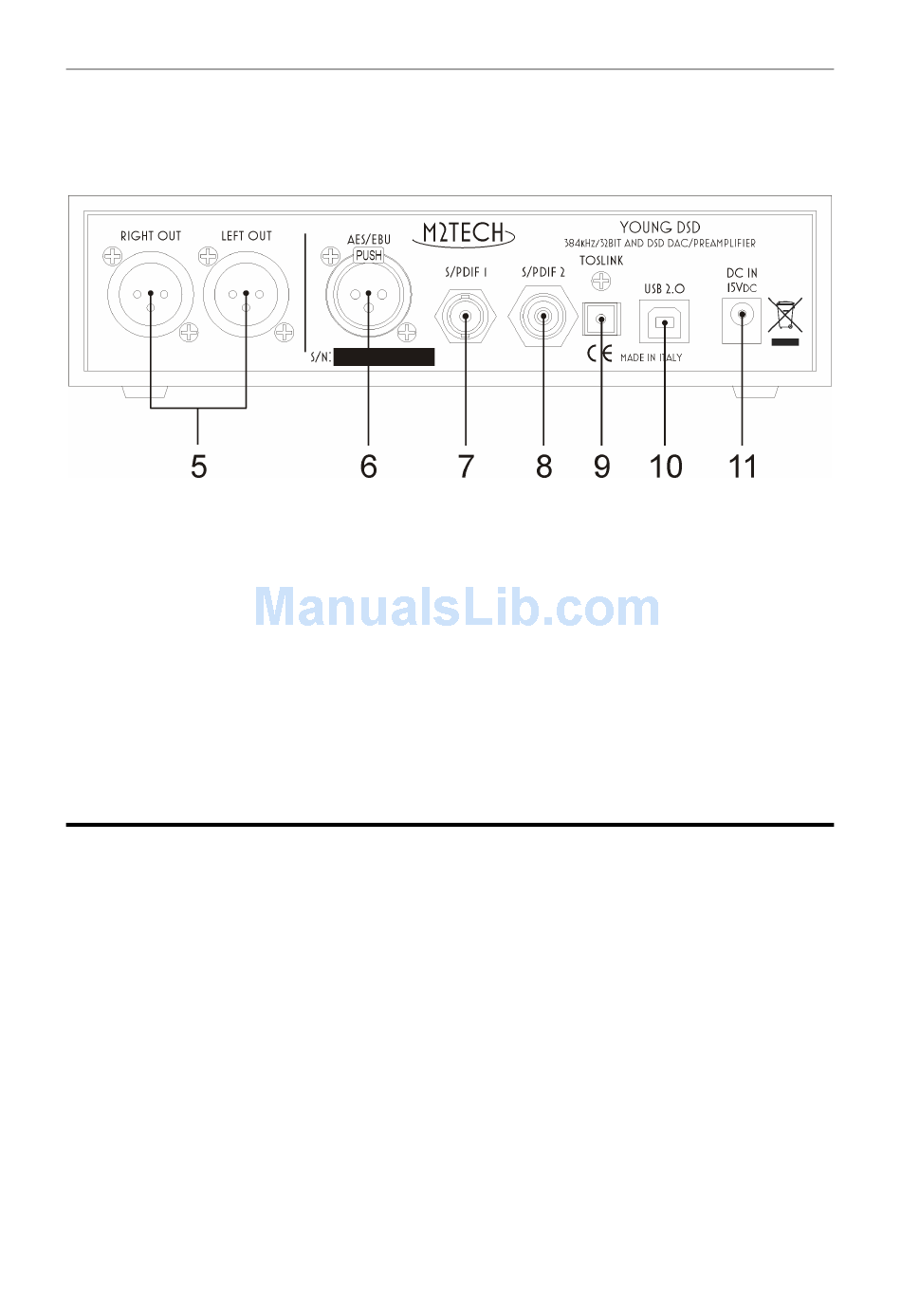

Figure 2
13
