• Selectivity (typical) :
FM/AM 6 kHz/–6 dB
FM/AM 15 kHz/–6 dB
WFM/FM/AM 50 kHz/–6 dB
WFM 230 kHz/–6 dB
• Max. audio output : 0.2 W (monaural)
0.1 W
(at 10% distortion with an 8
• Antenna connector : BNC (50 )
• RS-232C connector : D-sub 9-pin (female)
• Ext. speaker connector : 3-conductor 3.5 (d) mm (
4–8
• Dimensions (projections not included):
131(W) 33.5(H) 154.5(D) mm
5
• Weight : approx. 0.5 kg; 1 lb 2 oz.
All stated specifications are subject to change without
notice or obligation.
2 (stereo)
load)
1
⁄ )/
8
5 5 3
⁄ (W) 1 ⁄ (H) 6 ⁄ (D) in
32 16 32

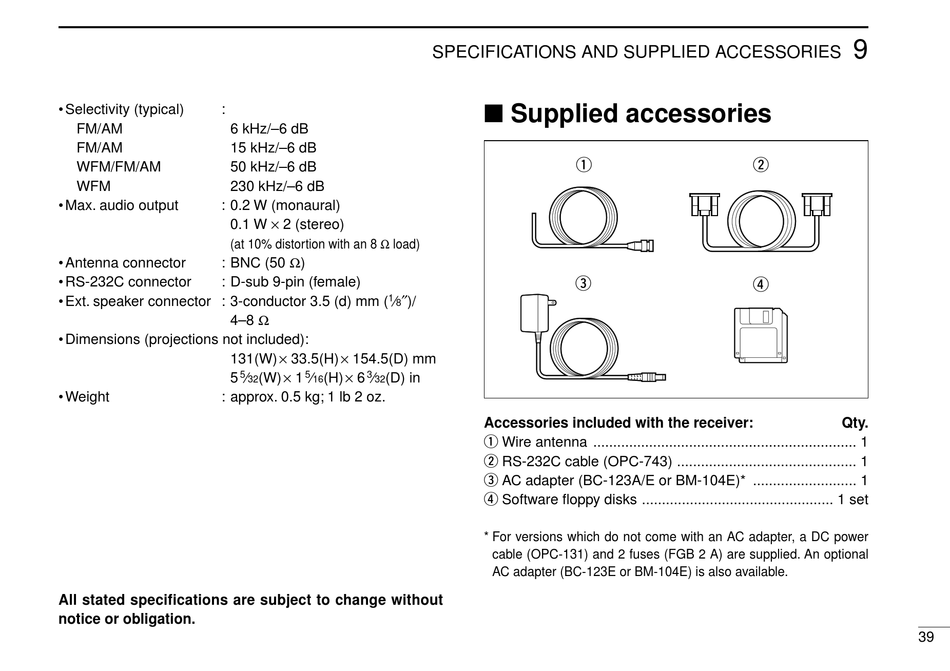

SPECIFICATIONS AND SUPPLIED ACCESSORIES

Supplied accessories

q
e
Accessories included with the receiver:
q Wire antenna .................................................................. 1
w RS-232C cable (OPC-743) ............................................. 1
e AC adapter (BC-123A/E or BM-104E)* .......................... 1
r Software floppy disks ................................................ 1 set
* For versions which do not come with an AC adapter, a DC power
cable (OPC-131) and 2 fuses (FGB 2 A) are supplied. An optional
AC adapter (BC-123E or BM-104E) is also available.
9
w
r
Qty.
