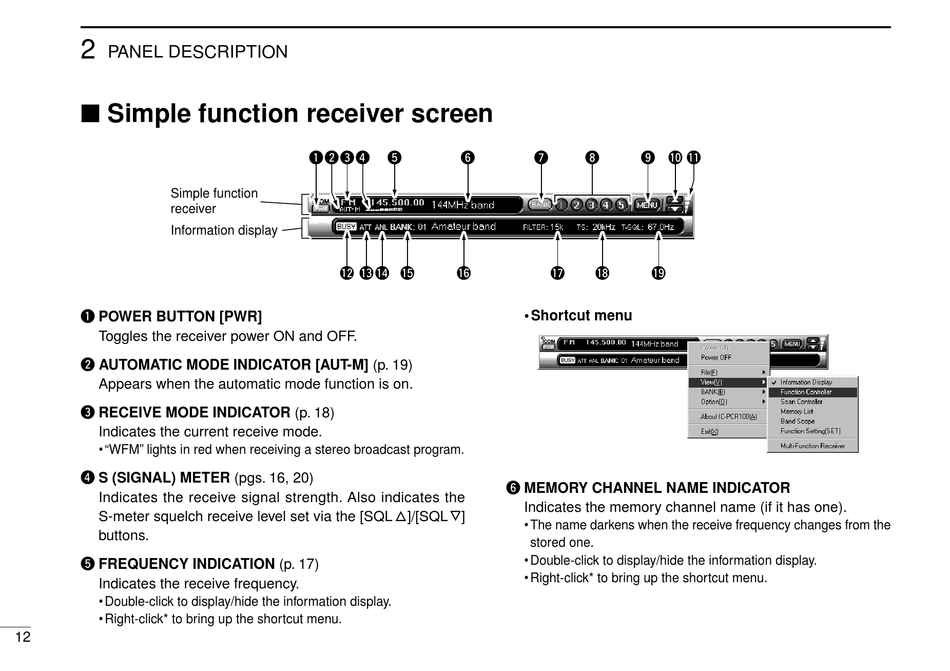

PANEL DESCRIPTION

Simple function receiver screen

Simple function
receiver
Information display
q POWER BUTTON [PWR]
Toggles the receiver power ON and OFF.
w AUTOMATIC MODE INDICATOR [AUT-M] (p. 19)
Appears when the automatic mode function is on.
e RECEIVE MODE INDICATOR (p. 18)
Indicates the current receive mode.
• "WFM" lights in red when receiving a stereo broadcast program.
r S (SIGNAL) METER (pgs. 16, 20)
Indicates the receive signal strength. Also indicates the
S-meter squelch receive level set via the [SQL J]/[SQL K]
buttons.
t FREQUENCY INDICATION (p. 17)
Indicates the receive frequency.
• Double-click to display/hide the information display.
• Right-click* to bring up the shortcut menu.
12
qwer t y
!2 !3 !4 !5 !6
u i o !0 !1
!7 !8 !9
• Shortcut menu
y MEMORY CHANNEL NAME INDICATOR
Indicates the memory channel name (if it has one).
• The name darkens when the receive frequency changes from the
stored one.
• Double-click to display/hide the information display.
• Right-click* to bring up the shortcut menu.
