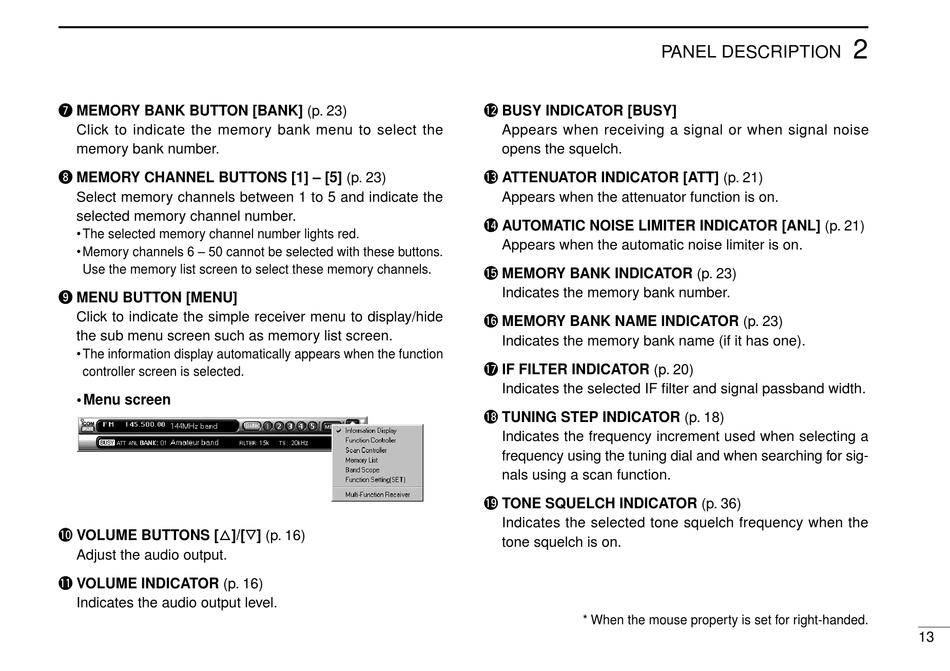

u MEMORY BANK BUTTON [BANK] (p. 23)
Click to indicate the memory bank menu to select the
memory bank number.
i MEMORY CHANNEL BUTTONS [1] – [5] (p. 23)
Select memory channels between 1 to 5 and indicate the
selected memory channel number.
• The selected memory channel number lights red.
• Memory channels 6 – 50 cannot be selected with these buttons.
Use the memory list screen to select these memory channels.
o MENU BUTTON [MENU]
Click to indicate the simple receiver menu to display/hide
the sub menu screen such as memory list screen.
• The information display automatically appears when the function
controller screen is selected.
• Menu screen
!0 VOLUME BUTTONS [J]/[K] (p. 16)
Adjust the audio output.
!1 VOLUME INDICATOR (p. 16)
Indicates the audio output level.
PANEL DESCRIPTION
!2 BUSY INDICATOR [BUSY]
Appears when receiving a signal or when signal noise
opens the squelch.
!3 ATTENUATOR INDICATOR [ATT] (p. 21)
Appears when the attenuator function is on.
!4 AUTOMATIC NOISE LIMITER INDICATOR [ANL] (p. 21)
Appears when the automatic noise limiter is on.
!5 MEMORY BANK INDICATOR (p. 23)
Indicates the memory bank number.
!6 MEMORY BANK NAME INDICATOR (p. 23)
Indicates the memory bank name (if it has one).
!7 IF FILTER INDICATOR (p. 20)
Indicates the selected IF filter and signal passband width.
!8 TUNING STEP INDICATOR (p. 18)
Indicates the frequency increment used when selecting a
frequency using the tuning dial and when searching for sig-
nals using a scan function.
!9 TONE SQUELCH INDICATOR (p. 36)
Indicates the selected tone squelch frequency when the
tone squelch is on.
* When the mouse property is set for right-handed.
